5. Strip back the jacket and/or insulation of the wires just enough to
connect to the power terminal block.
6. Attach the neutral and hot wires to the power terminal by connecting
the neutral wire to the terminal marked “N,” the hot wire to the
terminal marked “H,” as shown in Figure 3–3.
7. Connect the ground wire to the ground terminal marked “G” or .
8. Close the power terminal box.
9. Close and latch the heated enclosure door.
ApplicationofConduitLubricant
To ensure proper installation, SpectraSensors recommends using STL8
lubricant on all conduit screw thread and its tapped opening.
STL8 Screw Thread Lubricant is a lithium based, anti-galling substance with
excellent adhesion that maintains rain-tightness and grounding continuity
between conduit fittings. This lubricant has proven very effective between parts
made of dissimilar metals, and is stable in temperatures from -20
F to +300 F.
1. Holding the fitting piece at one end, generously apply the STL8
lubricant on the male threaded surface (at least five threads wide)
as shown below.
Do not use this lubricant on exposed current-carrying parts.

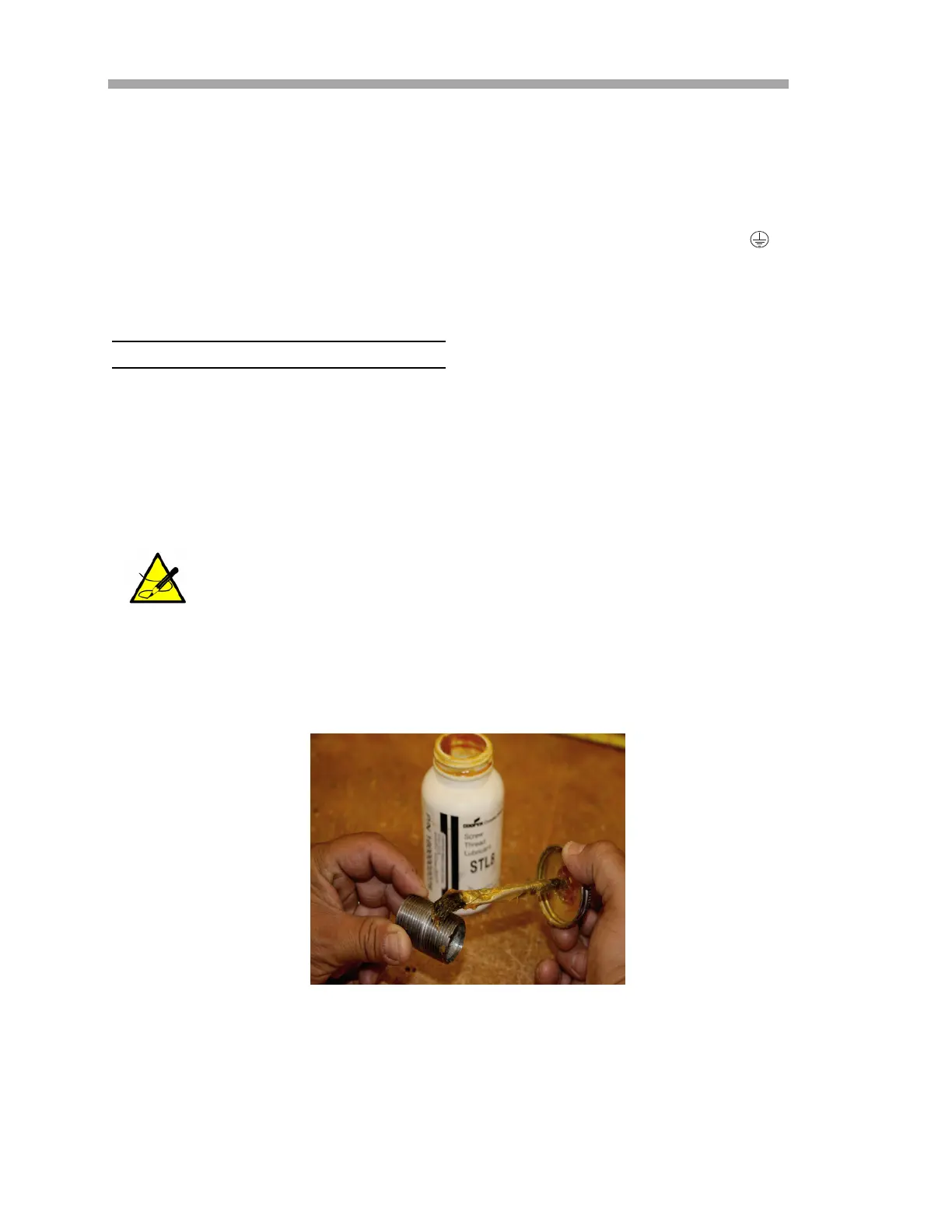

Figure 3–4 Applying conduit lubricant
