SS500e/SS2000e/SS3000e Gas Analyzer
3–8 4900002230 rev. D 2-6-20
Connecting Electrical Power to the Enclosure
Heater
Units with an enclosure heater will have an additional power connection through
a conduit hub located at the bottom left of the enclosure.
Toconnectelectricalpowertotheenclosureheater
1. Open the heated enclosure door. Take care not to disturb anything
inside.
2. Open the power terminal box inside the heated enclosure, as shown in
Figure 3–3.
Hazardous voltage and risk of electric shock. Failure to
properly ground the analyzer may create a high-voltage shock
hazard.
DO NOT connect to the ‘NC’ terminal. This will prevent the
thermostat from functioning and cause the analyzer system to
overheat.

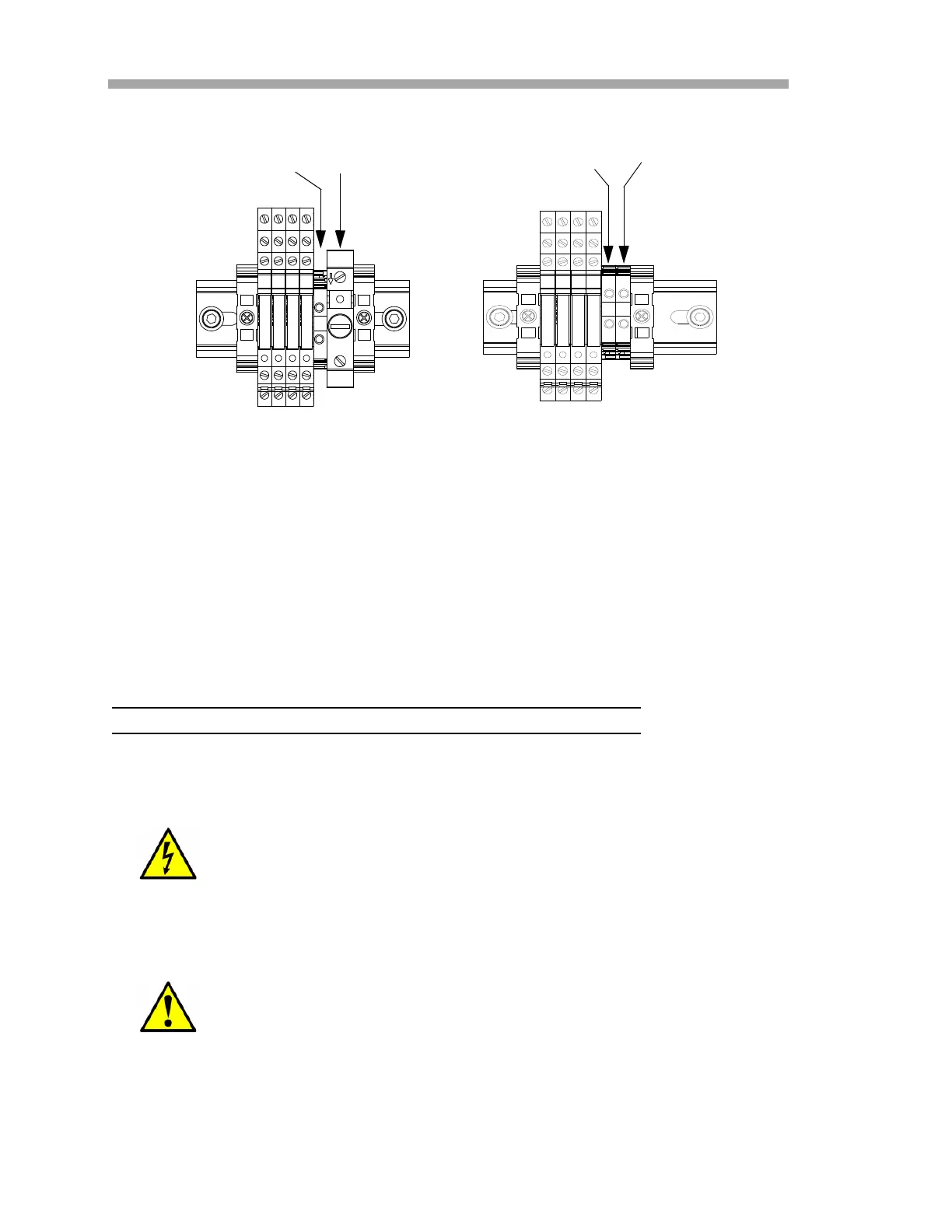

Figure 3–2 AC and DC connection terminal blocks in
electronics enclosure
NEU LINE
—
+
AC TERMINAL
BLOCK
DC TERMINAL
BLOCK
To Next Page
