Endress+Hauser SpectraSensors SS500e User Manual

SS500e/SS2000e/SS3000e Gas Analyzer
3–16 4900002230 rev. D 2-6-20

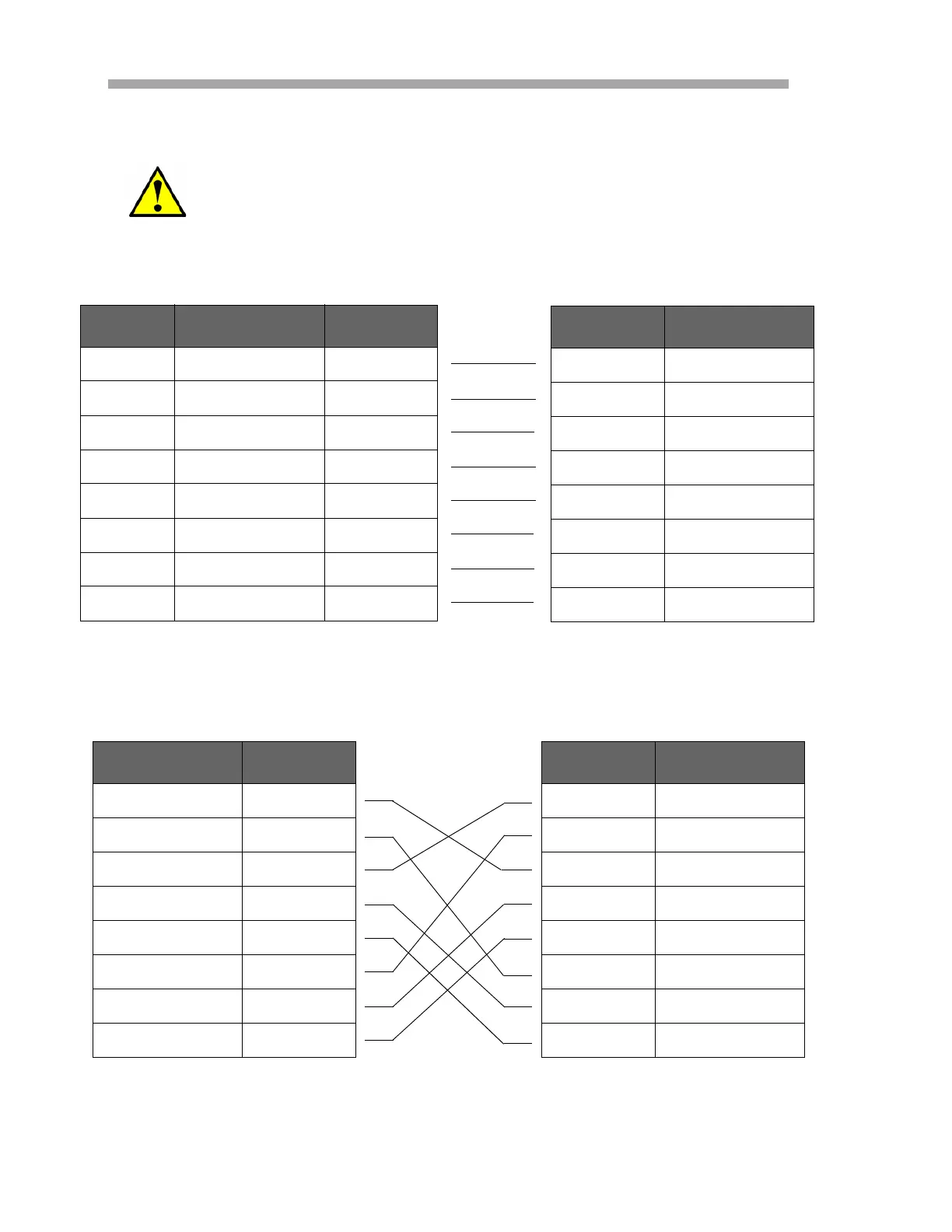

Table 3–5 Standard Ethernet cable RJ-45 pin-out
Table 3–6 Crossover Ethernet cable RJ-45 pin-out
Standard Ethernet cable connection (straight-through) is used to
connect devices of different types (e.g., switch to computer).
Crossover cable is used to connect devices of the same type
(e.g., switch to switch).
Signal Wire Color RJ-45 Pin
TX (+) White-Green 1
TX (-) Green 2
RX (+) White-Orange 3
NC Blue 4
NC White-Blue 5
RX (–) Orange 6
NC White-Brown 7
NC Brown 8
RJ-45 Pin Wire Color
1White-Green
2Green
3White-Orange
4Blue
5White-Blue
6Orange
7White-Brown
8Brown
Wire Color RJ-45 Pin
White-Green 1
Green 2
White-Orange 3
Blue 4
White-Blue 5
Orange 6
White-Brown 7
Brown 8
RJ-45 Pin Wire Color
1White-Green
2Green
3White-Orange
4Blue
5White-Blue
6Orange
7White-Brown
8Brown
