Section 11: Standard and Optional Machine
Features
131

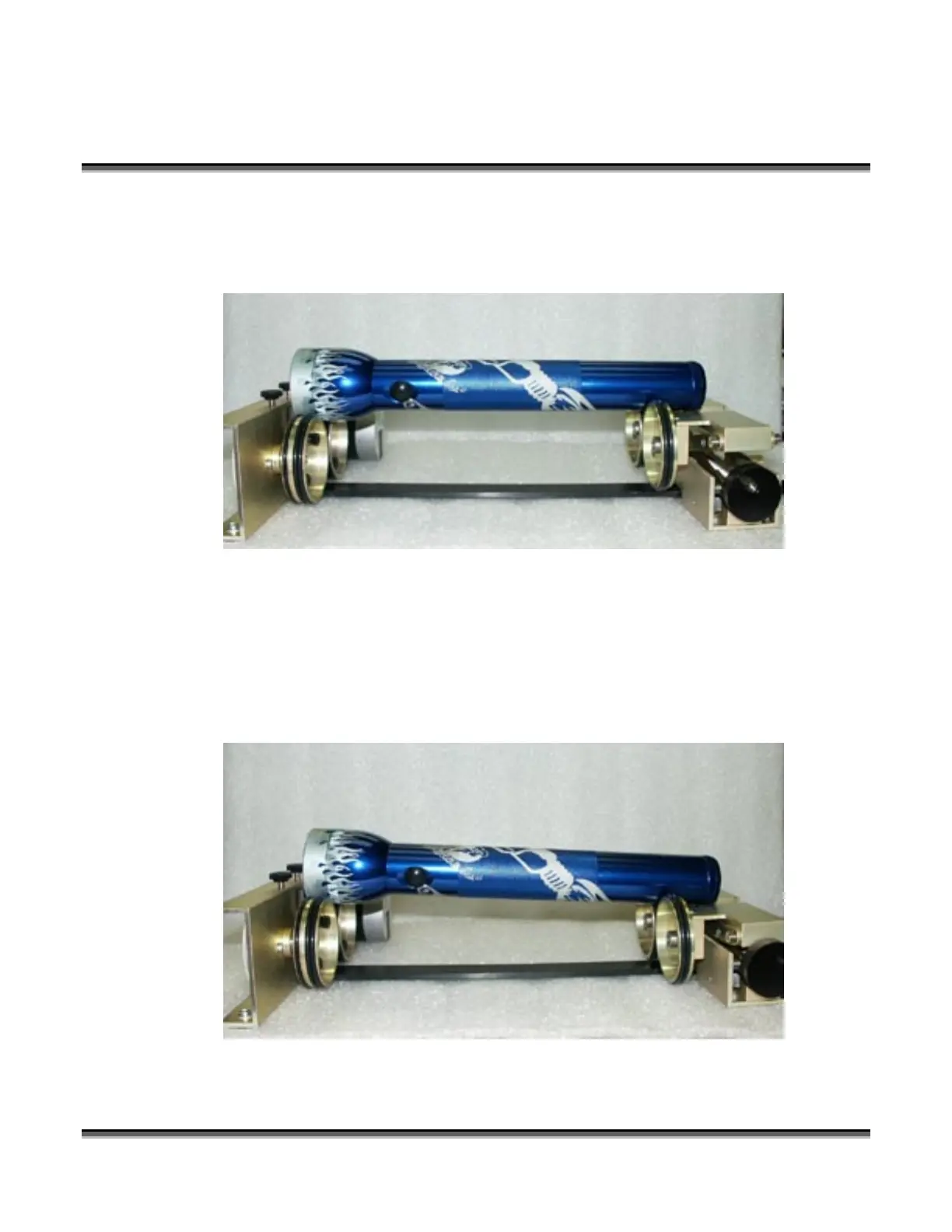

The photo below shows a typical setup for something other than a glass. The larger
diameter is on the left side of the rotary attachment and the right side of the flashlight
has been elevated so that it is resting horizontally.
Correct Setup
The photo below shows the same flashlight at a severe angle to horizontal. If the
flashlight (or other cylindrical object) is not horizontal the laser beam will lose focus
as the carriage head moves across the flashlight, causing the engraving quality on the
right hand side to suffer dramatically.
Incorrect Setup
