Section 1: Getting Started
8

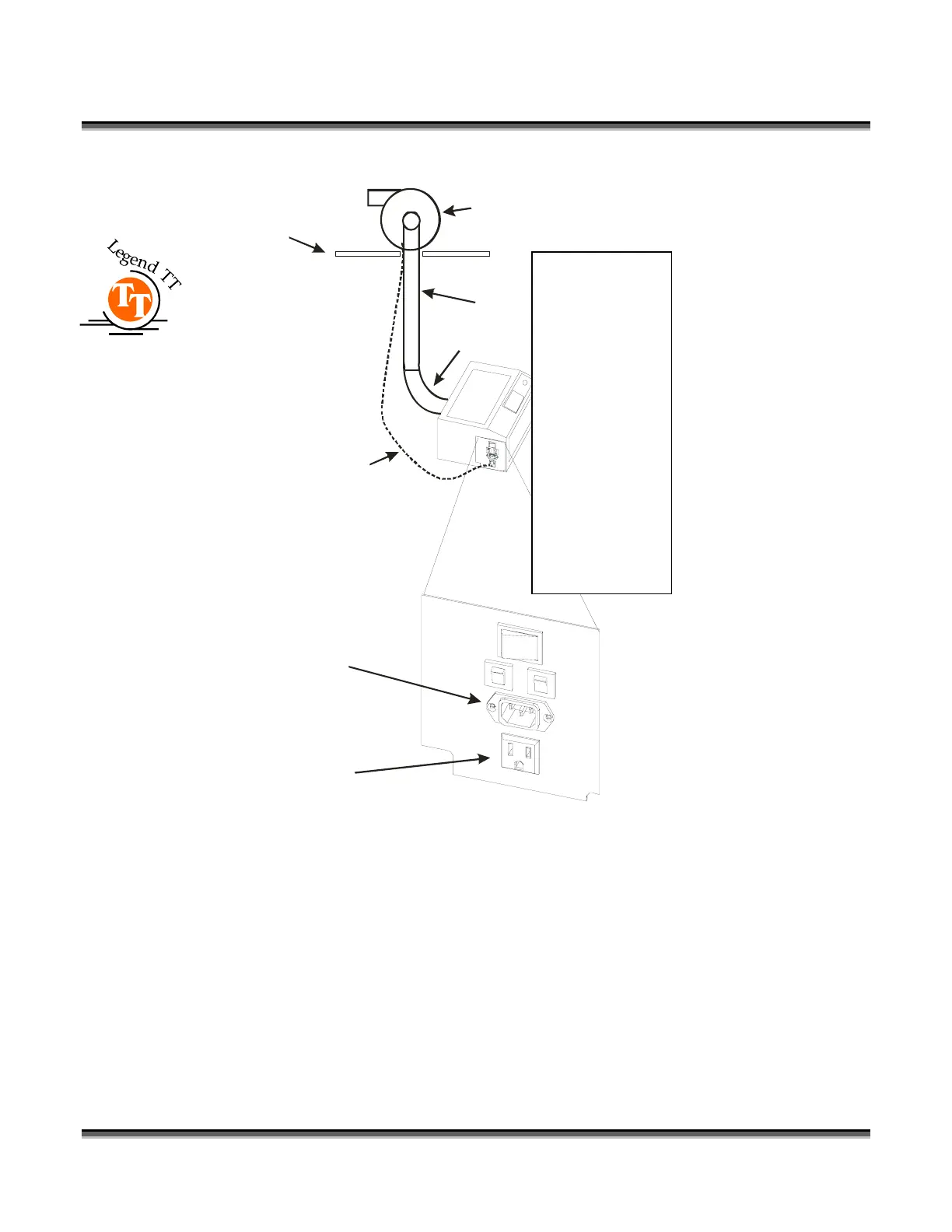

This diagram shows the preferred method for connecting the exhaust blower to the
TT. The TT allows
you to plug your
exhaust blower
directly into the
switched power outlet
that is located on the
left side of the
cabinet. When your
exhaust blower is
turned on and plugged
into this switched
outlet the exhaust
blower is
automatically turned
on when a job starts,
and automatically
turned off 10 seconds
after the job is
complete.
It is not mandatory
that you plug your
exhaust blower into
the switched outlet on
the TT – it’s just the
easiest, most
convenient way of
ensuring that your
exhaust is always
running when your
TT is running.
If your exhaust is not plugged into the switched outlet, make certain that you turn on
the exhaust whenever you operate your TT.
Never run a job on a Legend TT unless the exhaust blower is hooked up and operating properly!
Roof or exterior wall
Exhaust Blower Power Cord
Exhaust Blower
4” Flex Hose
Rigid Duct
Input power from wall
plug (Epilog supplies
the power cord in your
accessories kit).
Switched outlet. Plug the
power cord from the exhaust
blower into this outlet. The output voltage at this outlet
is the same as the input voltage
from your wall plug. Do not plug a 110 volt exhaust blower
into a TT that is plugged in to a 220 volt wall outlet!!
Check your
exhaust system
for leaks.
Most small
leaks can be
remedied with
duct tape.
Do not operate
your laser with
inadequate or
leaking
exhaust.
