4.2.3.4 Wireless LAN Board
 Parts/Components need to be removed in advance:
ADF Unit (Artisan 800/PX800FW/TX800FW only)/Scanner Unit/Upper Left
Housing
/Paper Guide Top Assy/Upper Housing/Hinge/Rear Right FAX Housing/
Right Housing
 Removal procedure
1. Remove the screws (x2) that secure the Wireless LAN Bo
ard, and remove the
Wireless LAN Board from the hooks (x2) of the Base Frame.

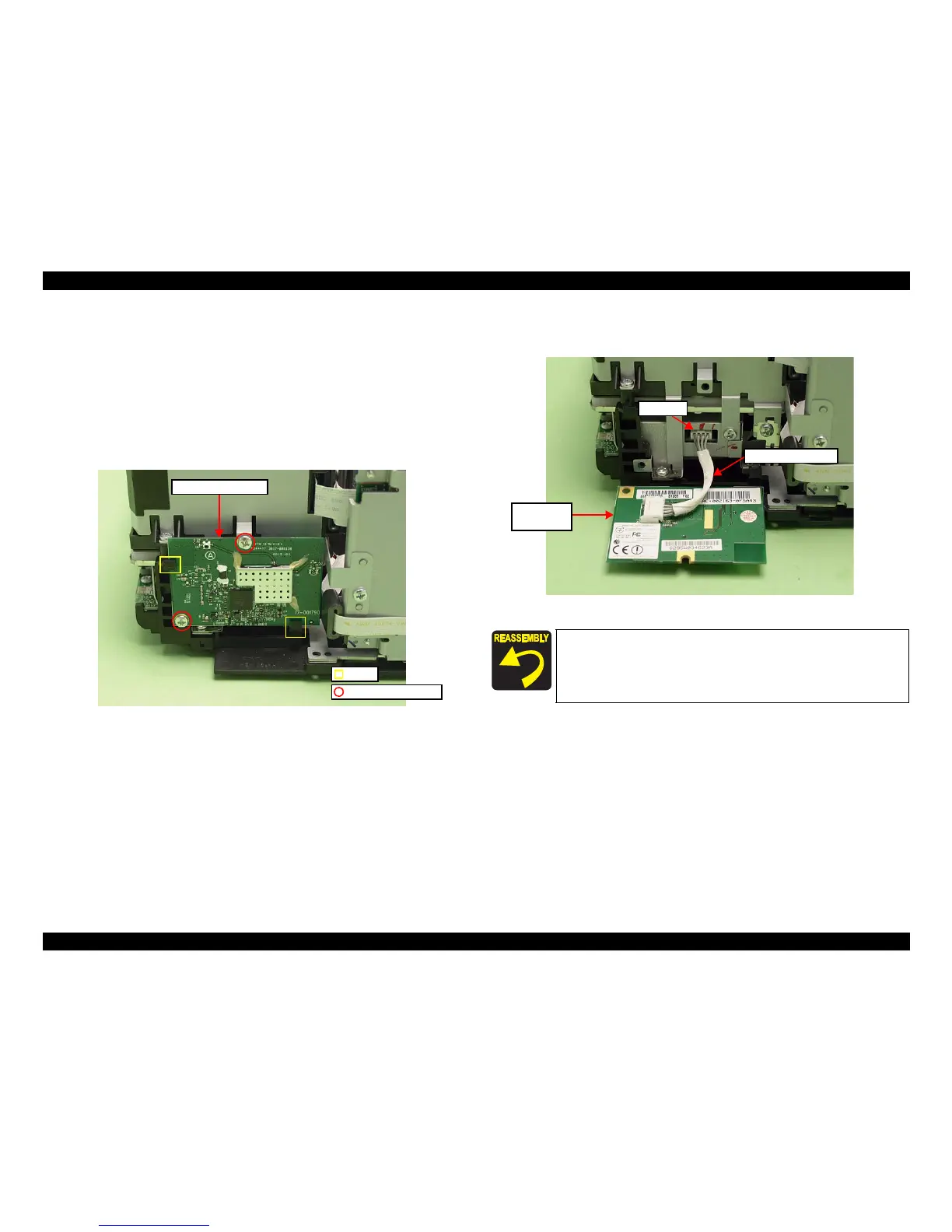

Figure 4-51. Removing the Wireless LAN Board (1)
2. Disconnect the Wireless LAN cable from th
e connector and remove the
Wireless LAN Board.
Figure 4-52. Removing the Wireless LAN Board (2)
Wireless LAN Board
C.B.P. 3x8 (6±1Kgfcm)
Hook
When installing the Wireless LAN Board, align it with the hooks
(x2) of the Base Frame. (See
Fig. 4-51)
Connector
Wireless LAN cable
Wireless LAN
Board
