Epson Artisan 700 - Rear Right Housing (Artisan 700;PX700 W;TX700 W)

Epson Artisan 700/Epson Stylus Photo PX700W/TX700W Revision C
DISASSEMBLY/ASSEMBLY 192
Confidential

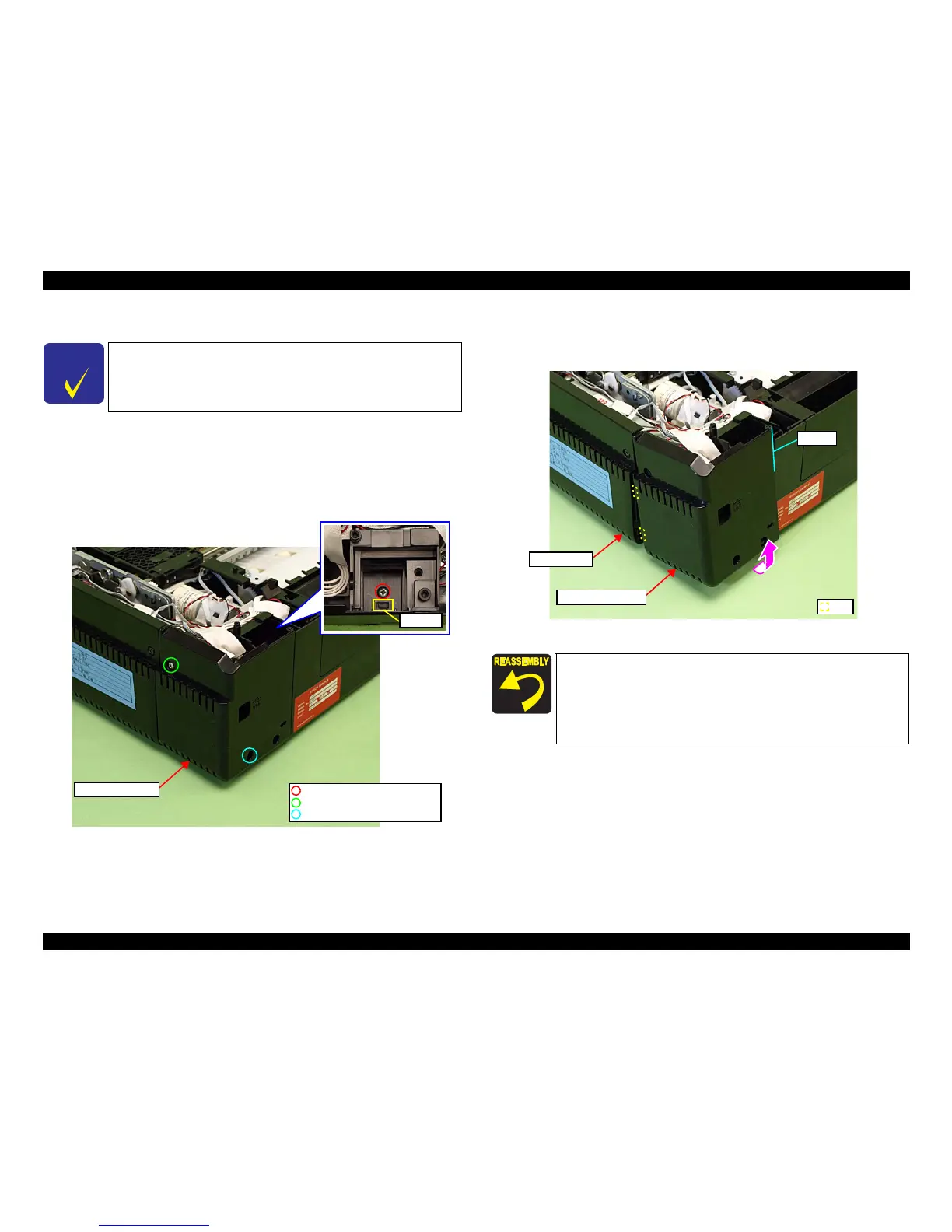

4.3.1.6 Rear Right Housing (Artisan 700/PX700W/TX700W)
 Parts/Components need to be removed in advance:
Scanner Unit/Upper Left Housing/Paper Guide Top Assy/Upper Housing/Hinge
 Removal procedure
1. Remove the screw (x1) that secures the Rear Right Housing.
Figure 4-220. Remov
ing the Rear Right Housing (1)
2. Release the ribs (x2) on the right
side, and also release the point A, then
remove the Rear Right Housing by lifting it in the direction of the arrow. (See
Fig. 4-220.)
Figure 4-221. Removing the Rear Right Housing (2)
l
C H E C K
P O I N T
The disassembly/reassembly procedures for Artisan 800/PX800FW/
TX800FW differ from those of Artisan 700/PX700W/TX700W, see
4.2.2.10 "Rear Right FAX Housing" (p112) for the procedures.
C.B.A. 3x10 (black) (6±1Kgfcm)
C.B.S. 3x6 (black) (8±1Kgfcm)
C.B.P. 3x10 (6±1Kgfcm)
Hook A
Rear Right Housing
 When installing the Rear Right Housing, insert the ribs (x2) of
the Rear Right Housing to inside of the Right Housing. (See Fig.
4-221.)
 When installing the Rear Right Housing, align the point A of
the Rear Right Ho
using with the inside of the Base Frame. (See
Fig. 4-221.)
Rib
Rear Right Housing
Right Housing
Point A
