Epson Artisan 700/Epson Stylus Photo PX700W/TX700W Revision C
DISASSEMBLY/ASSEMBLY Disassembly Procedures 109
Confidential
4.2.2.6 Rear Left Housing
Parts/Components need to be removed in advance:
ADF Unit (Artisan 800/PX800FW/TX800FW only)/Scanner Unit/Upper Left
Housing/
Paper Guide Top Assy/Upper Housing
Removal procedure
1. Remove the screws (x2) that secure the Rear Left Housing and remove the
Rear Left Housing.

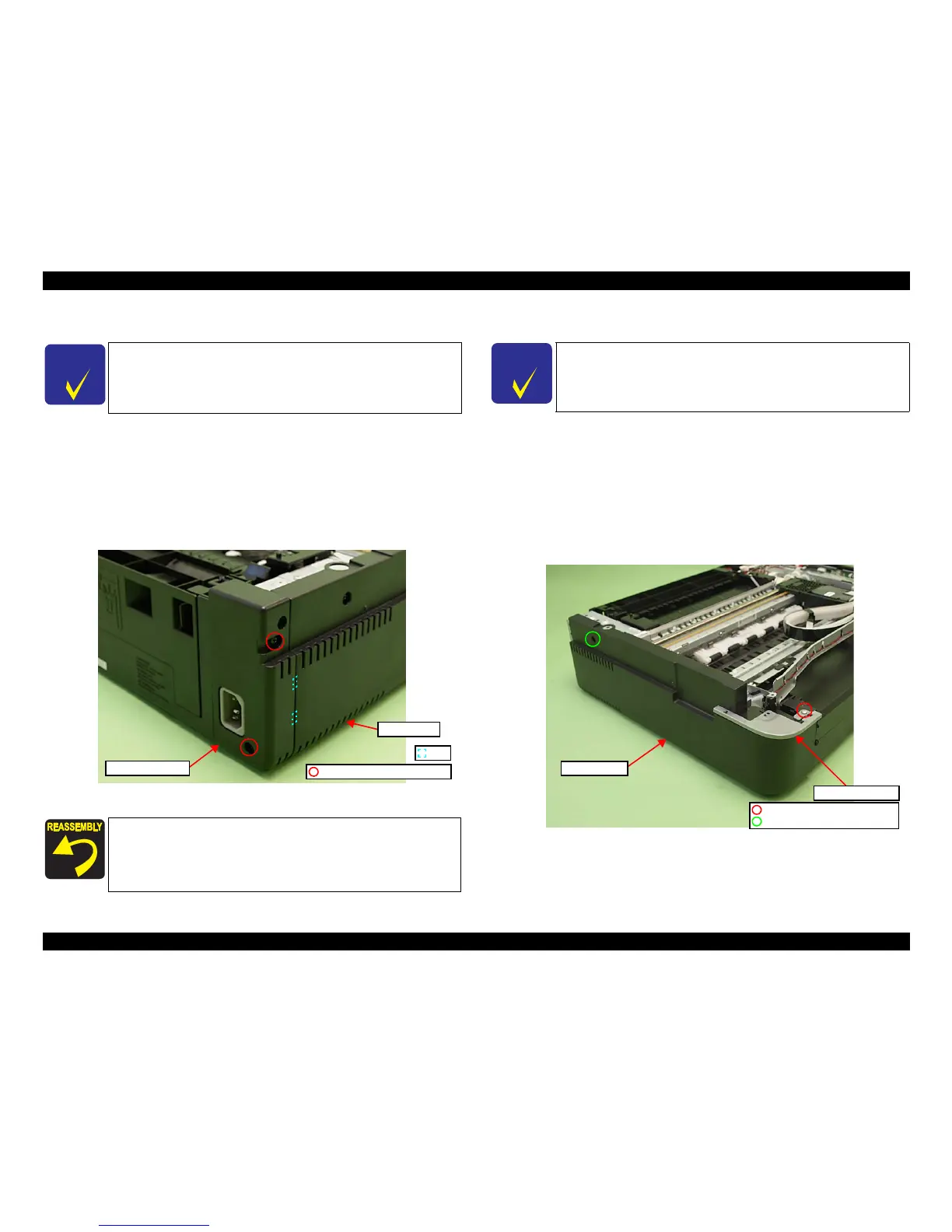

Figure 4-
19. Removing the Rear Left Housing
4.2.2.7 Left Housing / Decoration Belt L
Parts/Components need to be removed in advance:
ADF Unit (Artisan 800/PX800FW/TX800FW only)/Scanner Unit/Upper Left
Housing/Paper Guide To
p Assy/Upper Housing/Rear Left Housing
Removal procedure
1. Remove the screw (x1) that secures the Decoration Belt and remo
ve the
Decoration Belt from the Left Housing. (See Fig. 4-20.)
2. Remove the screw (x1) that secures the Left Housing.
Figure 4-20. Removing
the Left Housing / Decoration Belt L (1)
C H E C K
P O I N T
The disassembly/reassembly procedures of Artisan 700/PX700W/
TX700W .
See 4.3.1.4 "Rear Left Housing (Artisan 700/PX700W/TX700W)"
(p190) for the procedures.
When installing the Rear Left Housing, insert the ribs (x2) of the
Rear Left Housing to the inside of the Left Housing. (See
Fig. 4-19.)
Rib
Left Housing
Rear Left Housing
C.B.A. 3x8 (black) (6±1Kgfcm)
C H E C K
P O I N T
The disassembly/reassembly procedures of Artisan 700/PX700W/
TX700W
See 4.3.1.5 "Left Housing/Decoration Belt L (Artisan 700/
PX700W/
TX700W)" (p191) for the procedures.
C.B.A. 3x8 (black) (6±1Kgfcm)
C.B.P. 3x10 (6±1Kgfcm)
Decoration Belt
Left Housing
