Epson Artisan 700 - Rear Right FAX Housing

Epson Artisan 700/Epson Stylus Photo PX700W/TX700W Revision C
DISASSEMBLY/ASSEMBLY Disassembly Procedures 112
Confidential
4.2.2.10 Rear Right FAX Housing
 Parts/Components need to be removed in advance:
ADF Unit (Artisan 800/PX800FW/TX800FW only)/Scanner Unit/Upper Left
Housing/P
aper Guide Top Assy/Upper Housing/Hinge
 Removal procedure
1. Remove the screws (x3) that secure the Rear Right FAX Housing.

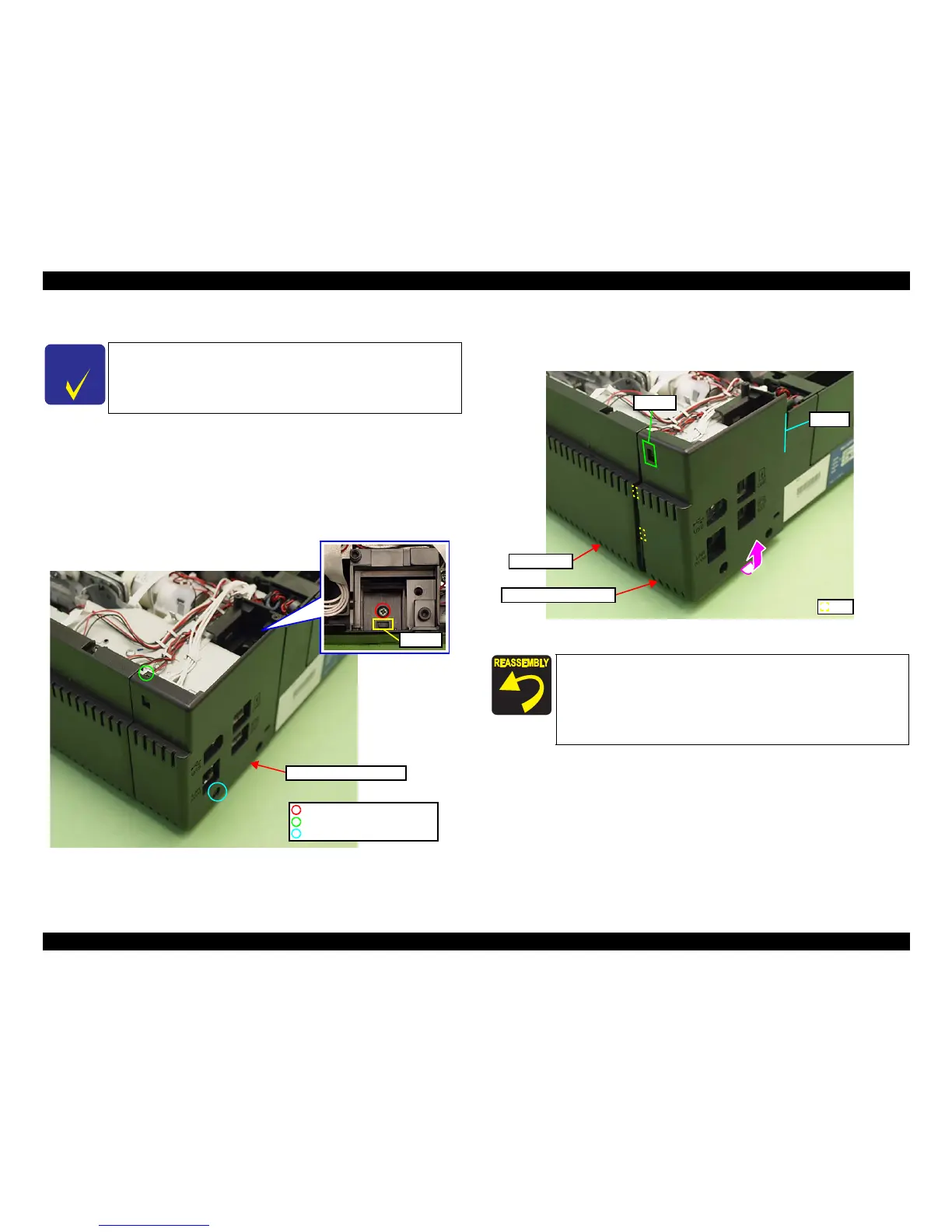

Figure 4-26. Removi
ng the Rear Right FAX Housing (1)
2. Release the ri
bs (x2) and hook B
on the right side, and also release the point
A, then remove the Rear Right FAX Housing by lifting it in the direction of
the arrow. (See Fig. 4-26, Fig. 4-27.)
Figure 4-27. Removing the Rear Right FAX Housing (2)
C H E C K
P O I N T
The disassembly/reassembly procedures of Artisan 700/PX700W/
TX700W
See 4.3.1.6 "Rear Right Housing (Artisan 700/PX700W/TX700W)"
(p192) for the procedures.
C.B.A. 3x8 (black) (6±1Kgfcm)
C.B.S. 3x6 (black) (8±1Kgfcm)
C.B.P. 3x10 (6±1Kgfcm)
Hook A
Rear Right FAX Housing
 When installing the Rear Right FAX Housing, insert the ribs
(x2) of the Rear Right FAX Housing to the inside of the Right
Housing. (See Fig. 4-27.)
 When installing the Rear Right FAX Housing, align the point A
of the Rear Right FAX Housing with the inside of the Base
Frame. (See Fig. 4-27.)
Rib
Rear Right FAX Housing
Right Housing
Point A
Hook B
