Epson Artisan 700 - Upper Housing

Epson Artisan 700/Epson Stylus Photo PX700W/TX700W Revision C
DISASSEMBLY/ASSEMBLY Disassembly Procedures 107
Confidential
4.2.2.5 Upper Housing
 Parts/Components need to be removed in advance:
ADF Unit (Artisan 800/PX800FW/TX800FW only)/Scanner Unit/Upper Left
Housing
/Paper Guide Top Assy
 Removal procedure

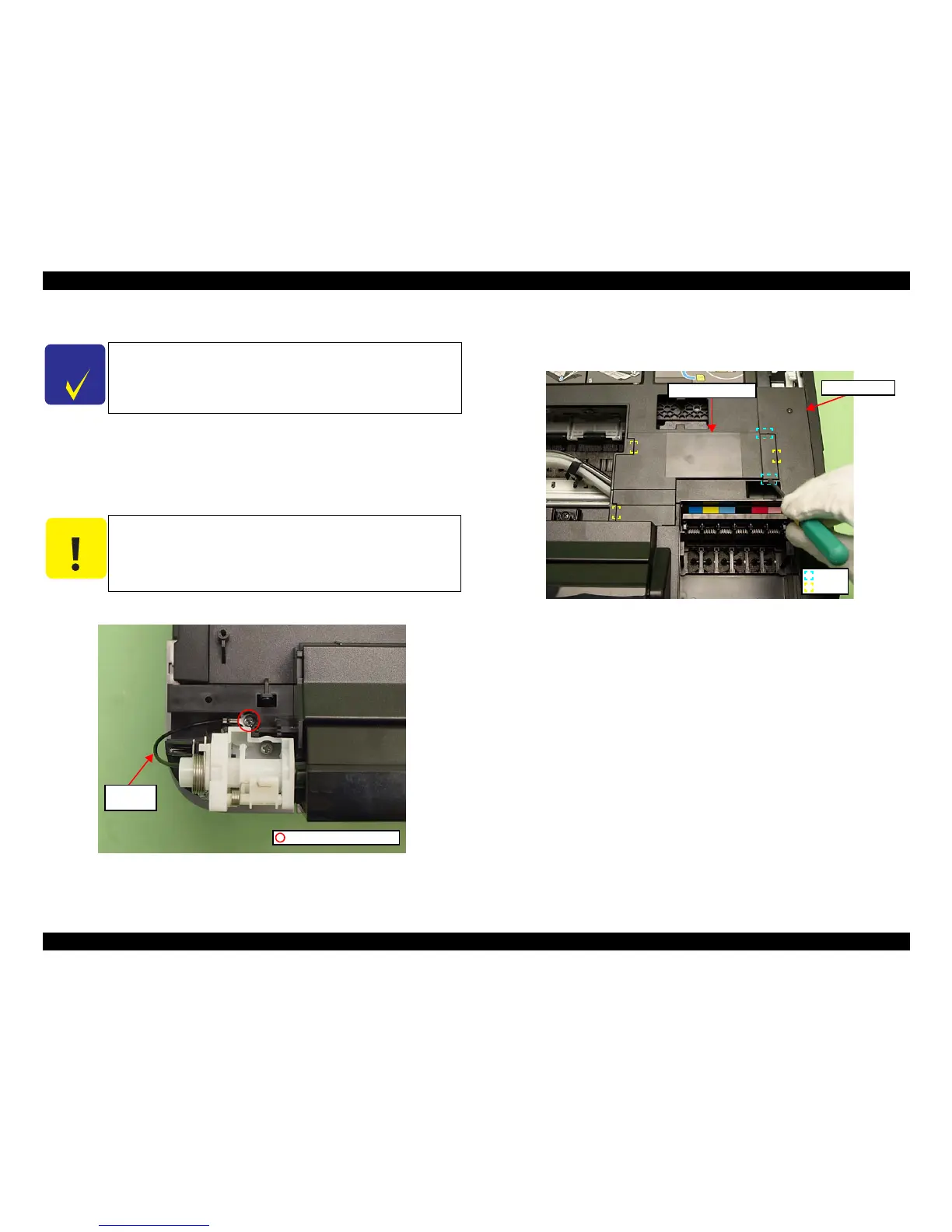

1. Remove the screw (x1) and release the Grounding Wire.
Figure 4-15.
Releasing the Grounding Wire
2. Release the hooks (
x2) and
ribs (x3) of the Front Harness Cover with the
flathead screwdriver, and remove the Front Harness Cover from the Upper
Housing.
Figure 4-16. Removing the Upper Housing (1)
C H E C K
P O I N T
The disassembly/reassembly procedures of Artisan 700/PX700W/
TX700W differ from those of Artisan 800/PX800FW/TX800FW.
See 4.3.1.3 "Upper Housing (Artisan 700/PX700W/TX700
W)"
(p188) for the procedures.
C A U T I O N
The Grounding Wire is attached to the frame with a screw. Be
careful not to deform the Frame when removing the screw.
C.B.S. 3x6 (8±1Kgfcm)
Grounding
Wire
Upper Housing
Hook
Rib
Front Harness Cover
