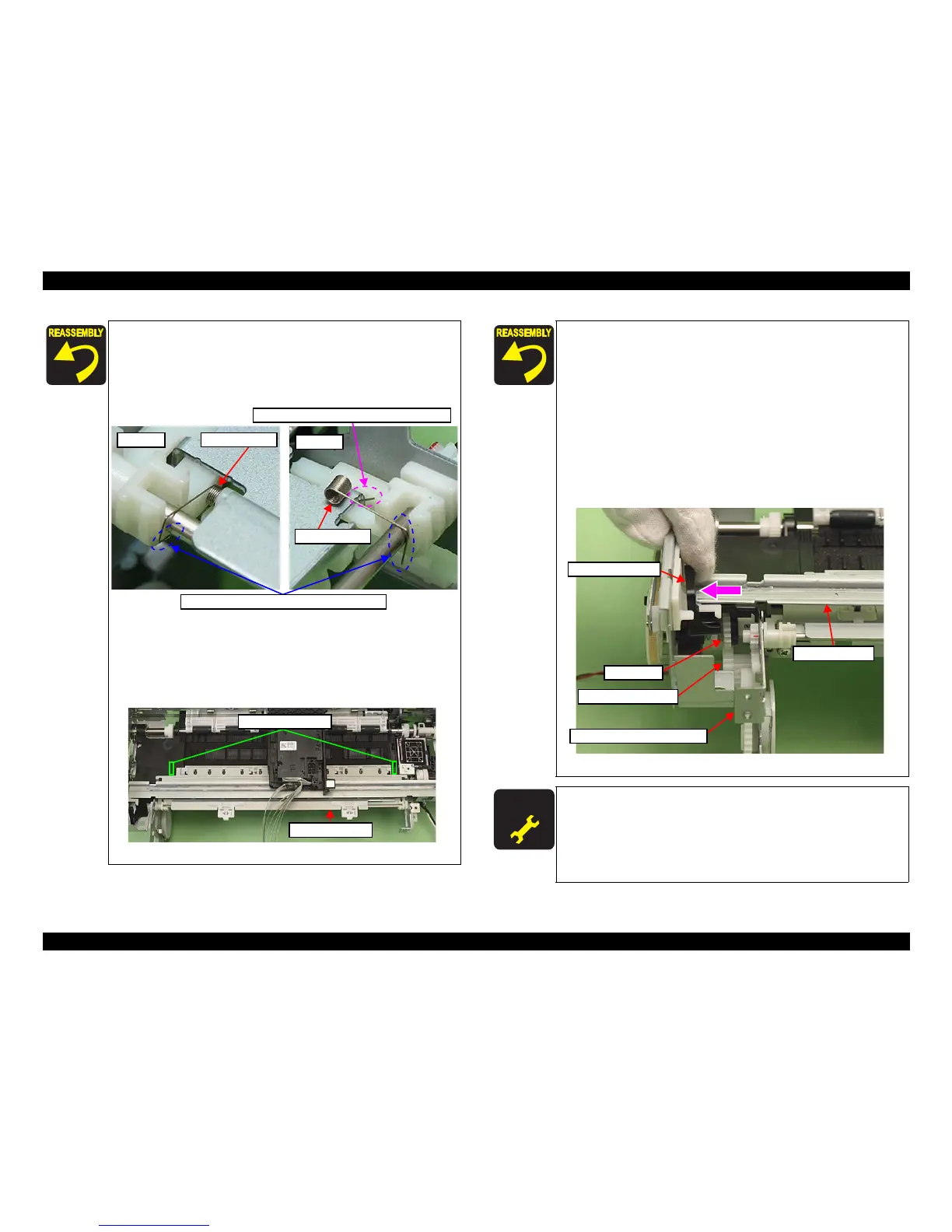

 Align the dowels (x2) of the EJ Release Frame Assy L with the
positioning holes (x2) of the Main Frame. (See Fig. 4-113.)
 Make sure to attach the grounding springs (x2) of the EJ
Frame Assy securely
to the EJ Frame Shaft. (See Fig. 4-112,
Fig. 4-114.)
Figure 4-114. Attaching the
grounding spring
 Alig
n the dowel (x1) of the EJ Release Frame Assy R with the
position
ing hole (x1) of the Main Frame. (SeeFig. 4-110.)
 When attaching the Spur Gear A, insert the protrusion of the
EJ Frame Assy to
the hole of the Paper Guide Front Assy.
Figure 4-115. Installing the EJ Frame Assy
Grounding spring
Left side
Grounding spring
Right side
Attach the springs’ ends on to the EJ Frame Shaft
Attach the spring’s end on to the EJ Frame Assy
Protrusions and holes
EJ Frame Assy
 After installing the EJ Release Frame Assy L, follow the
procedure below to check the movement of the EJ Release
Trigger.
1. Rotate the EJ Roller counterclockwise as seen from the left
side, and make the EJ Release Trigger s
tay on the CR
Guide Plate.
2. Lift the CR Guide Plate slightly and push
the EJ Release
Trigger to the 80 digit side.
3. Make sure to engage the Spur Gear of the EJ Release
Trigger properly with the Co
mbination Gear of the EJ
Release Frame Assy L, and check if the drive force of the
PF Motor transmits up to the EJ Frame Assy.
Figure 4-116. Check for EJ Release Trigger movement
A D J U S T M E N T
R E Q U I R E D
 After removing the EJ Frame Assy/EJ Release Frame Assy L/
R, make the specified adjustments. (See Chapter 5
"ADJUSTMENT".)
 After replacing the EJ Frame Assy/EJ Release Frame Assy L/
R, be sure to perform the required lubrication. (See Chapter 6
"MAINTENANCE"
.)
CR Guide Plate
Combination Gear
Spur Gear
EJ Release Trigger
EJ Release Frame Left Assy
