Epson Artisan 700 / Epson Stylus Photo PX700W / TX700W Revision C
OPERATING PRINCIPLES Overview 50
Confidential

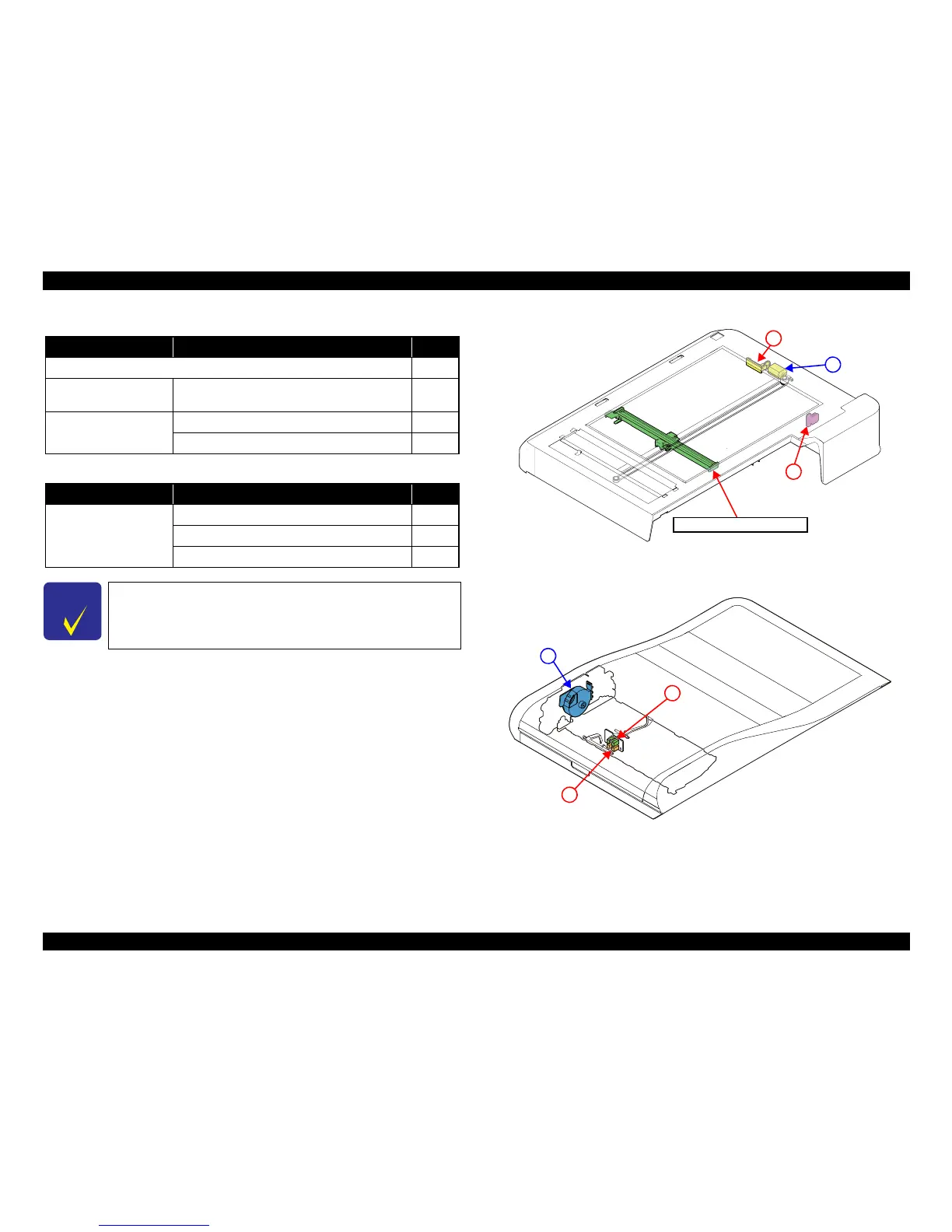

Figure 2-4. Motors & Sensors (Scanner)
Figure 2-5. Motors & Sensors (ADF)
Table 2-2. Motors & Sensors (Scanner)
Name Motors & Sensors name #
Scanner Carriage Unit
---
Open/close detection
mechanism
Cover Open Sensor
9
Drive section of Scanner
Carriage mech
anism
Scanner Motor
D
Scanner CR Encoder
10
Table 2-3. Motors & Sensors (ADF)
Name Motors & Sensors name #
Paper feeding mechanism
ADF Motor
E
ADF DOC Sensor
11
ADF PE Sensor
12
C H E C K
P O I N T
See “ 3.2.1 Motor and Sensor Troubleshooting ” (p.55) for the each
motor and sensor specification.
9
D
10
Scanner Carriage Unit
11
12
E
