137

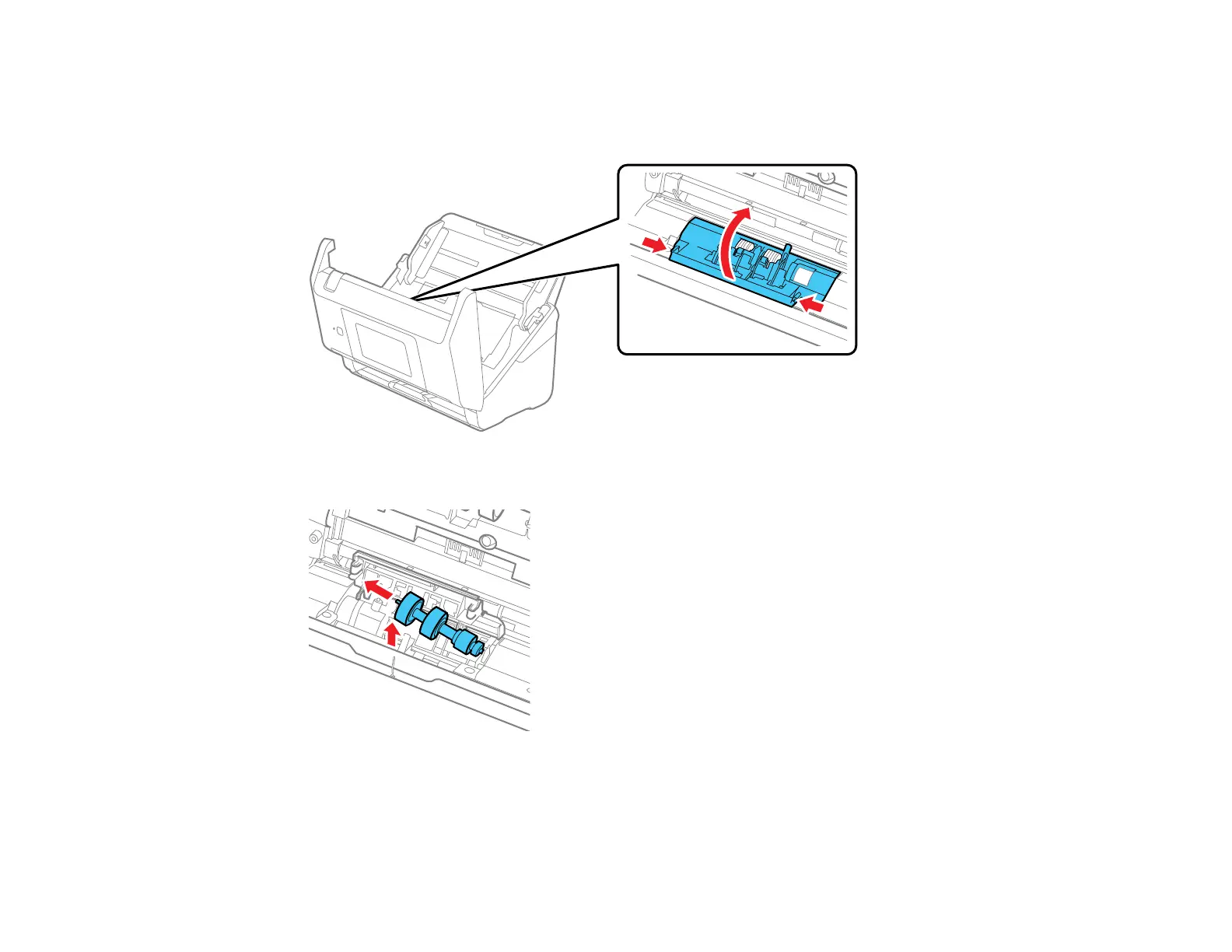

7. Squeeze the tabs on the sides of the separation roller cover and open the cover.

Caution: Be careful not to apply too much force when opening the cover.

8. Slide the separation roller to the left and remove it.
