Carriage
Timing Belt

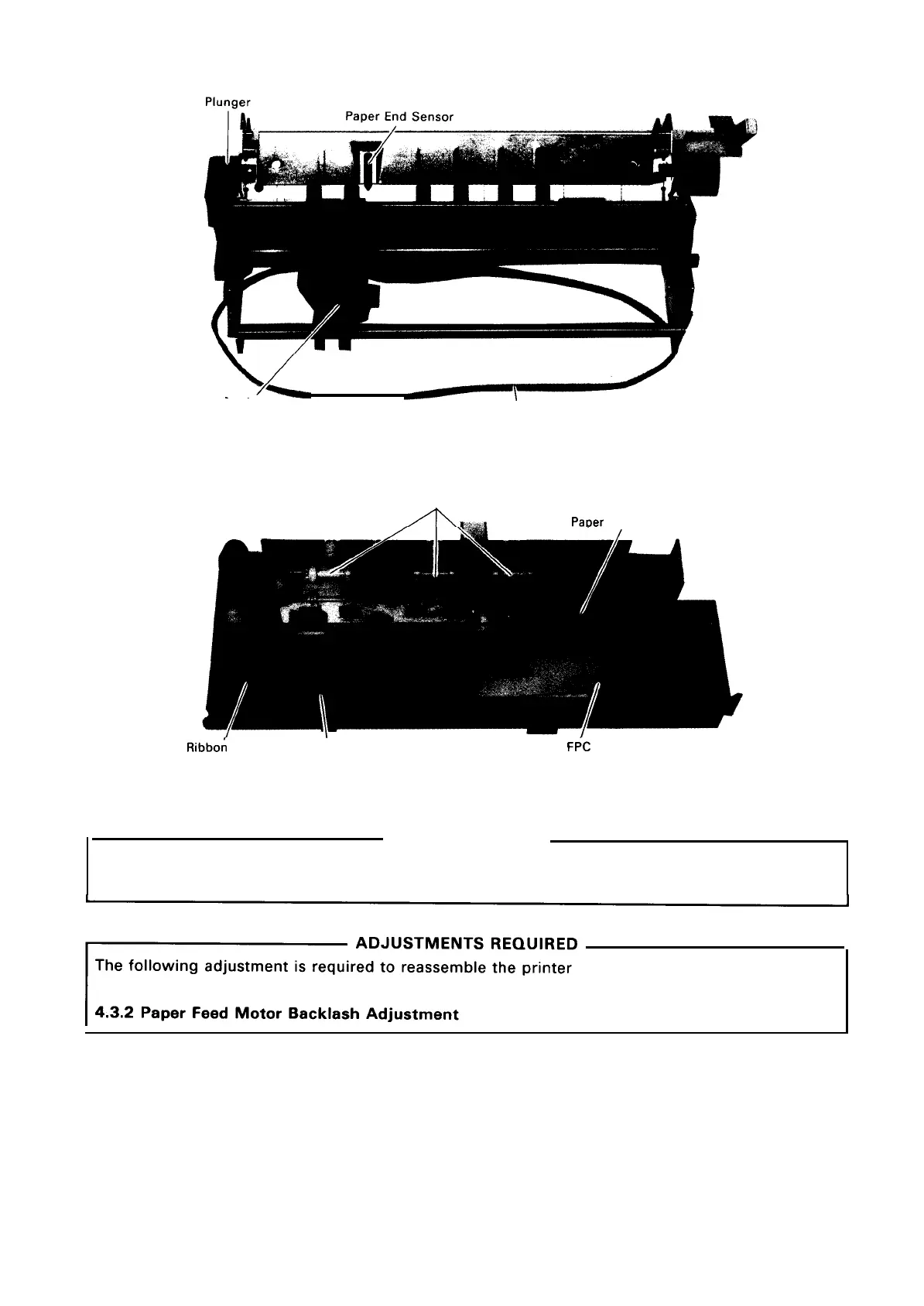

Figure 4-37. Main Frame Unit
Paper Feed Roller
A...,
PaDer Guide Plate
Ribbo~ Driver Home Position Senser
FPC
Figure 4-38. Base Frame Unit
ASSEMBLY POINT
When fitting the main frame to the base frame, hook the eight tabs into the holes in the base frame,
and pull it forward.
TADJUSTMENTSREQU’RED
The following adjustment is required to reassemble the printer mechanism:
4.3.2 Paper Feed Motor Backlash Adjustment
