2. Installation
Safety and Installation (RC90 / EPSON RC+ 7.0) Rev.6
59
2.5.2 Installation
Install the controller on a flat surface such as wall, floor, and controller box in the
direction shown from (A) to (C).

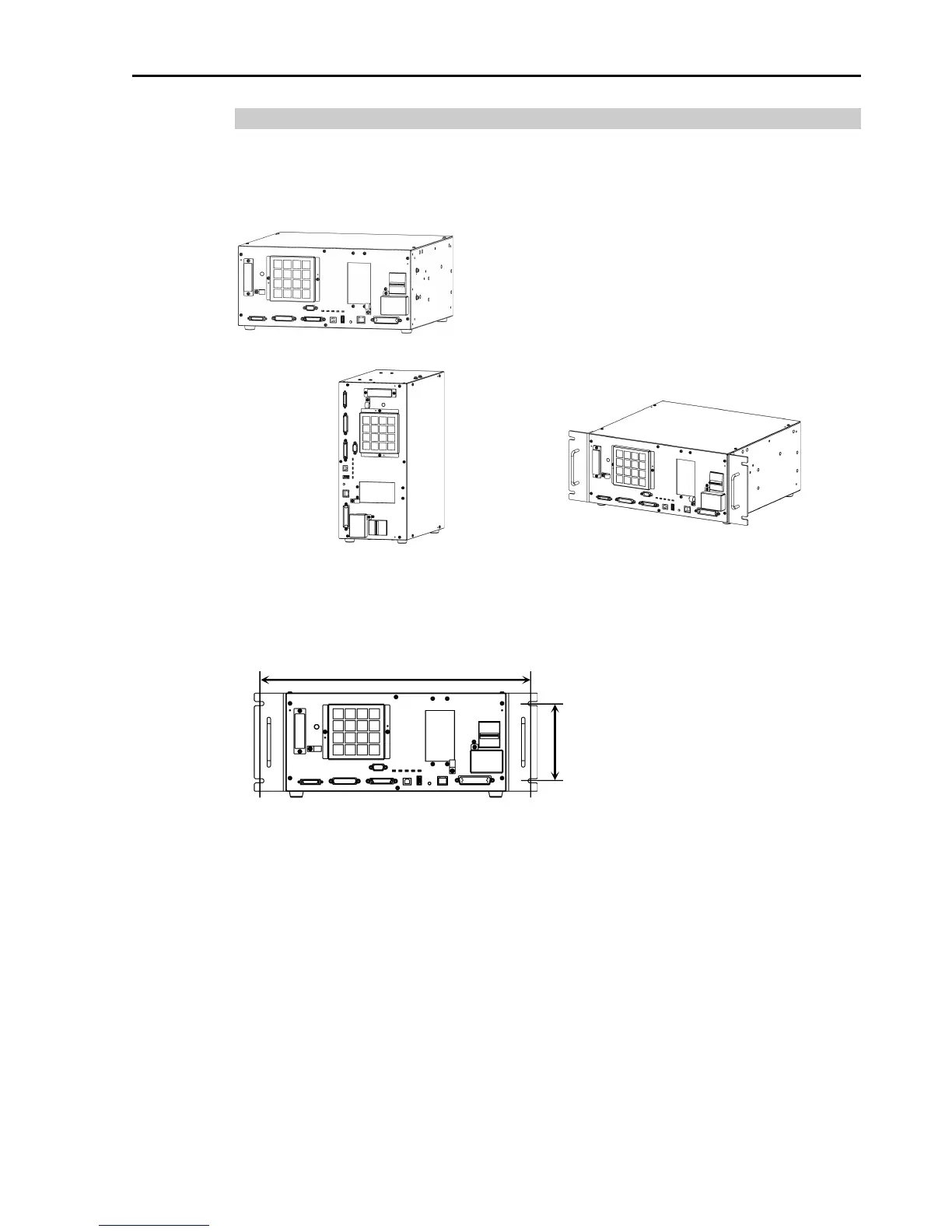

(A) Flat mounting
(B) Upright mounting (C) Rack mounting
* The rubber foot needs to be replaced.
* Rack-mount plate is required.
For Controller installation to the Controller box or the base table, process screw hole
drilling as follows.
133.35 mm
463 mm
Ensure the draft around the in/out and also install the controller by keeping the
distance as follows to prevent the nose influence from other equipments such as large
contactor and relay.

NOTE
