2.3.2 Manipulator Transportation
LS3 / LS6

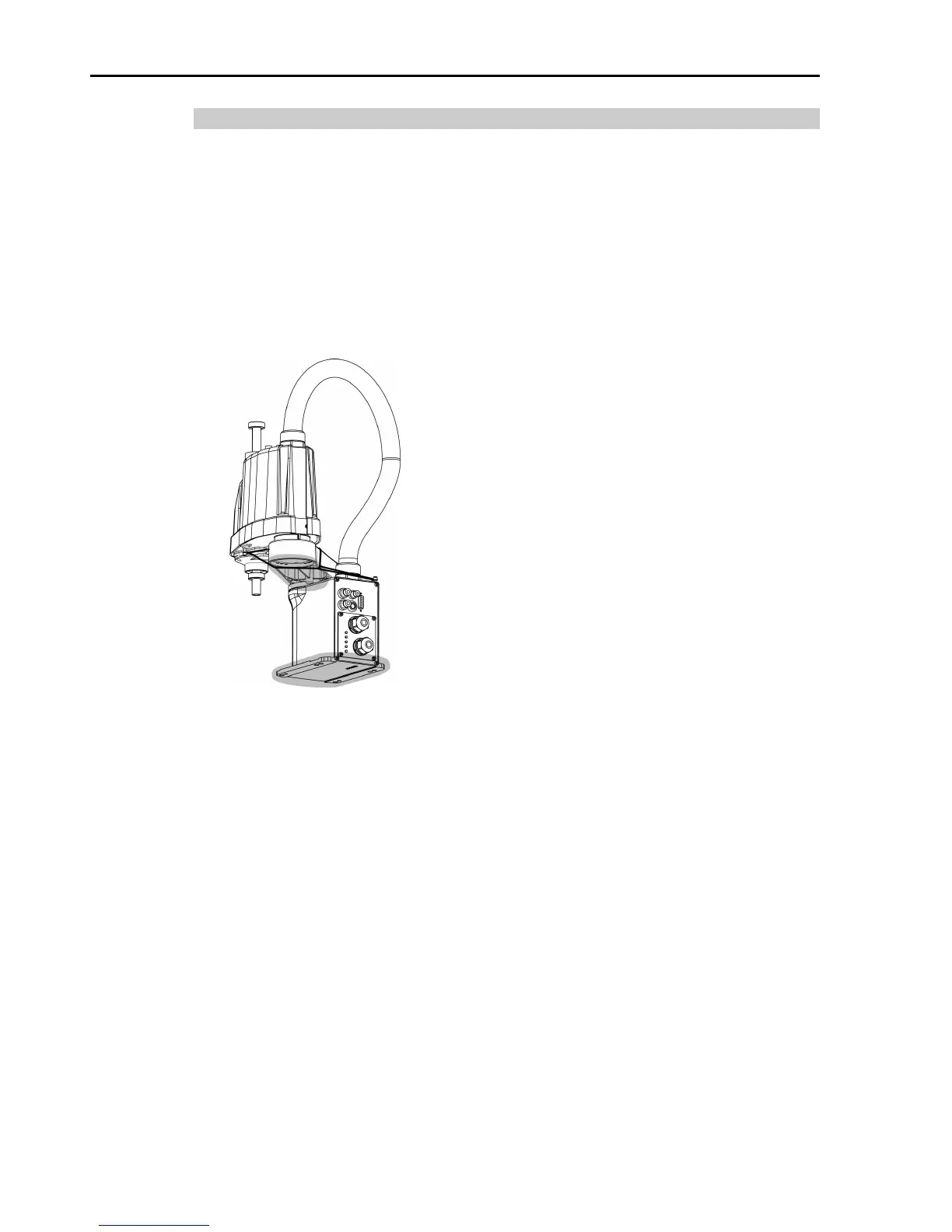

To carry the Manipulator, have two or more people to work on it and secure the
Manipulator to the delivery equipment or hold the areas indicated in gray in the
figure (bottom of Arm #1 and bottom of the base) by hand.
When holding the bottom of the base by hand, be very careful not to get your
hands or fingers caught.
LS3
-401* : approx. 14 kg: 31 lb.
LS6
-502* : approx. 17 kg :37.5 lb.
LS3-602* : approx. 17 kg: 37.5 lb.
LS6-702* : approx. 18 kg :39.7 lb.
To Next Page
