1. Safety
Safety and Installation (RC90 / EPSON RC+ 7.0) Rev.6 9

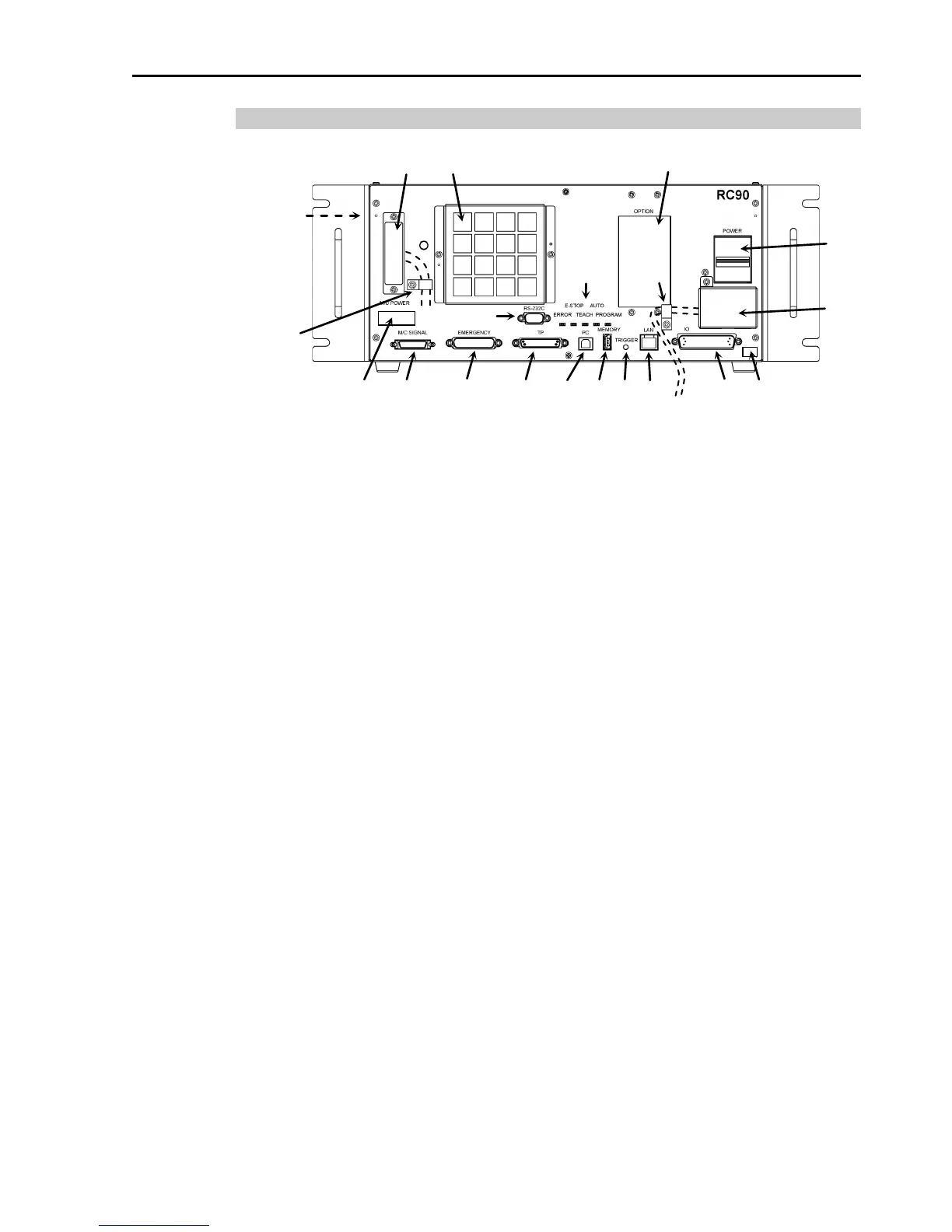

1.3.2 Part Names / Arm Motion
(3)
(19)
(12) (13) (14) (15) (16) (17) (7)
(4)
(1)
(11)
(10)
(9)
(20)
(20)
(18)
(5)
(6)
(Left side)
(2)
(8)
(1) POWER switch
(2) AC IN
(3) LED
(4) Fan Filter
(5) Signature label
(6) MT label
(7) Controller Number label
(8) Connection Check label
(9) M/C POWER connector
(10) M/C SIGNAL connector
(11) EMERGENCY connector
(12) TP port
(13) Development PC connection port
(14) Memory port
(15) Trigger Switch
(16) LAN (Ethernet communication) port
(17) I/O connector
(18) Standard RS-232C port
(19) Option slot
(20) Cable Clamp
(21) Battery (Mounted inside the controller)

Epson RC90 Specifications

General

Brand	Epson
Model	RC90
Category	Controller
Language	English
