Epson SC-P800 User Manual

H Maintenance cartridge cover
Open when replacing the maintenance cartridge.
U “Replacing the Maintenance Cartridge” on page 103
I Control panel
U “Control panel” on page 12
U “Using the Control Panel” on page 92
J Print head
Fires ink via high density nozzles while moving left and right to print. Do not move the print head by hand.
K Paper support edge guide
Only use this to prevent skewing of plain paper that is A3 size or larger.
U “Loading Paper into the Auto Sheet Feeder” on page 24
L Auto sheet feeder
Automatically feeds paper.

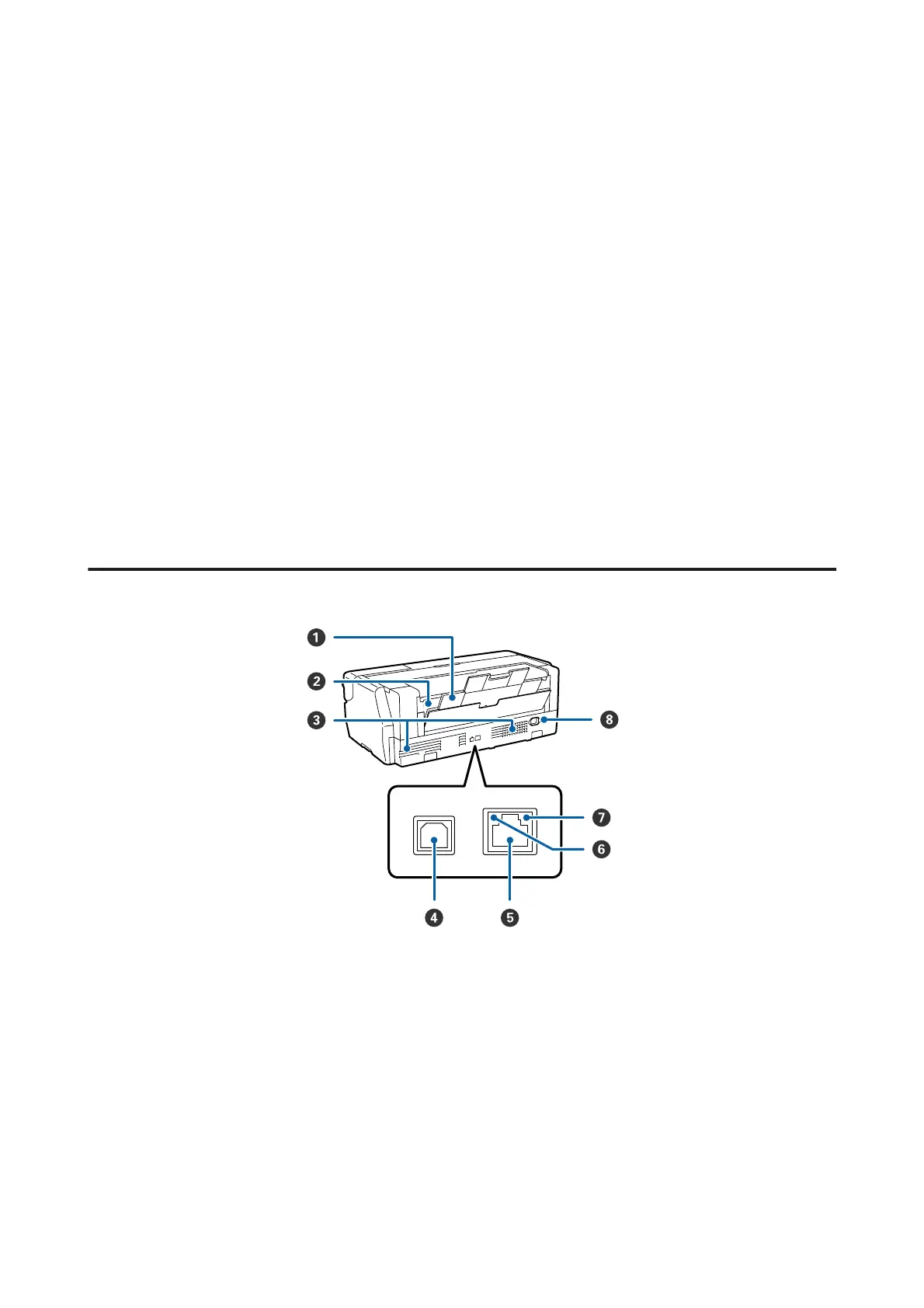

Back
A Rear support
Use when loading fine art media or roll paper using the optional roll paper unit.
U “Loading Fine Art Media” on page 25
U “Loading Roll Paper” on page 30
B Roll paper feeder
Use when printing on roll paper using the optional roll paper unit.
U “Loading Roll Paper” on page 30
SC-P800 Series User’s Guide
Introduction
10

Epson SC-P800 Specifications

General

Maximum Print Resolution	2880 x 1440 dpi
Number of Ink Colors	9
Weight	43 lbs
Print Technology	Inkjet
Ink Type	UltraChrome HD pigment ink
Ink Cartridges	Individual 80ml or 140ml cartridges
Maximum Print Size	17 inches wide
Connectivity	USB 2.0, Ethernet, Wi-Fi Direct
Media Handling	Roll paper
Media Size	Up to 17 inches wide
Display	2.7-inch color touchscreen
Paper Handling	Auto sheet feeder
Dimensions	9.8" (W x D x H)
