DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 125
Confidential

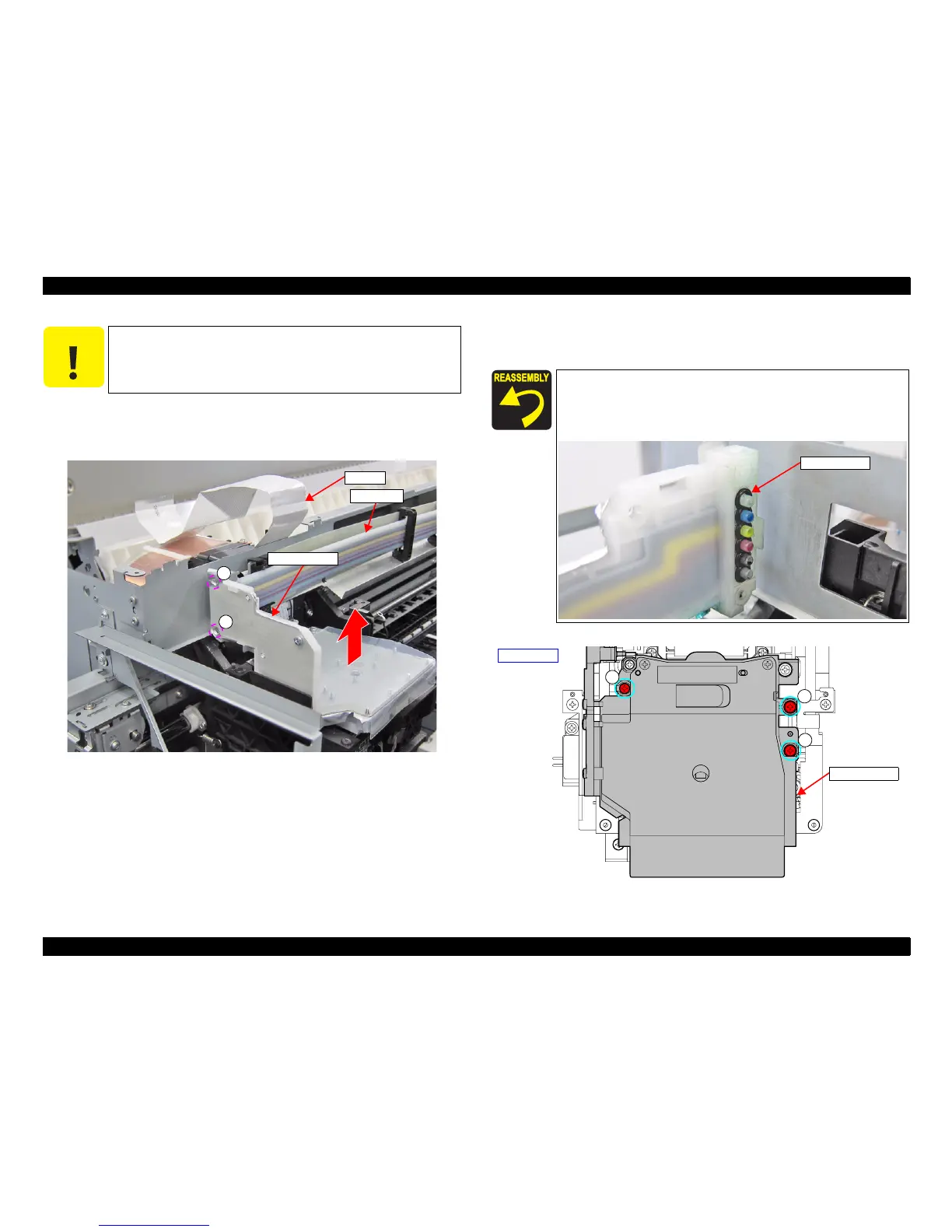

16. Remove the two screws, and remove the INK TUBE from the DAMPER KIT.
D) Silver M2.5x16 screw: 2 pcs
Figure 3-57. Removing the INK TUBE
17. Remove the three screws, and remove the DAMPER KIT.
E) Silver M3x10 Machine screw: 3 pcs
Figure 3-58. Removing the DAMPER KIT
C A U T I O N
When the INK TUBE is removed at the following step, ink may
drip off from the tube. Prepare a waste cloth or the like in advance
and be careful not to contaminate the surroundings.
DAMPER KIT
D
D
CR FFC
INK TUBE
 Before installing the joint, make sure the Joint Rubbers are
attached to it.
 Before attaching the Joint Rubber, let it get wet with cleaning
liquid.
Joint Rubber
E
E
E
Upper side
DAMPER KIT
