Epson SC-T7000 series User Manual

SC-T7000 series/SC-T5000 series/SC-T3000 series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 136
Confidential

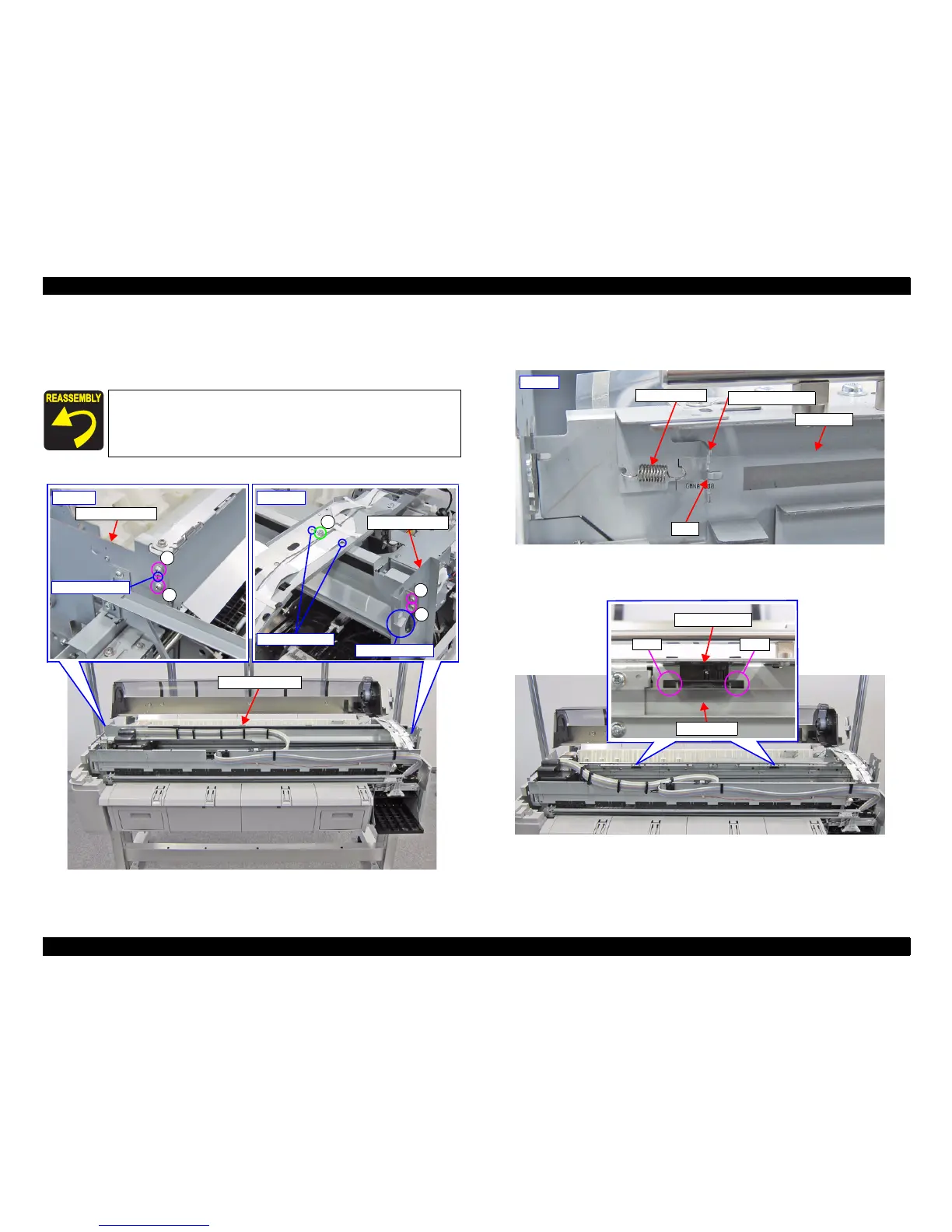

10. Remove the five screws, and remove the Rear Tube Guide.
A) Silver M3x8 S-tite screw with built-in washer: 4 pcs
B) Silver M4x8 S-tite screw with built-in washer: 1 pcs
Figure 3-77. Removing the Rear Tube Guide
11. Remove the Tension spring.
12. Remove the CR SCALE from the hook of the CR Scale Holder B.
Figure 3-78. Removing the CR SCALE (Left side)
13. Remove the CR SCALE from the two each hooks on the two CR Scale Holder.
Figure 3-79. Removing the CR SCALE (Center)
Pay attention to the positioning points (See Figure 3-77).
A
A
L Reinforce Plate
Left side
Positioning point
A
A
Right side
B
R Reinforce Plate
Positioning point
Positioning points
Rear Tube Guide
Tension spring
CR Scale Holder B
CR SCALE
Left side
Hook
CR Scale Holder
CR SCALE
Hook
Hook
