DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 137
Confidential

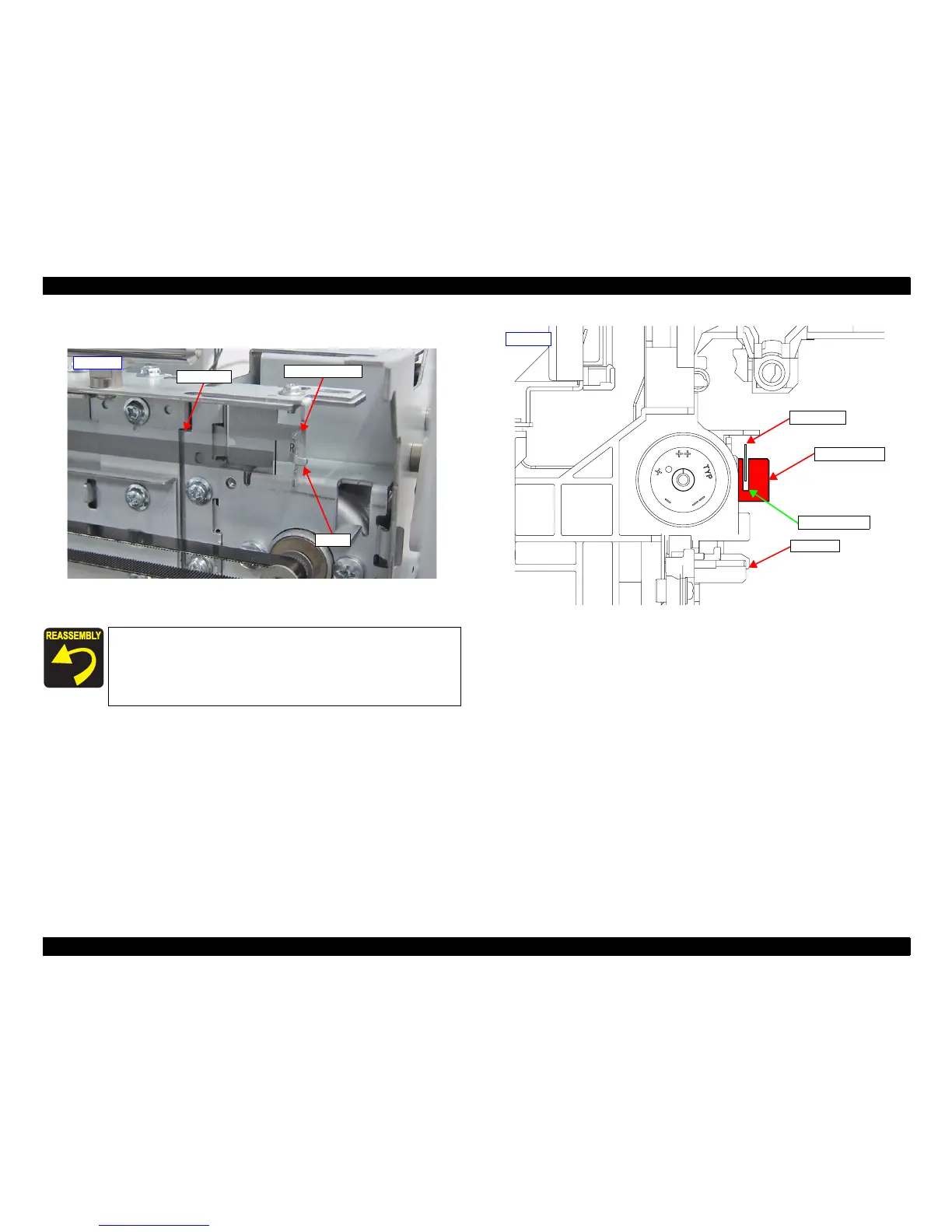

14. Remove the CR SCALE from the hook of the CR Scale Holder.
Figure 3-80. Removing the CR SCALE (Right)
15. Remove the CR SCALE from the CR UNIT.
Figure 3-81. Removing the CR SCALE
 Since the CR SCALE has a specific orientation, install it in the
direction so that you can read the letters L/R correctly from the
front.
 Route the CR SCALE through the detection point on the CR
ENCODER on the rear of the CR UNIT when installing it.
CR SCALE
CR Scale Holder
Hook
Right side
CR SCALE
CR ENCODER
Side view
CR UNIT
Detection point
