Epson SC-T7000 series User Manual

SC-T7000 series/SC-T5000 series/SC-T3000 series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 154
Confidential

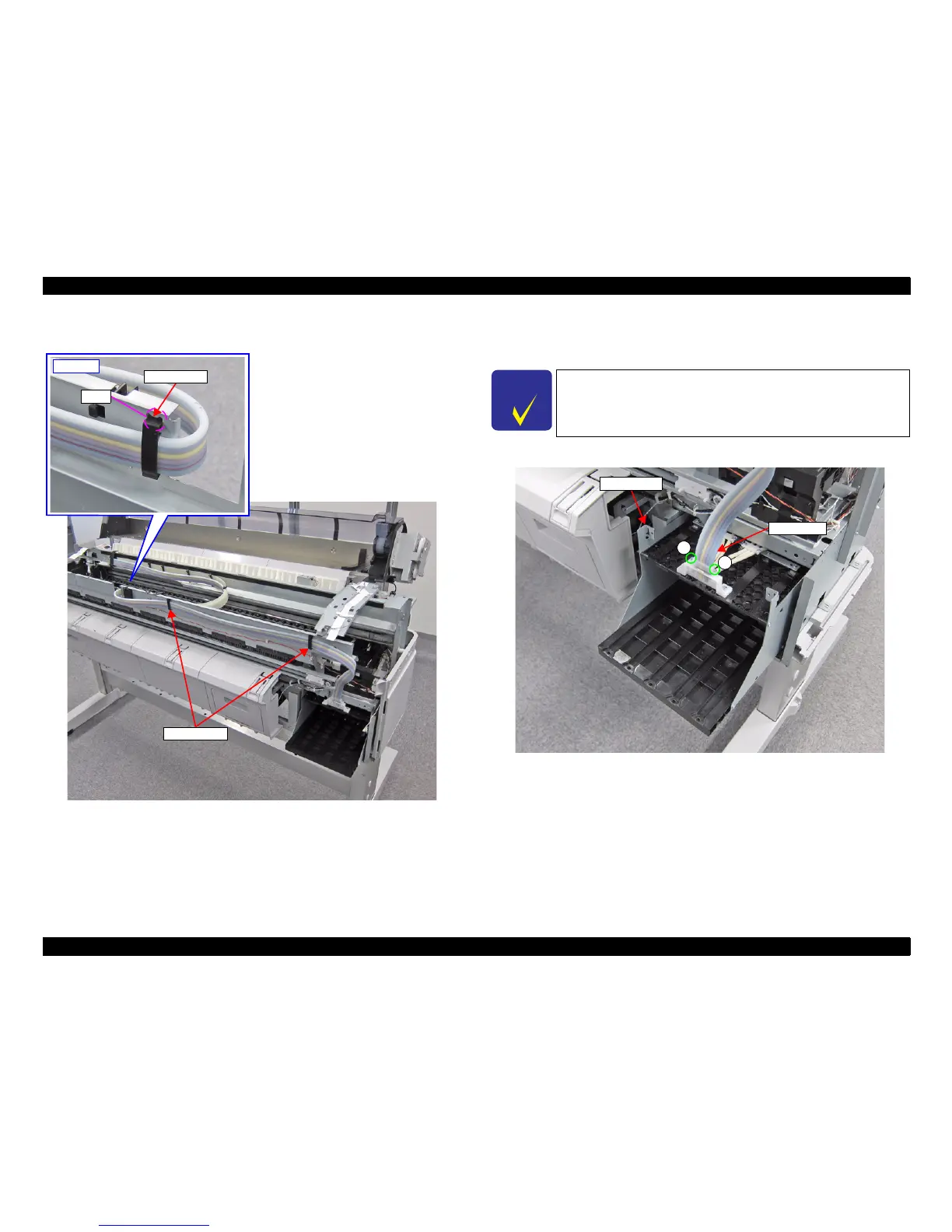

18. Disengage the hooks, and remove the three Tube Holders.
Figure 3-104. Removing the Tube Holder
19. Remove the two screws, and remove the INK TUBE from the IC HOLDER.
C) Silver M2.5x16 screw: 2 pcs
Figure 3-105. Removing the INK TUBE (2)
Tube Holder
Back side
Hook
Tube Holders
C H E C K
P O I N T
If you find it difficult to remove the INK TUBE, remove the four
screws that secure the IC HOLDER and pull the holder slightly
toward you when working on it.
(p.148)
IC HOLDER
INK TUBE
C
C
