SC-T7000 series/SC-T5000 series/SC-T3000 series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 155
Confidential

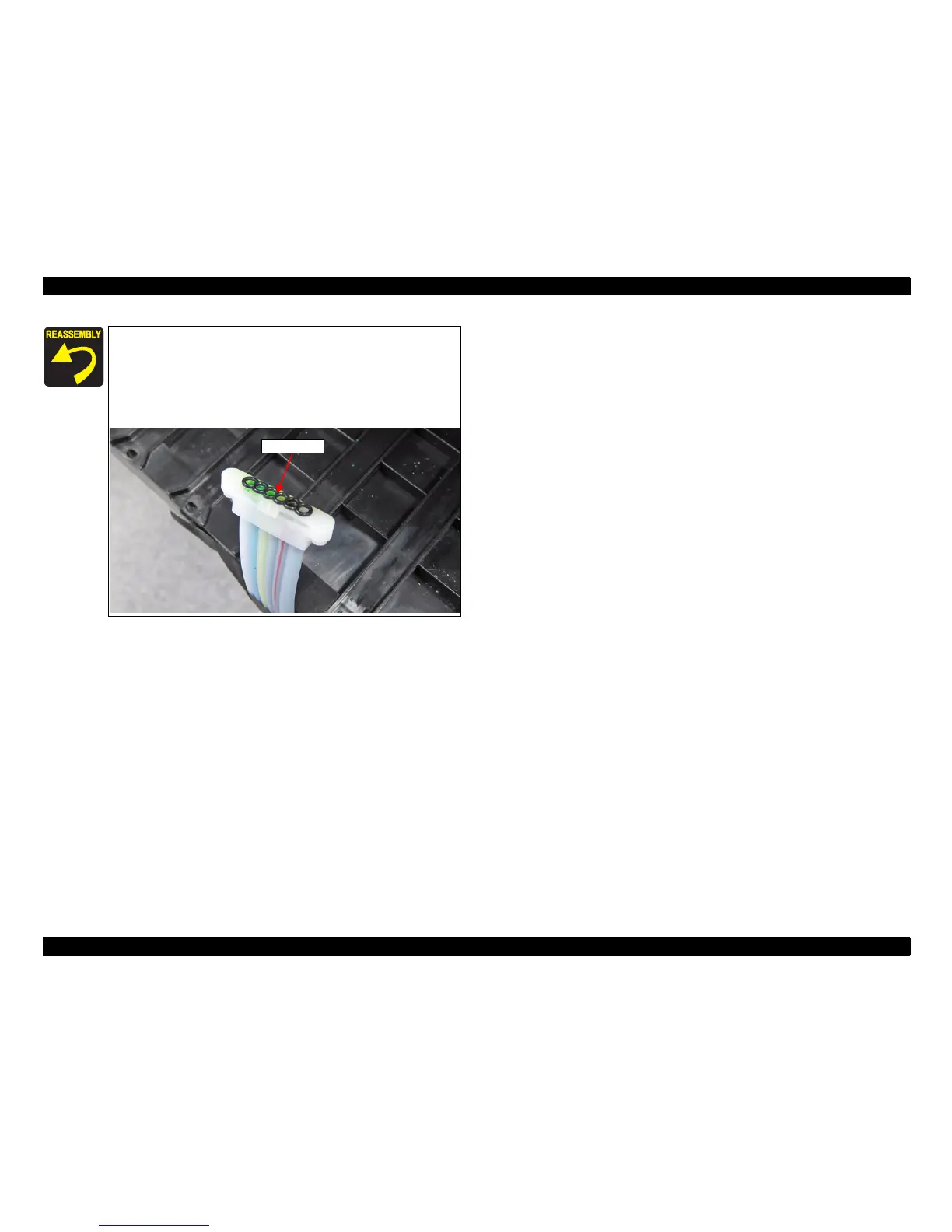

When installing the INK TUBE, attach it with the red line
facing down.
Before installing the joint, make sure the Joint Rubber are
attached to it.
Before attaching the Joint Rubber, let it get wet with cleaning
liquid.
Joint Rubber
To Next Page
