Epson SC-T7000 series User Manual

SC-T7000 series/SC-T5000 series/SC-T3000 series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 157
Confidential
18. Pull out the HEAD FFC from the Ferrite Core.
19. Release the HEAD FFC from the two hooks of the Ferrite Core Holder.

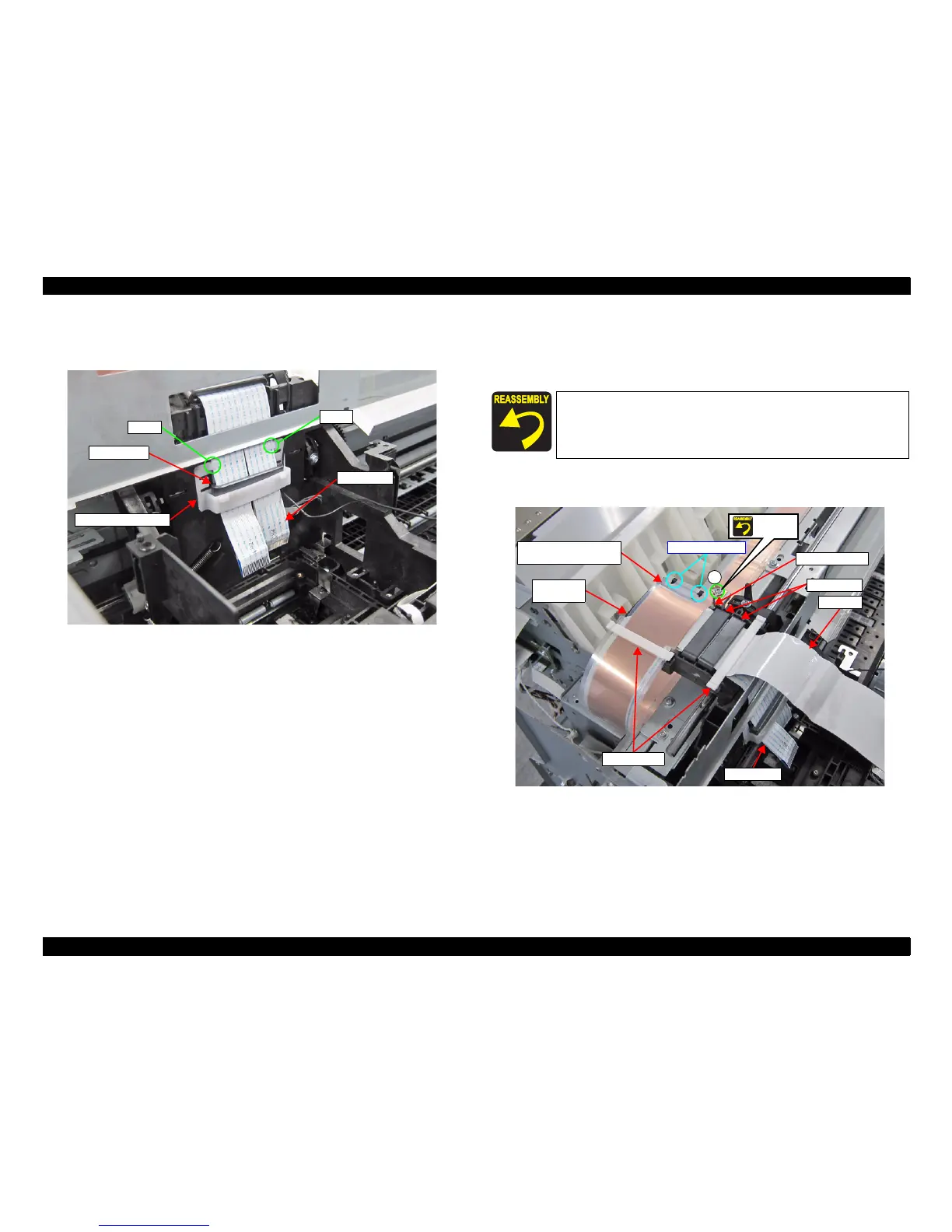

Figure 3-107. Removing the HEAD FFC
20. Remove the two FFC clamps from the top of the CR UNIT.
21. Remove the screw that secures the FFC Shield Plate.
B) Silver M3x6 S-tite screw with built-in washer: 1 pcs
22. Pull out the HEAD FFC and CR FFC from the two Ferrite Cores.
Figure 3-108. Removing the HAED FFC and CR FFC (Top of the CR UNIT)
HEAD FFC
Ferrite Core
Hook
Hook
Ferrite Core Holder
 Secure the Grounding wire and the plate with the same screw
shown in the below figure.
 Pay attention to the positioning points (See Figure 3-108).
B
FFC Clamps
CR FFC
Ferrite Core
Carriage
Main Assy
Grounding wire
HEAD FFC
Screw
together
FFC Shield Plate and
Lower FFC Sheet Guide
Positioning points
