DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 158
Confidential
23. Remove the Wiper Cleaner.
24. Remove the five screws, and remove the CR Motor Holder.
C) Silver M3x6 S-tite screw with built-in washer: 5 pcs
25. Remove the screw, and remove the CR Scale Holder.
D) Silver M3x6 S-tite screw with built-in washer: 1 pcs

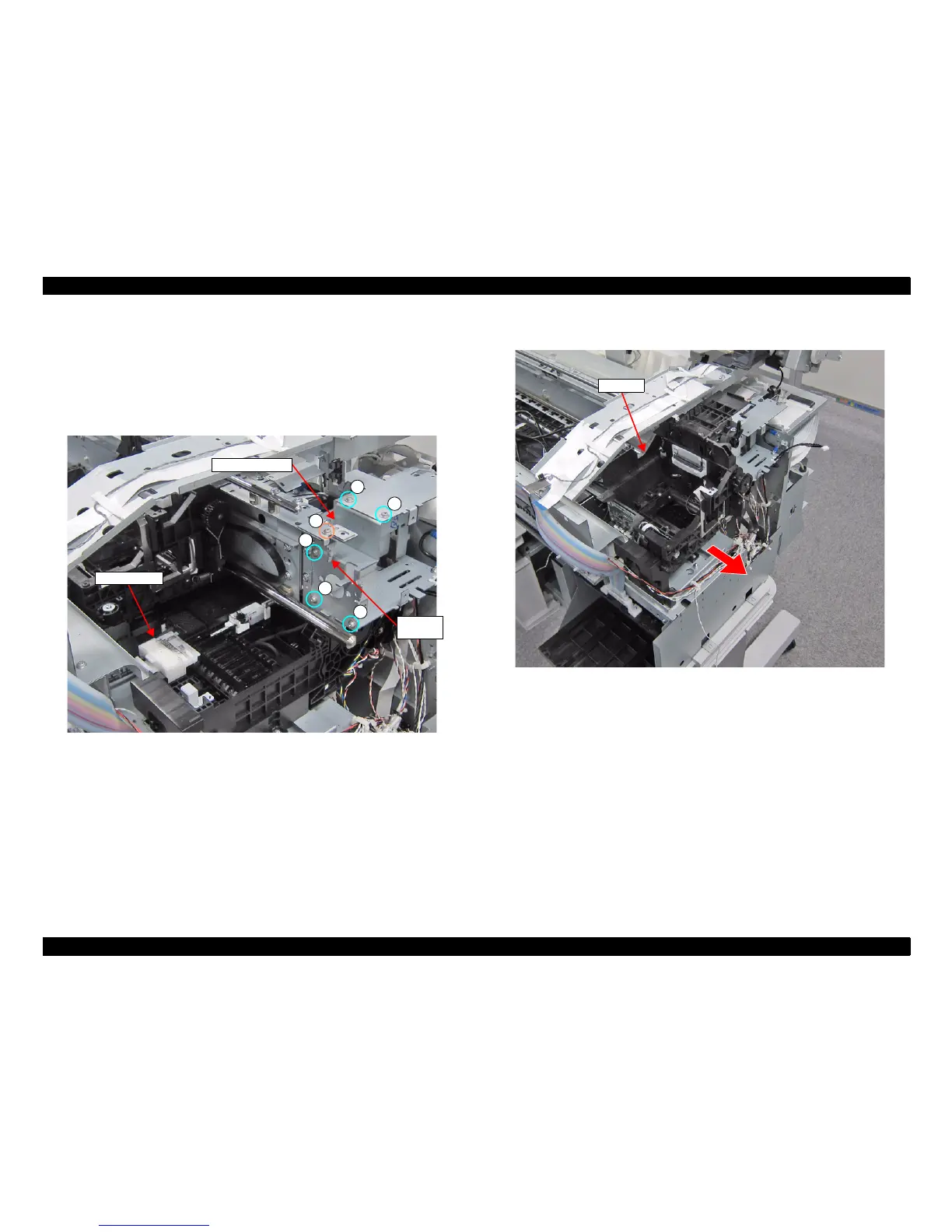

Figure 3-109. Removing the CR Scale Holder
26. Remove the CR UNIT while sliding in the direction of the arrow.
Figure 3-110. Removing the CR UNIT
C
C
C
C
C
D
Wiper Cleaner
CR Motor Holder
CR Scale
Holder
CR UNIT
