DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 195
Confidential
5. Remove the four screws that secure the Shield Plate, and remove the three clamps and
the Shield Plate.
B) Black, Phillips, Bind S-tite M3x6: 4 pcs
6. Disconnect all the connectors on the TAKE-UP REEL MAIN BOARD.
7. Remove the three screws that secure the TAKE-UP REEL MAIN BOARD, and
remove the TAKE-UP REEL MAIN BOARD.
C) Black, Phillips, Bind S-tite M3x6: 3 pcs

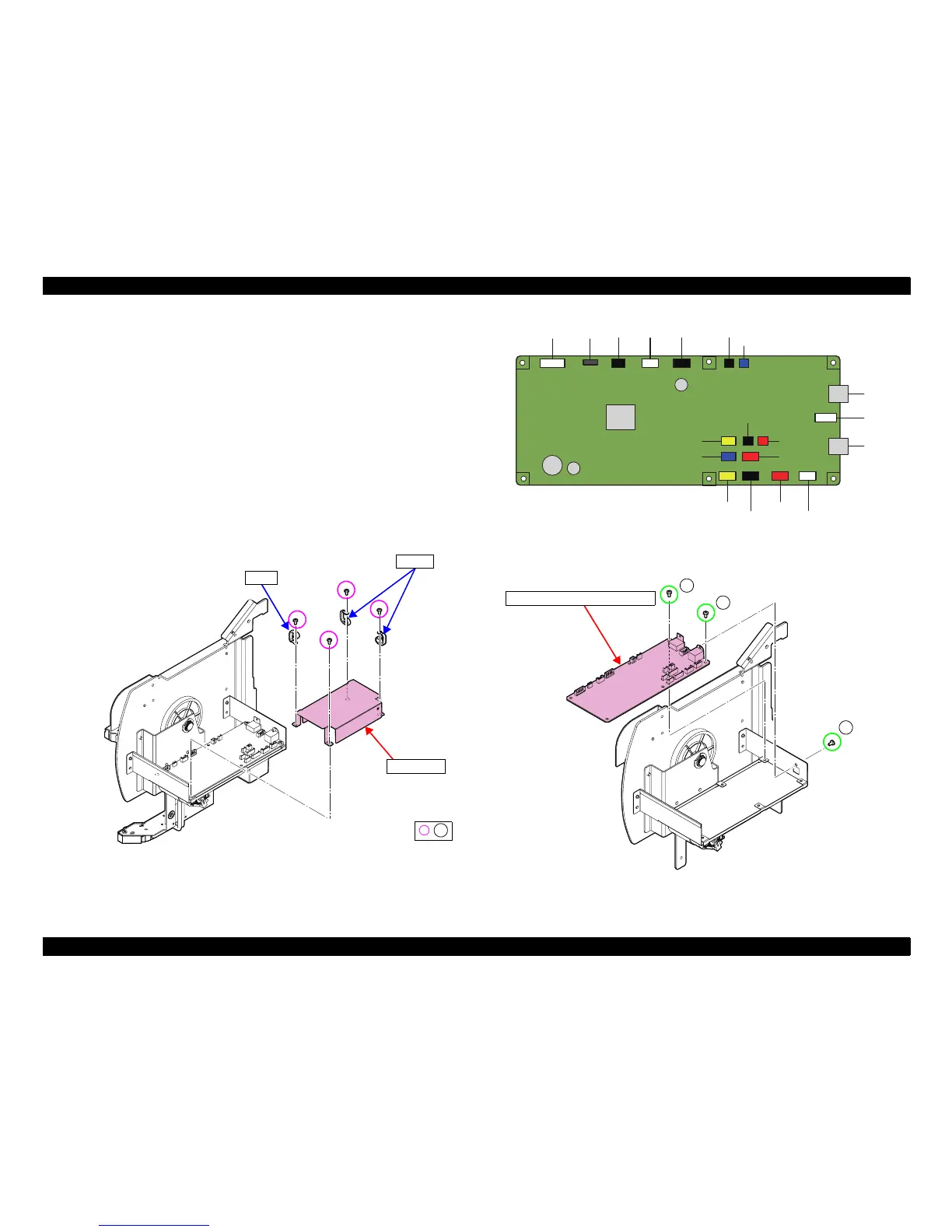

Figure 3-168. Removing the Removing the Shield Plate
Figure 3-169. Connector location
Figure 3-170. Removing the TAKE-UP REEL MAIN BOARD
Shield Plate
Clamps
Clamp
B
CN22 CN28
CN7*
CN8*
CN29
CN10* CN15*
CN11*
CN14*
CN18CN19*CN17CN23CN24*CN1
CN2*
CN3
CN4*
CN26*
*: Unused connectors
TAKE-UP REEL MAIN BOARD
C
C
C
