MAINTENANCE Lubrication 288
Confidential
[Lubrication 2]
[Lubrication 3]

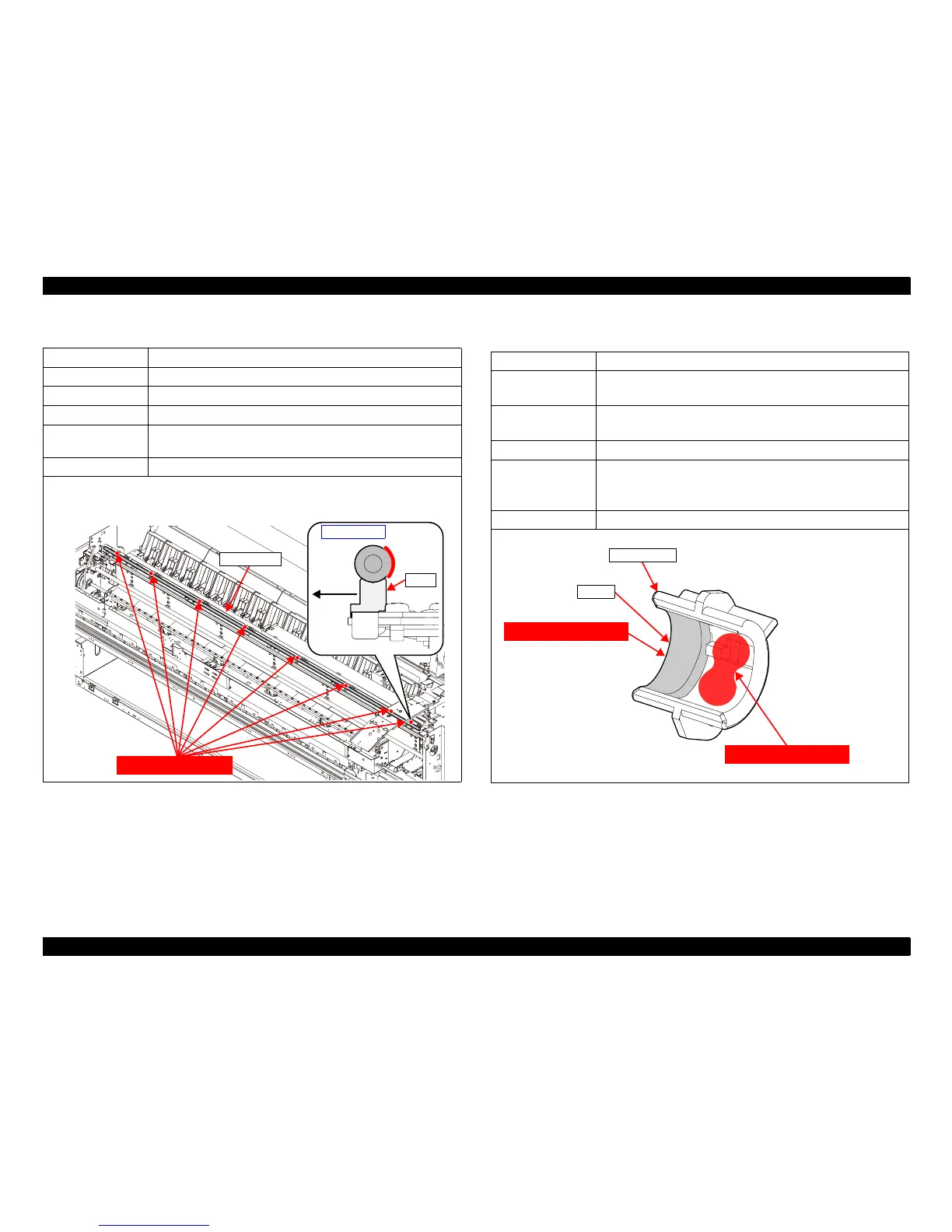

Part Name CR sub shaft
Lubricants (Part Code) G-84 (1516265)
Amount φ 2 mm x 4 mm x 8 points
Lubrication Tool φ 2 mm injector
Lubrication Manner
Lubricate on the back of the CR sub shaft at the posts and spread the
lubricant entirely with a waste cloth or the like.
Note Be careful not to apply the lubricant beyond the specified point.
CR sub shaft
Cross section
Post
Front
Lubrication Point
Part Name Oil pad holder (Left/Right)
Lubricants (Part Code)
1. G-81 (1574337)
2. O-17 (1521154)
Amount
1. 0.2 g to 0.25 g
2. 0.2 cc
Lubrication Tool φ 2 mm injector
Lubrication Manner
Remove the oil pad holder.
1. Apply the lubricant with a syringe.
2. Let the oil soak into the oil pad.
Note Be careful not to apply the lubricant beyond the specified point.
Oil pad holder
Oil pad
Lubrication Point 2
Lubrication Point 1
