SC-T7000 series/SC-T5000 series/SC-T3000 series Revision B
MAINTENANCE Lubrication 289
Confidential
[Lubrication 4]
Part Name CR slider
Lubricants (Part Code) G-84 (1516265)
Amount φ 2 mm x 7 mm
Lubrication Tool φ 2 mm injector
Lubrication Manner
On the contact point of the CR slider with the sub shaft, lubricate by
filling the lubricant into the groove.
Note Be careful not to apply lubricant beyond the specified point.

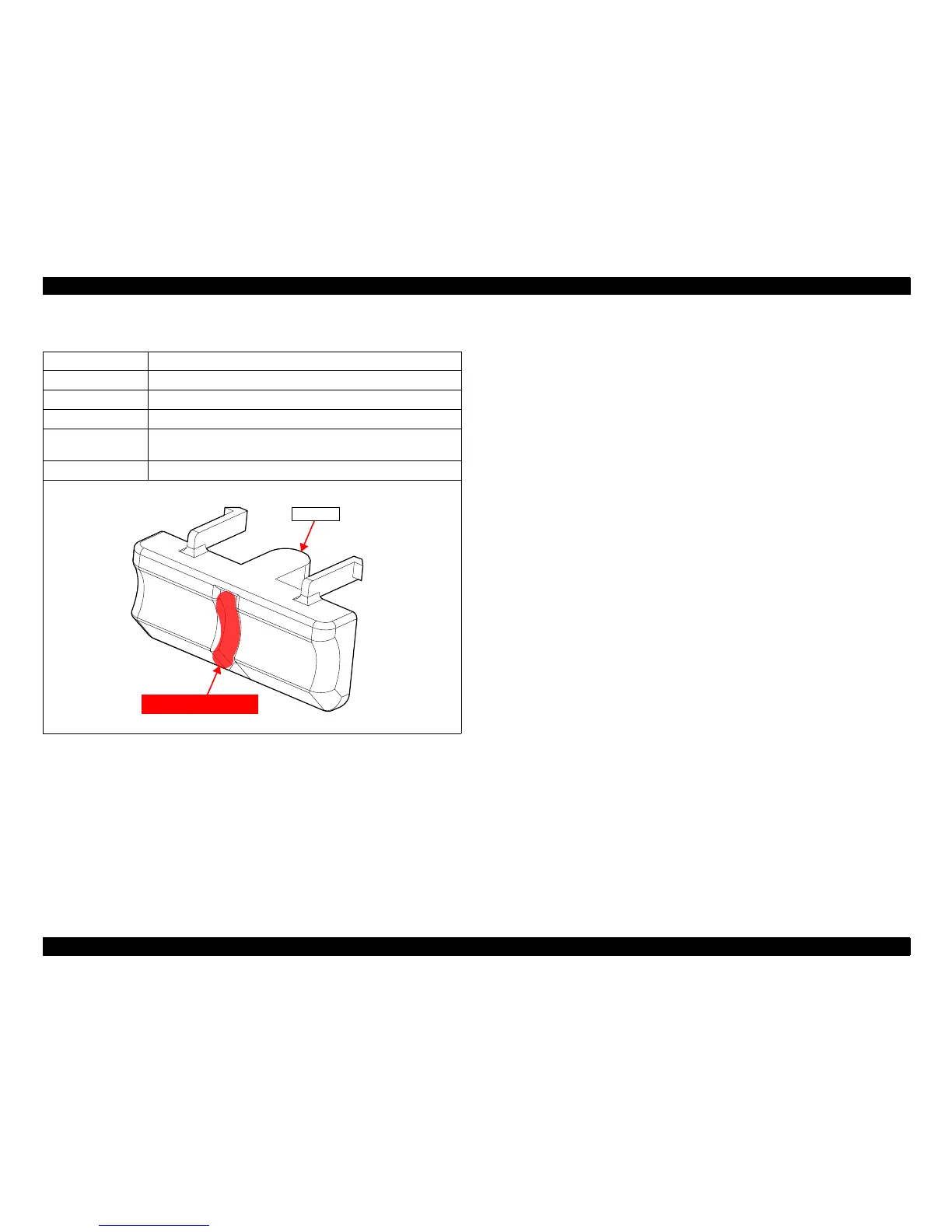

CR slider
Lubrication Point
To Next Page
