5-10 Disassembly, Assembly, and Adjustment Rev. A
Confidential

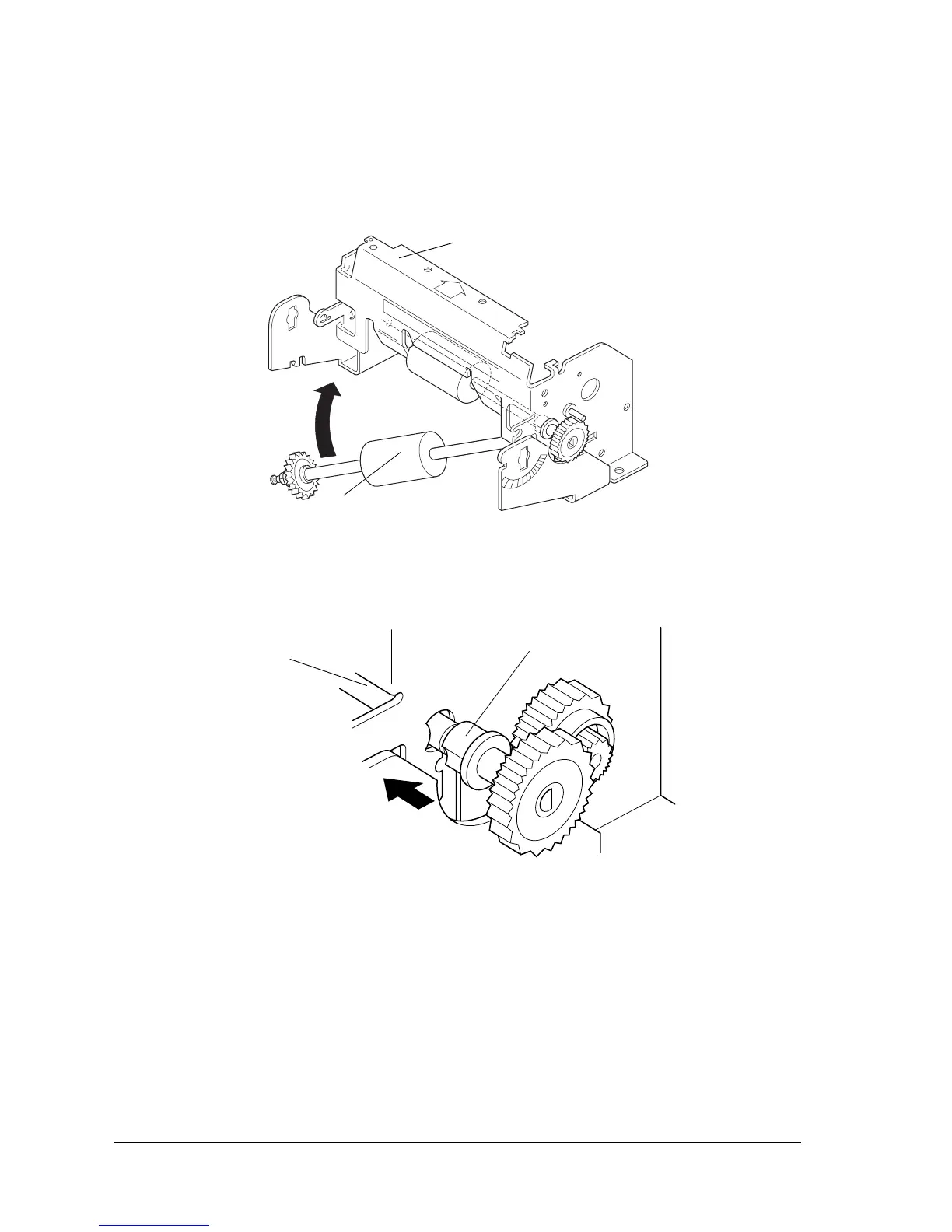

4. Hold the paper feed roller assembly at the angle shown in the illustration and insert the thin
end of the shaft into the paper feed frame assembly. Then move the roller assembly into
place.
5. Attach the paper feed reduction gear to its shaft as shown in the second illustration below.
Make sure that the reduction gear is closer to the frame than the roller assembly gear.
6. Next, insert the J feed roller shaft holder (right) into the frame as shown in the illustration.
Paper feed frame assembly
Paper feed roller assembly
J feed roller shaft holder (right)
(Paper feed
roller assembly)
To Next Page
