5-30 Disassembly, Assembly, and Adjustment Rev. A
Confidential
Main assembly 14

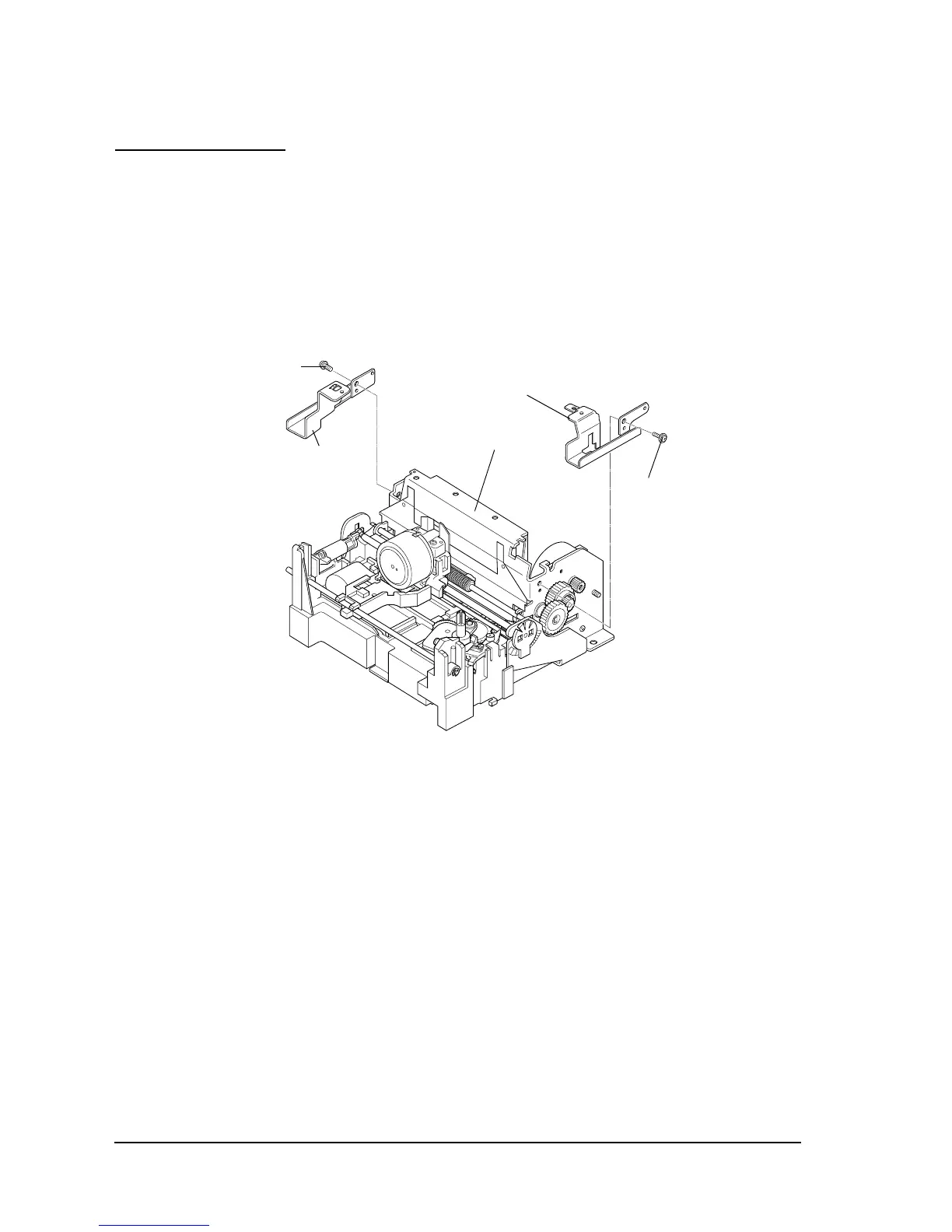

Left cover fixing plate and right cover fixing plate
1. Attach the dowel of the left cover fixing plate into the hole in the paper feed frame, and
secure it with the screw.
2. Attach the dowel of the right cover fixing plate into the hole in the paper feed frame and
secure it with the screw.
Right cover fixing plate
Left cover fixing plate
CCS-tite (M3x6)
[0.69 to 0.88 N • m
(7 to 9 kgf • cm)]
CCS-tite (M3x6)
[0.69 to 0.88 N • m
(7 to 9 kgf • cm)]
Paper feed frame
