Epson TM-U200 Series Technical Manual

Rev. A Appendix A-17
TM-U200 Series (Type A/AM) Technical Manual
/
Confidential

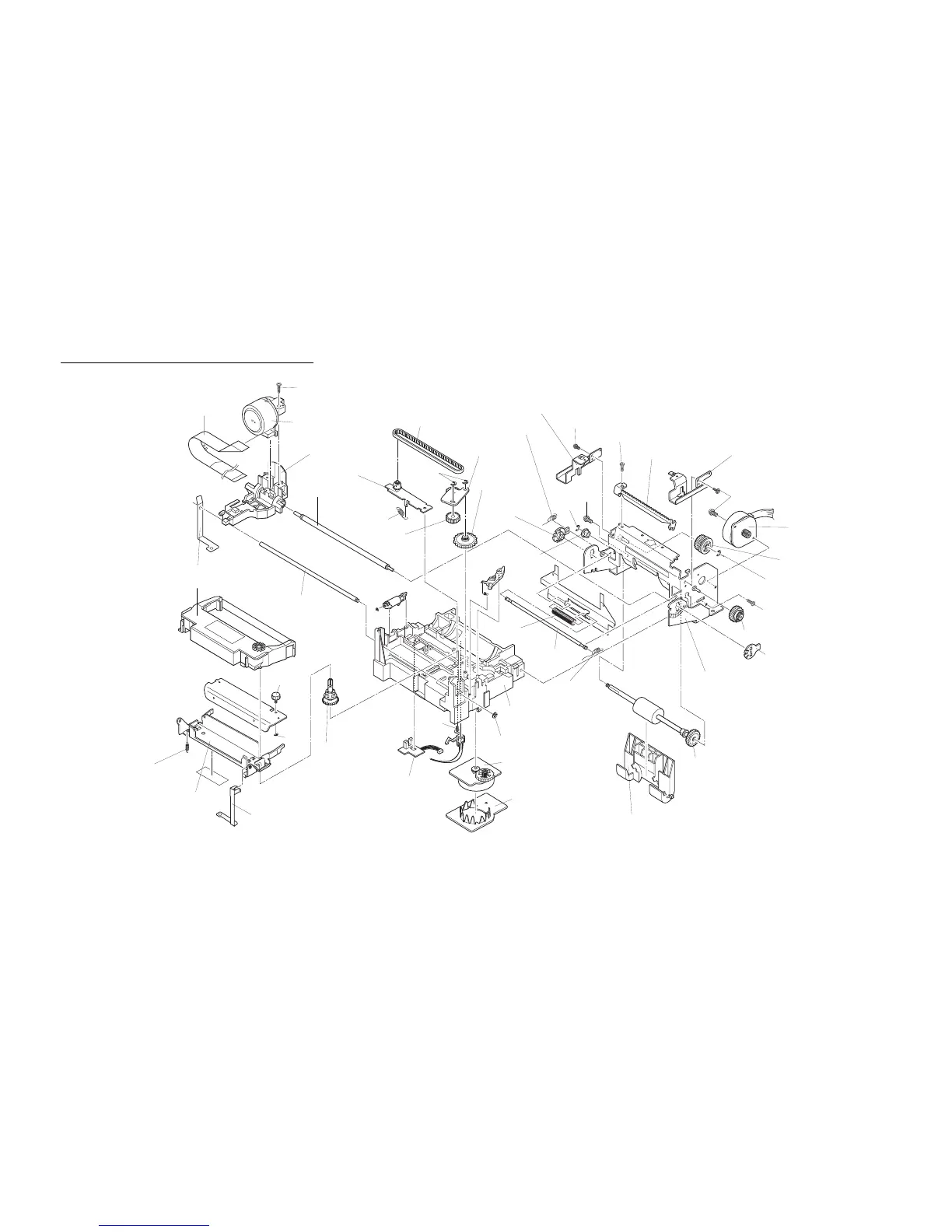

Printer Mechanism Unit Overall Exploded Diagram
Print head unit
Print head FPC
C.P.P-tite (M3 x 10)
Carriage sub assembly
Carrige guide shaft
Belt
Ribbon cassette
Carrige shaft
Ribbon transmission
gear
Belt tension spring
Tension plate assembly R.E(2.3)
Ribbon frame ground plate
Thumb screw
R.E(2.5)
Ribbon frame
Ribbon frame spring
Ribbon frame fixing plate
assembly
Carriage motor assembly
Carriage motor heat sink plate
C.C.S-tite
Sensor assembly
Ribbon take-up
assembly
(M3 x 6)
Upper paper guide
Paper hold
Base frame assembly
R.E (2.3)
spring
Upper case
Paper feed reduction gear
Adjustment roller
Paper feed frame assembly
Paper feed roller assembly
shaft holder
UC.B.T.-B (M3 x 10)
Paper feed motor
C.C.S-tite (M3 x 6)
Manual cutter
C.B.S-tite (M3 x 6)
C.B.T-B
(M3 x 10)
C.C.T-tite (M3 x 6)
Paper hold
roller shaft
Paper hold roller
Ribbon intermediate
gear
Adjustment roller
shaft hodler
Ribbon drive plate
assembly
Paper hold plate spring
R.E(2.3)
J feed roller shaft
holder (left)
Right cover fixing plate
Left cover fixing plate
R.E(3)
Take-up
transmission gear
