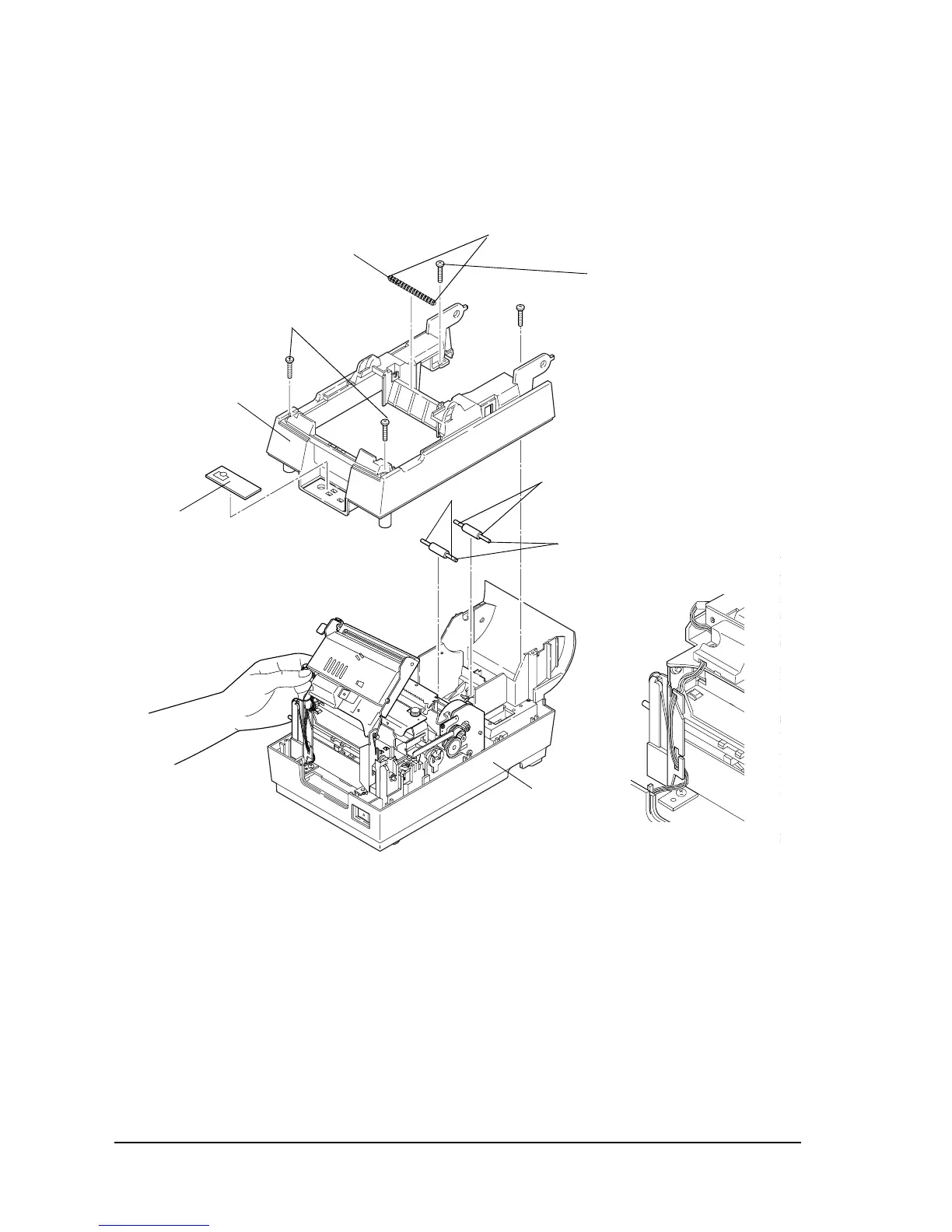

7. Remove any dust and dirt from the switch panel mounting surface and paste the switch
panel on the upper case.
CPT-B (M3x12)
[0.59 to 0.78 N • m
[6 to 8 kgf • cm)]
Upper case
Apply G-31
Paper roll
receiver rollers
Lower case
Guide roller
Apply G-31
Apply G-31
Switch panel
CPT-B (M3x12)
[0.59 to 0.78 N • m
[6 to 8 kgf • cm)]
