EPSON WorkForce 600/EPSON Stylus OFFICE TX600FW/BX600FW/EPSON Stylus SX600FW/ME OFFICE 700FW Revision A
MAINTENANCE Overview 167
Confidential

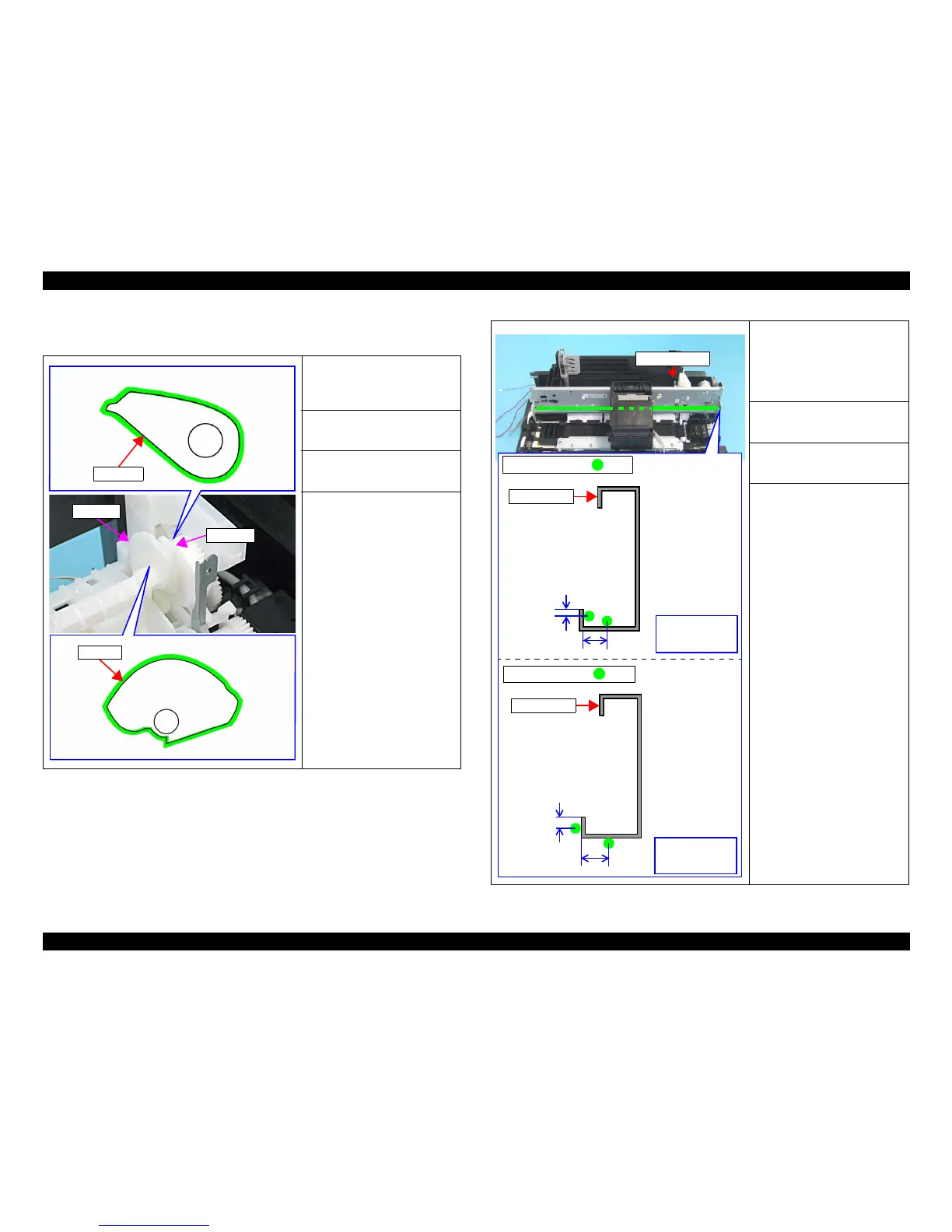

Figure 6-5. Lubrication on PF Roller Grounding Spring
Figure 6-6. Lubrication on LD Roller Shaft
Figure 6-7. Lubrication on Main Frame (1)
<Lubrication Point>
Cam A and Cam B of the LD
Roller shaft
<Lubrication Type>
G-71
<Lubrication Amount>
φ 1 mm x around each cam
<Remarks>
 Use an injector to apply G-71.
 Rub off excess G-71 with a
cotton bud if necessary.
Cam A
Cam B
Cam B
Cam A
<Lubrication Point>
Along the contact areas between
the front of the Main Frame
and the CR Unit.
(x 4: Point A - Point D)
<Lubrication Type>
G-71
<Lubrication Amount>
φ 2 mm x 380 mm (x 4)
<Remarks>
 Use an injector to apply G-71.
 Clean the lubrication points
with a cloth beforehand.
Main Frame
Right Side View
(Inner surface of
the Main Frame)
Lubrication Point ( : x 2)
Main Frame
7 mm
2.8 mm
A
B
Right Side View
(Outer surface of
the Main Frame)
Lubrication Point ( : x 2)
3.5 mm
3.3 mm
C
D
Main Frame
