Actuation Configuration 2 for ICC 200
APC handle for APC and ARGON CUT

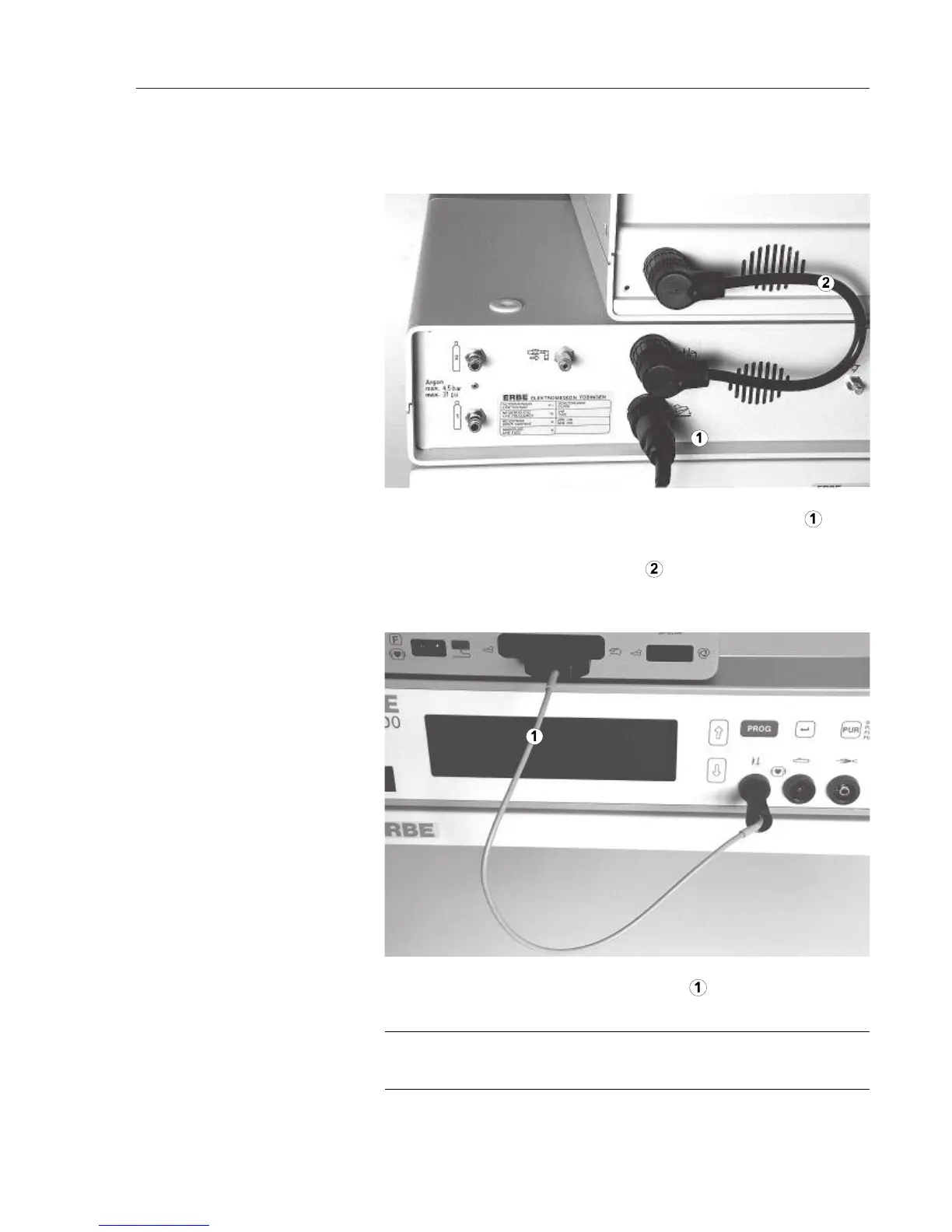

1. Connect two-pedal foot switch to the foot switch socket of the
APC 300.
2. Plug the connection cable 20189-022
into the actuation signals output
of the APC 300 and into the ICC's foot switch socket.
1. Connect foot switch,
connection cable with
two 4-pin plugs
Plug the HF cable 20192-082 or 20192-126 into the APC 300's HF
input and into the ICC's CUT / COAG socket.
If an instrument rather than the HF cable is connected to the CUT / COAG
socket, you can actuate this instrument using the foot switch!
2. Connect HF cable
WARNING!
