Actuation Configuration 2 for ICC 300
APC handle for APC and ARGON CUT, electrode handle for CUT and COAG
with two buttons, instrument for BIPOLAR COAG
In this configuration, CUT and COAG
of the electrode handle can only be
actuated with finger switches.
APC can be actuated with foot and
finger switches. ARGON CUT can be
actuated with foot and finger switches.
i

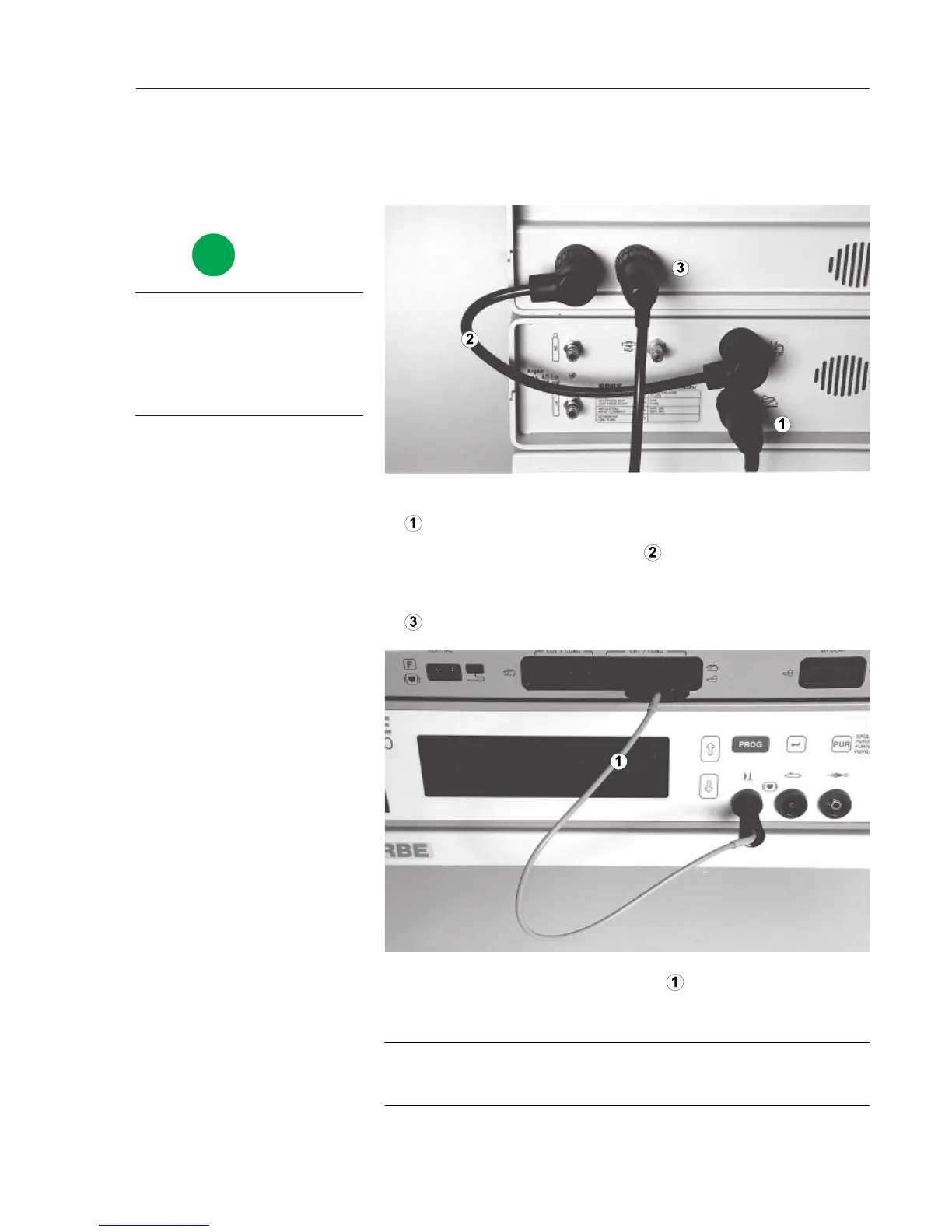

1. Connect two-pedal foot switch to the APC 300's foot switch socket
.
2. Plug connection cable 20189-022
into the APC 300's actuation
signals output and into the ICC's 4-pin foot switch socket.
3. Connect single-pedal foot switch to the ICC's 7-pin foot switch socket
.
Plug HF cable 20192-082 or 20192-126 into HF input of the APC
300 and into the CUT / COAG socket of the ICC for foot and finger
switches.
If an instrument, rather than the HF cable, is connected to the CUT /
COAG socket, you can actuate this instrument using the foot switch!
2. Connect HF cable
WARNING!
1. Connect foot switch,
connection cable with
two 4-pin plugs
