21
Actuation Configurations for ICC 350 • 8
Actuation Configuration 2 for ICC 350
ICC Software V. 1.06 and V. 1.07
APC handle for APC and ARGON CUT, electrode handle for CUT and COAG
with two buttons, instrument for BIPOLAR COAG
i
In this configuration, CUT and COAG
of the electrode handle can only be
actuated with finger switches.
APC can be actuated with foot and
finger switches. ARGON CUT can be
actuated with foot and finger switches.

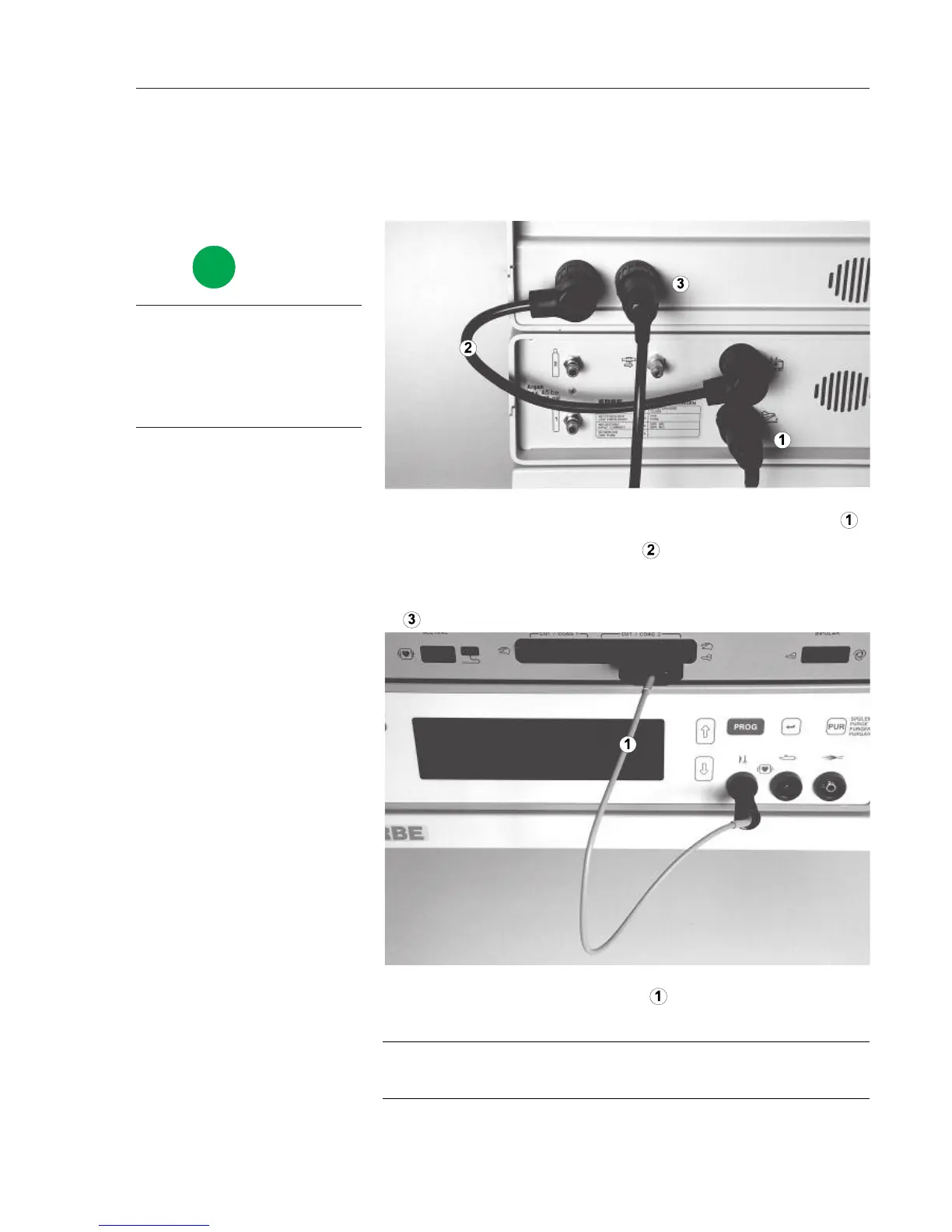

Plug HF cable 20192-082 or 20192-126 into HF input of the APC 300
and into the CUT / COAG 2 socket of the ICC 350.
If an instrument, rather than the HF cable, is connected to the CUT /
COAG socket, you can actuate this instrument using the foot switch!
2. Connect HF cable
WARNING!
1. Connect two-pedal foot switch to the APC 300's foot switch socket .
2. Plug connection cable 20189-022 into the APC 300's actuation
signals output and into the 4-pin foot switch socket of the ICC 350.
3. Connect single-pedal foot switch to the ICC's 7-pin foot switch socket
.
1. Connect foot switch,
connection cable with
two 4-pin plugs
