Actuation Configurations for ACC 450 • 8
Plug HF cable 20192-082 or 20192-126 into HF input of the APC
300 and into the Cut and Coagulation socket of the ACC for foot and
finger switches.
If an instrument, rather than the HF cable, is connected to the Cut and
Coagulation socket, you can actuate this instrument using the foot switch!
WARNING!
2. Connect HF cable
1. Connect foot switch,
connection cable with
two 4-pin plugs

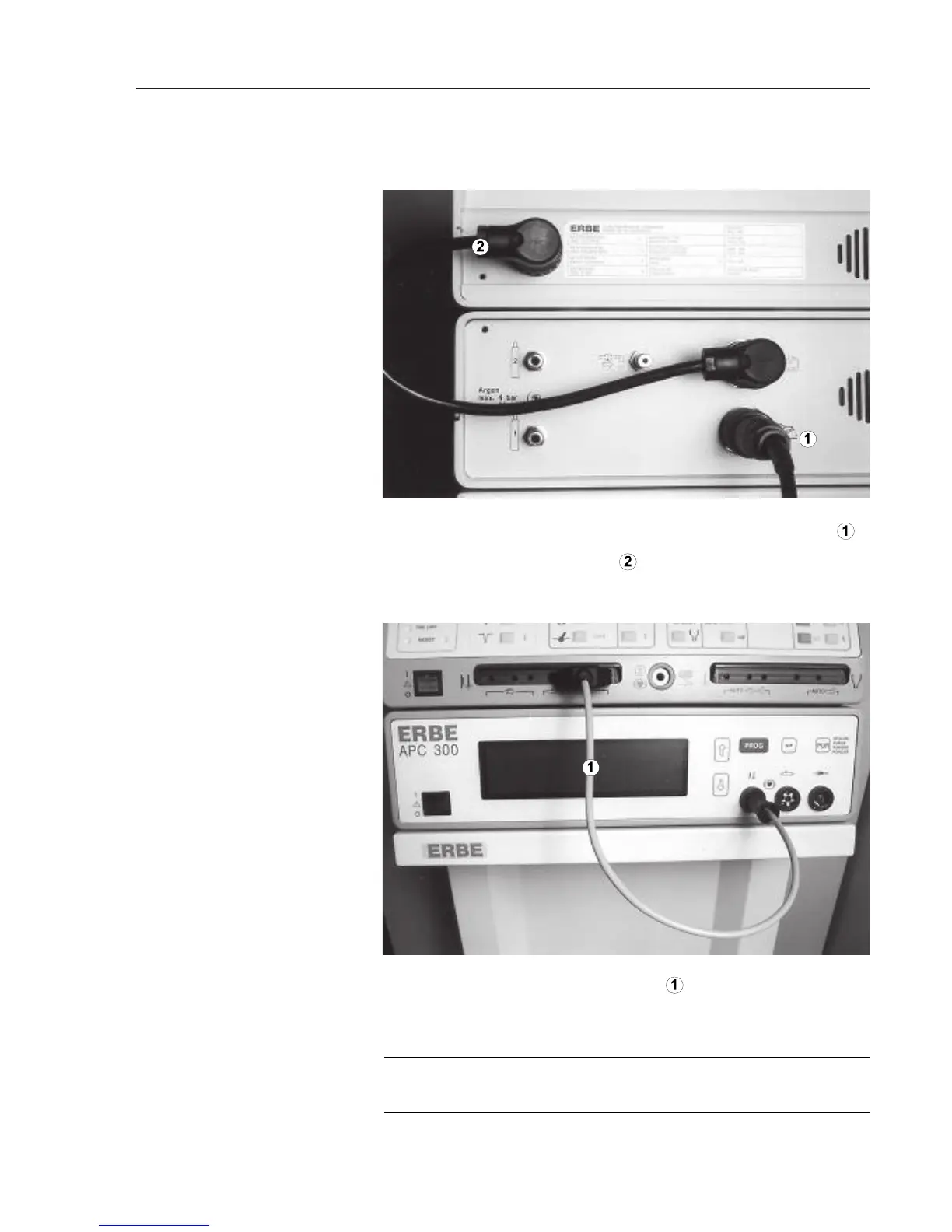

1. Connect two-pedal foot switch to the APC 300's foot switch socket .
2. Plug connection cable 20189-022
into the APC 300's actuation signals
output and into the ACC's 4-pin foot switch socket.
Actuation Configuration 1 for ACC 450
APC probe for flexible endoscopes
