Erbe APC 300 - Configurations for ICC 350

17
Actuation Configurations for ICC 350 • 8
Actuation Configuration 1 for ICC 350 ICC Software V. 1.06 and V. 1.07
APC probe for flexible endoscopes

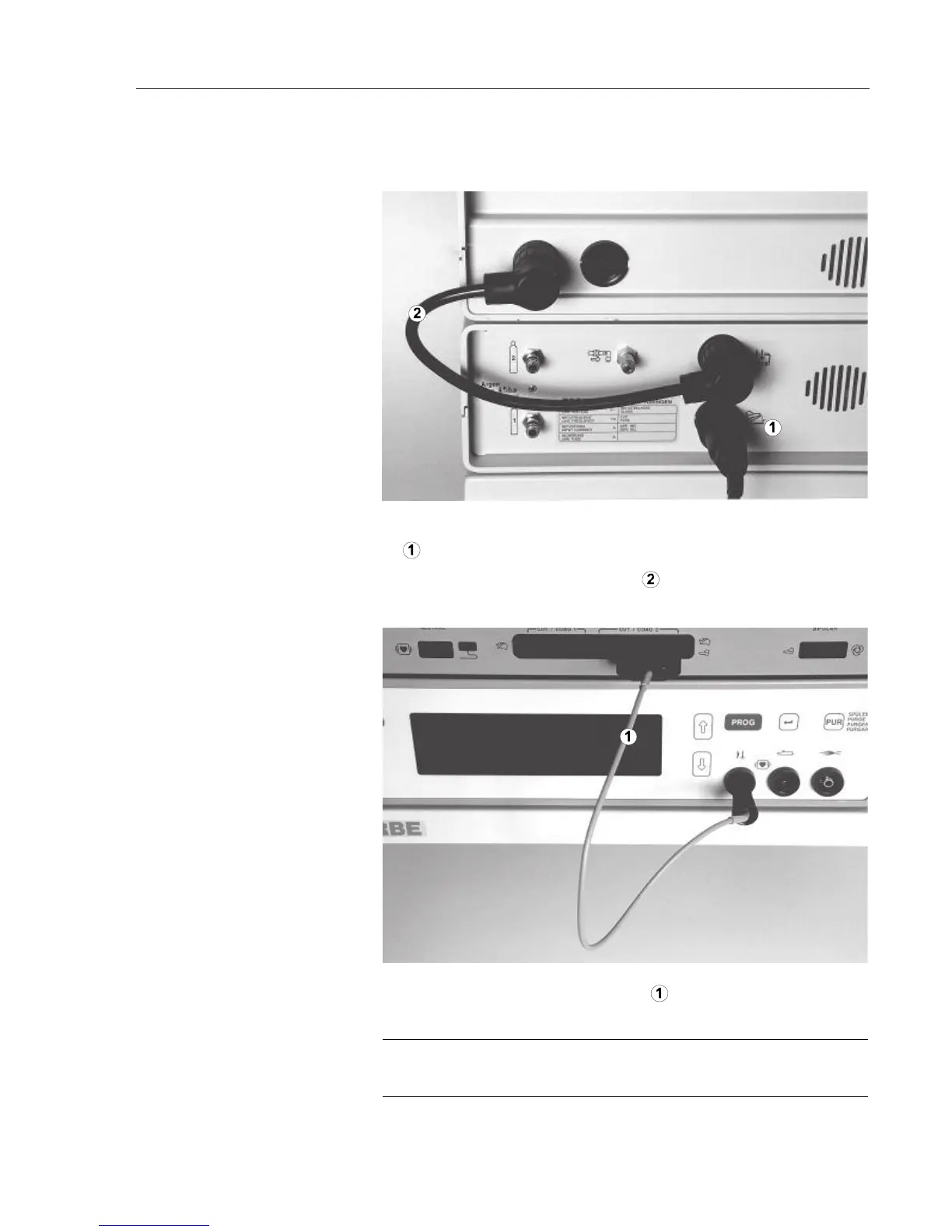

1. Connect two-pedal foot switch to the APC 300's foot switch socket
.
2. Plug connection cable 20189-022
into the APC 300's actuation
signals output and into the 4-pin foot switch socket of the ICC 350.
1. Connect foot switch,
connection cable with
two 4-pin plugs
Plug HF cable 20192-082 or 20192-126 into the HF input of the APC
300 and into the CUT / COAG 2 socket of the ICC.
If an instrument, rather than the HF cable, is connected to the CUT /
COAG socket, you can actuate this instrument using the foot switch!
2. Connect HF cable
WARNING!
