AP03 Mains rectifier circuit boa rd
This cir cuit board is used only in the DTE 255.

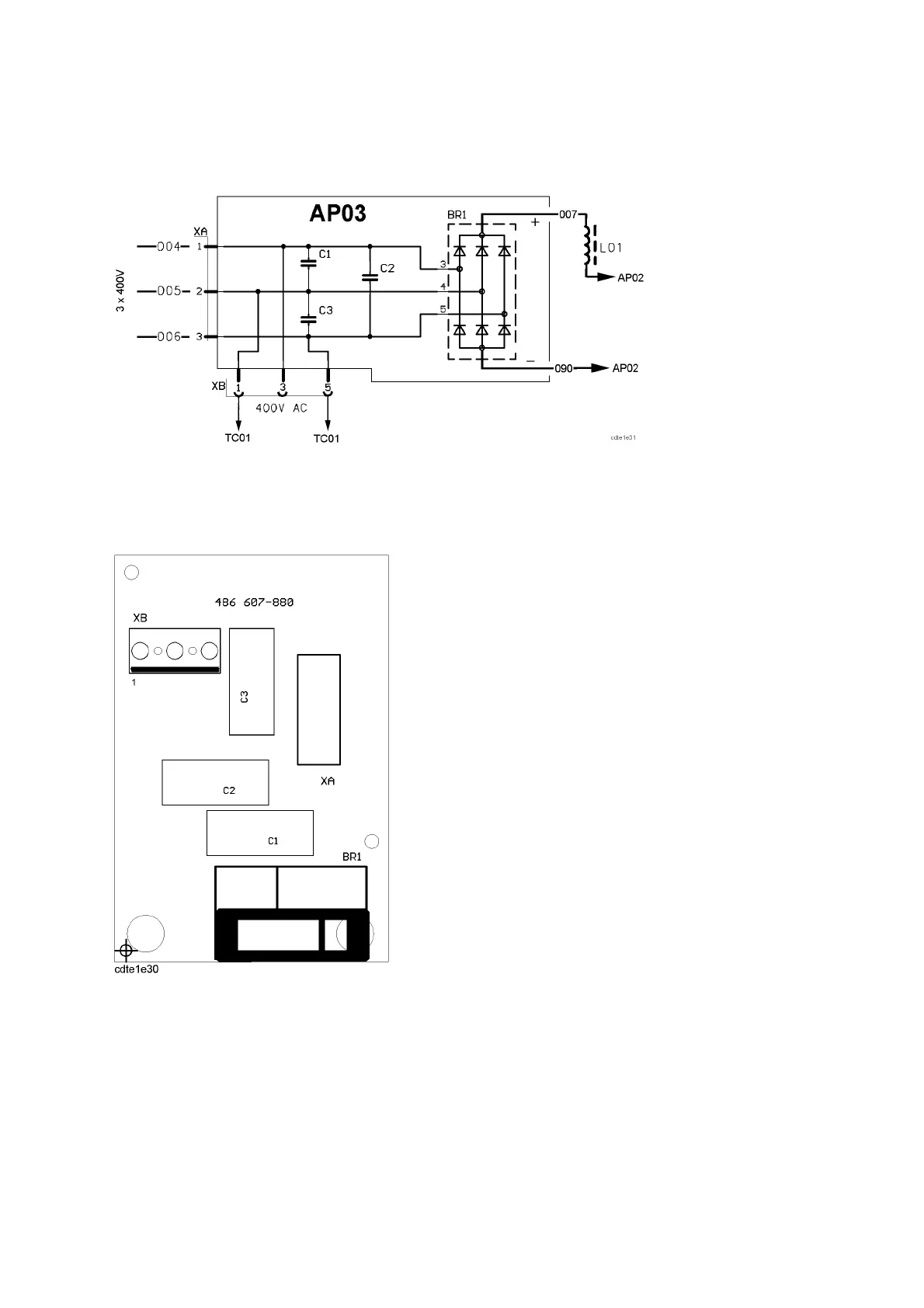

Circuit diagram for circuit board AP03
Component positions for circuit board AP03
