AP05:4a Digital display
Valid for version 1 and 2 of circuit board AP05

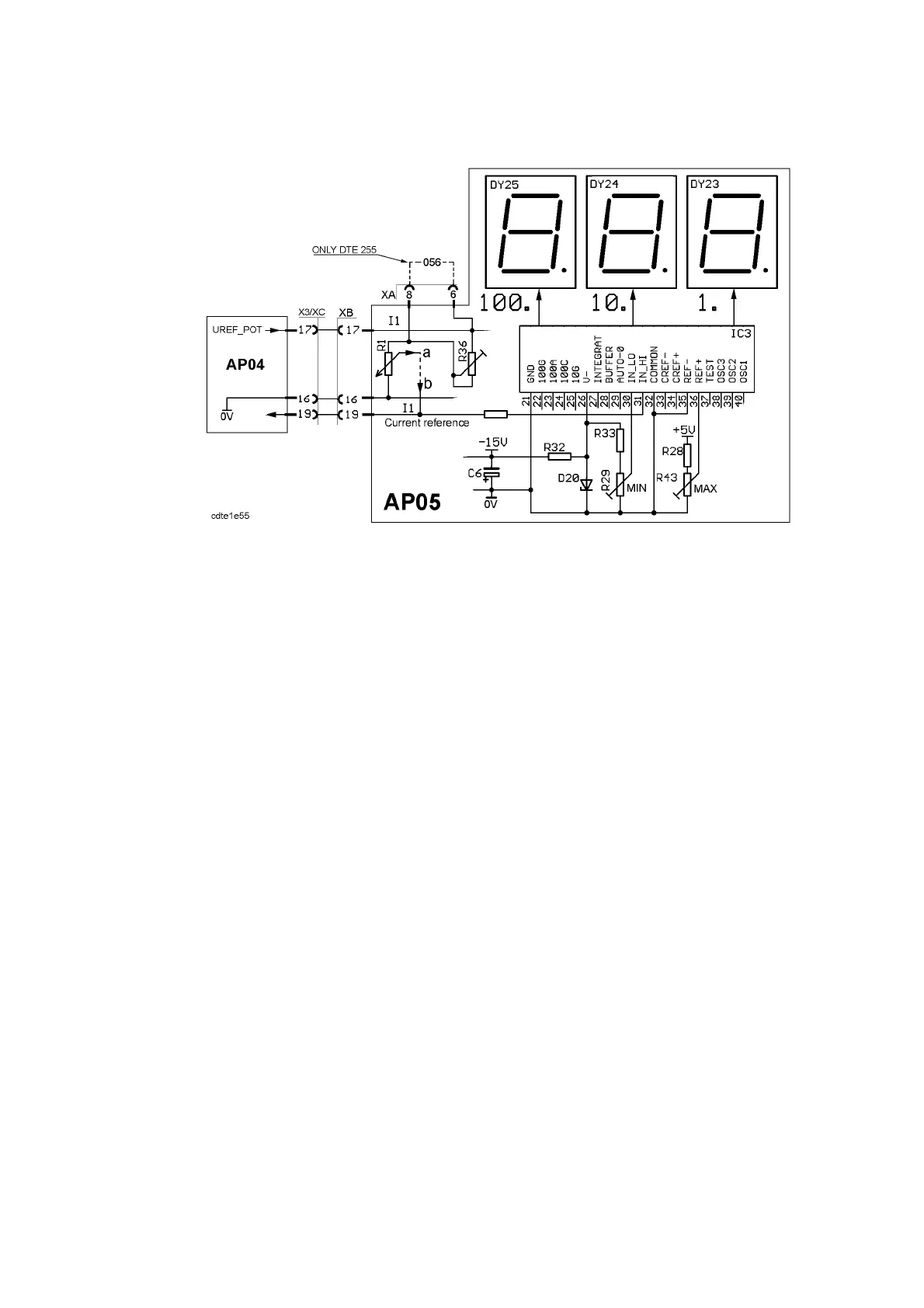

Drive circuit for the digital display, version 1 and 2 of AP05
When a remote contr o l is used version 1 displays always the welding current
which is set by potentiometer R1 on the front panel.
Version 2 displays the value set by the remote control.
On circuit board version 1, a is connected to b as in the diagram above. The
connection between a and b for version 2 is shown on page 35.
The minimum reading can be adjusted by potentiometer R29, while the
maximum reading can be adjusted by potentiometer R43.
The function of potentiometer R1 is described on page 72 and R36 is described
on page 34.
