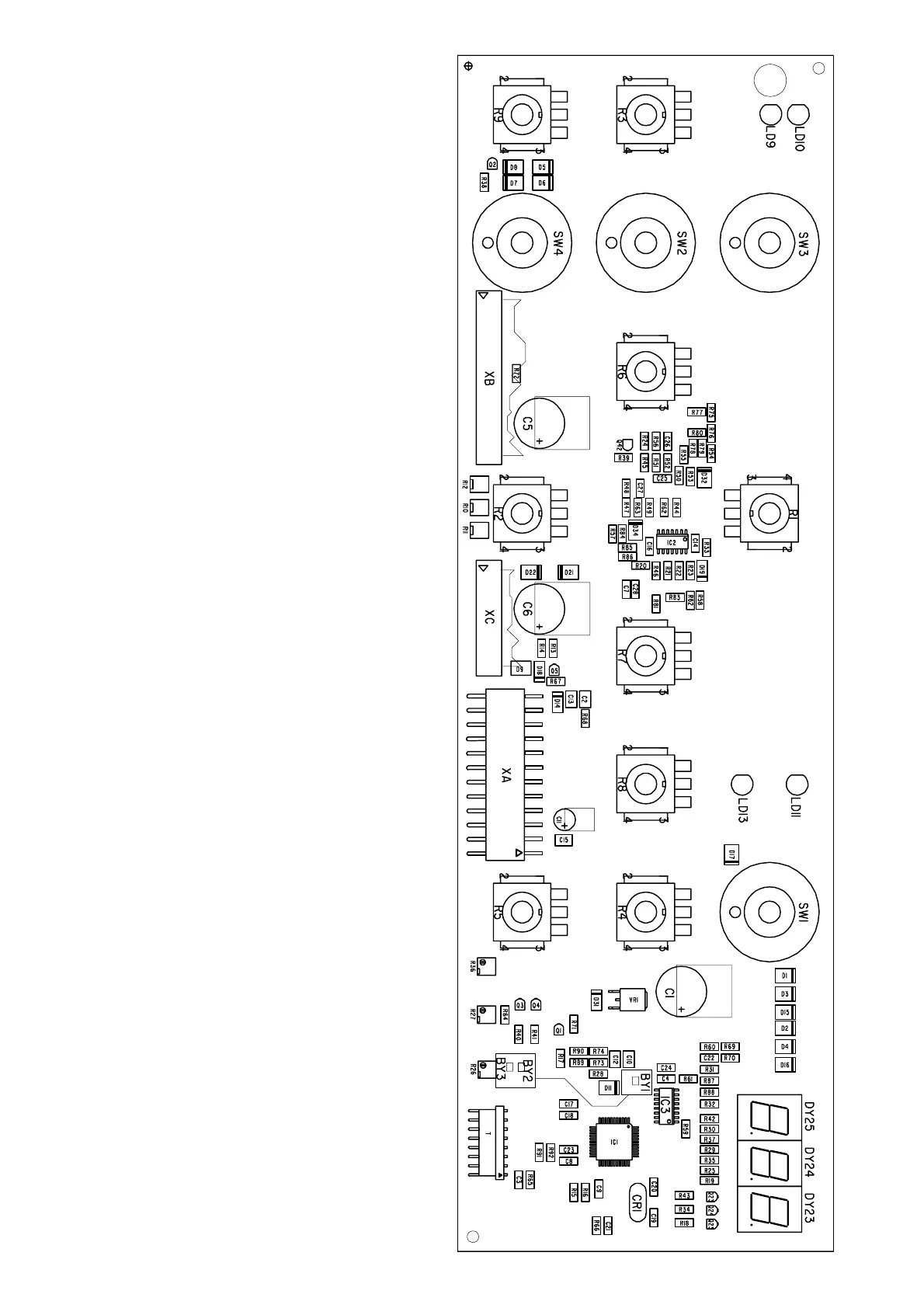

AP05 Version 3, Component positions
-- 4 1 --cdte1de1
Version 3 of circuit board AP05 is used from
serial no. 246--xxx--xxxx
The following changes have been made to
version 3 of the circuit board:
S SMD components are used for most of the
functions.
S New controller device (IC1) with display
driver.
S End current after slope down is set to 5 A by
the software (R11 is removed).
S Potentiometers for calibration of max and
min cur rent added. See page 37.
NOTE: when this version of AP05 is used as
spare part, the machine must be equipped with
the newest version of circuit board AP04,
part no. 0486 770 880
