AP05:3 Analogue settings
Valid for version 1 and 2 of circuit board AP05

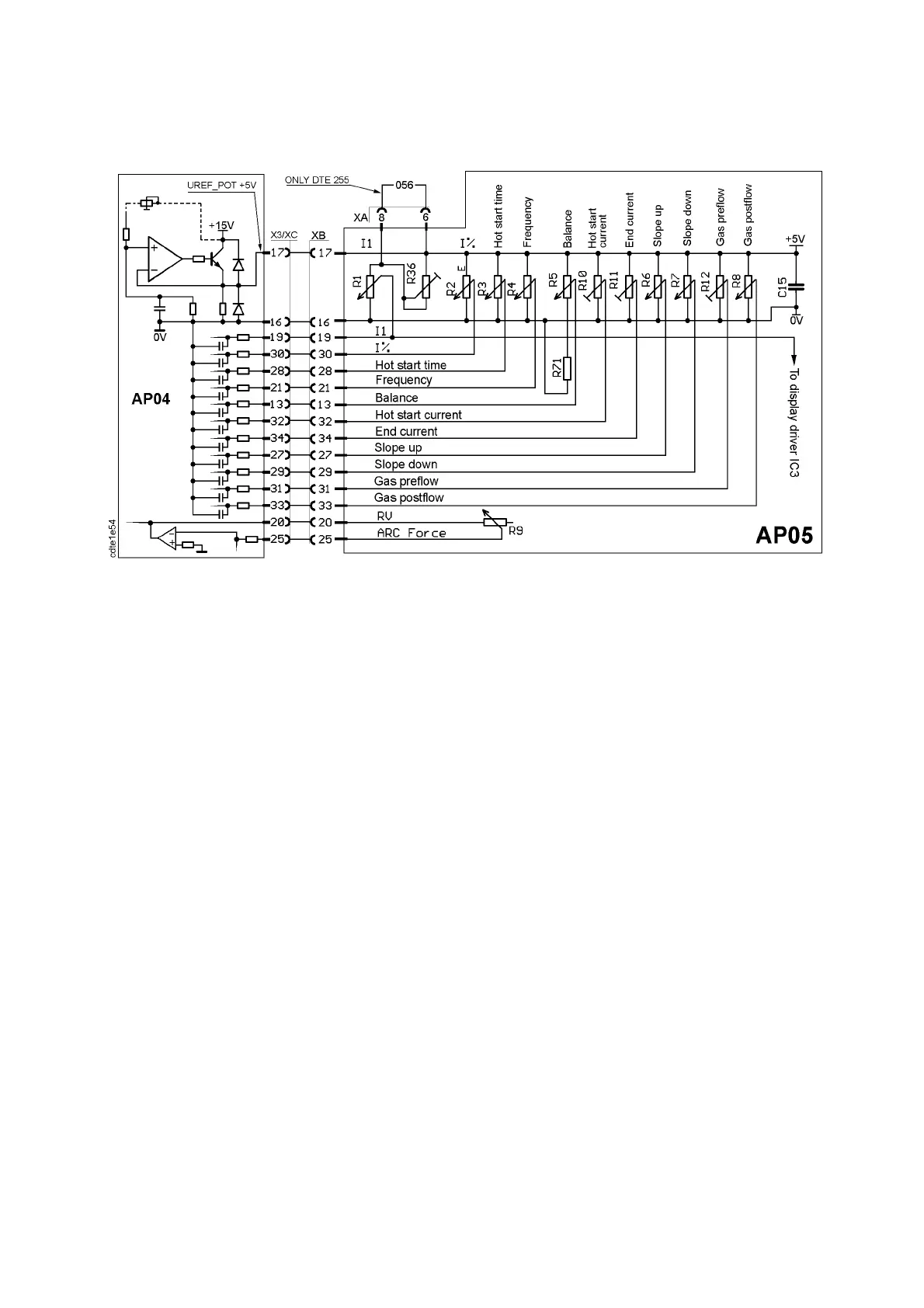

Analogue settings, version 1 of circuit board AP05.
All analogue signals from AP05 to the processor board AP04 are related to a
regulated 5V supply from AP04 (UREF_POT +5V). This voltage has an accuracy
of ±1%. All boards, including spare parts, are adjusted at the factory.
The potentiometers on the front panel are described in the instr uctions on page
72, which also shows their locations.
TRIM POTENTIOMETERS
R10 TIG hotstart current, adjustable between 50 and 200A.
On delivery, the hot start current has been set to 100A.
The hotstart for MMA is set by the processor board, see page 30.
R11 End current after slope down, adjustable between 5 and 55A.
On delivery, the end current has been set to 5A.
R12 Gas preflow time, adjustable between 0 and 5 seconds.
On delivery, the preflow time has been set to 10ms.
R29 Adjustment for the minimum r eading of the display, 5A.
R43 Adjustment for the maximum reading of the display (250A for the
DTE 255 and 200A for the DTE 200).
R36 Is used in the DTE 200 to provide corr ect reading of the 200A range.
XA6 and 8 are bridged in the DTE 255.
