-- 4 3 --cdte1de1
DTE 255 from serial number 844--950--xxxx and all DTE 200:
When using a remote control, the display will show the cur rent set by the remote control.

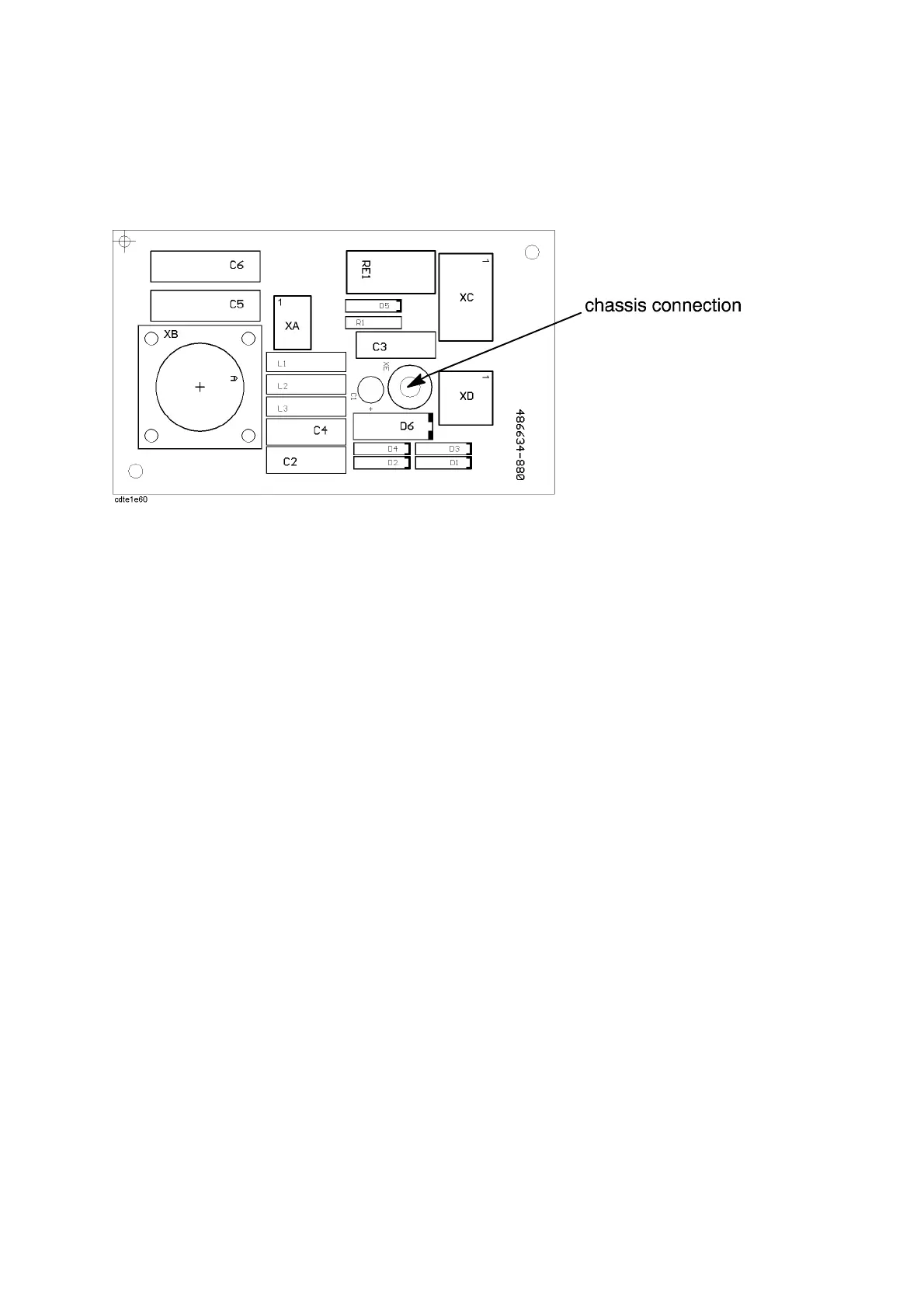

Component positions for circuit board AP06
It is important that the connection shown above is properly connected to the f ront plate of t he
machine and to the chassis connection cable marked 509. If the connection is poor, the
machine will be sensitive to external noise.
The connection point is marked with XE in the diagram on the previous page.
