ESAB EMP 285ic 3ph - RECOMMENDED ELECTRICAL-SUPPLY SPECIFICATIONS

INSTALLATION
5-6

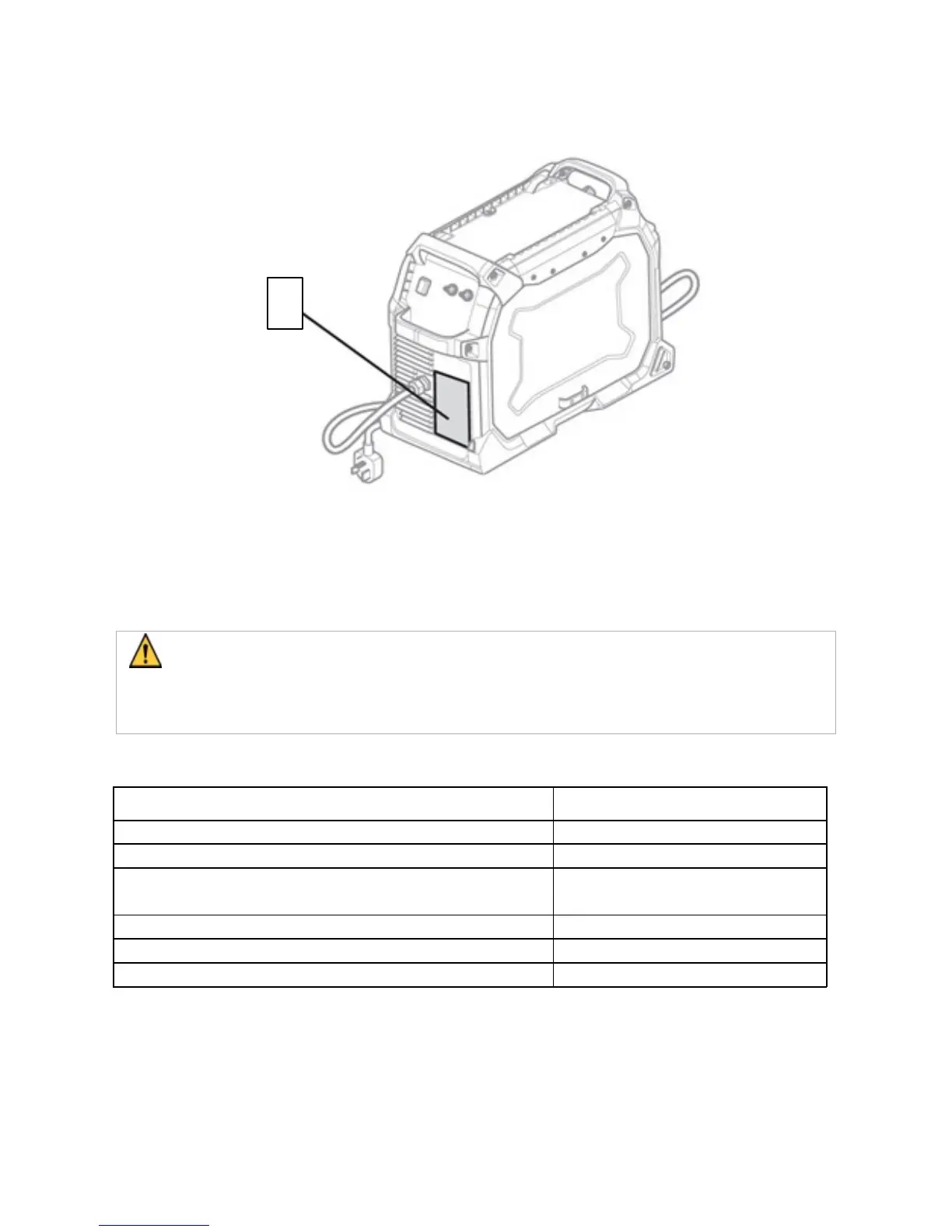

Figure 5-4. Rating plate (1) with supply connection data
5.5 RECOMMENDED ELECTRICAL-SUPPLY SPECIFICATIONS
Table 5-1. Recommended Electrical-Supply Specifications: 1 ph, 50/60 Hz
Specification
Value
Supply ± 10%
120 V or 230 V
Input current at maximum output
43.6A
Maximum recommended fuse* or circuit breaker rating
*Time delay fuse
50A
Minimum recommended cord size
5.3mm2 (10 AWG)
Maximum recommended extension cord length
15 m (50ft)
Minimum recommended grounding conductor size
5.3mm2 (10 AWG)
1
WARNING
An electrical shock or fire hazard is probable if the following electrical service guide
recommendations are not followed. These recommendations are for a dedicated branch circuit
sized for the rated output and duty cycle of the welding power source.
