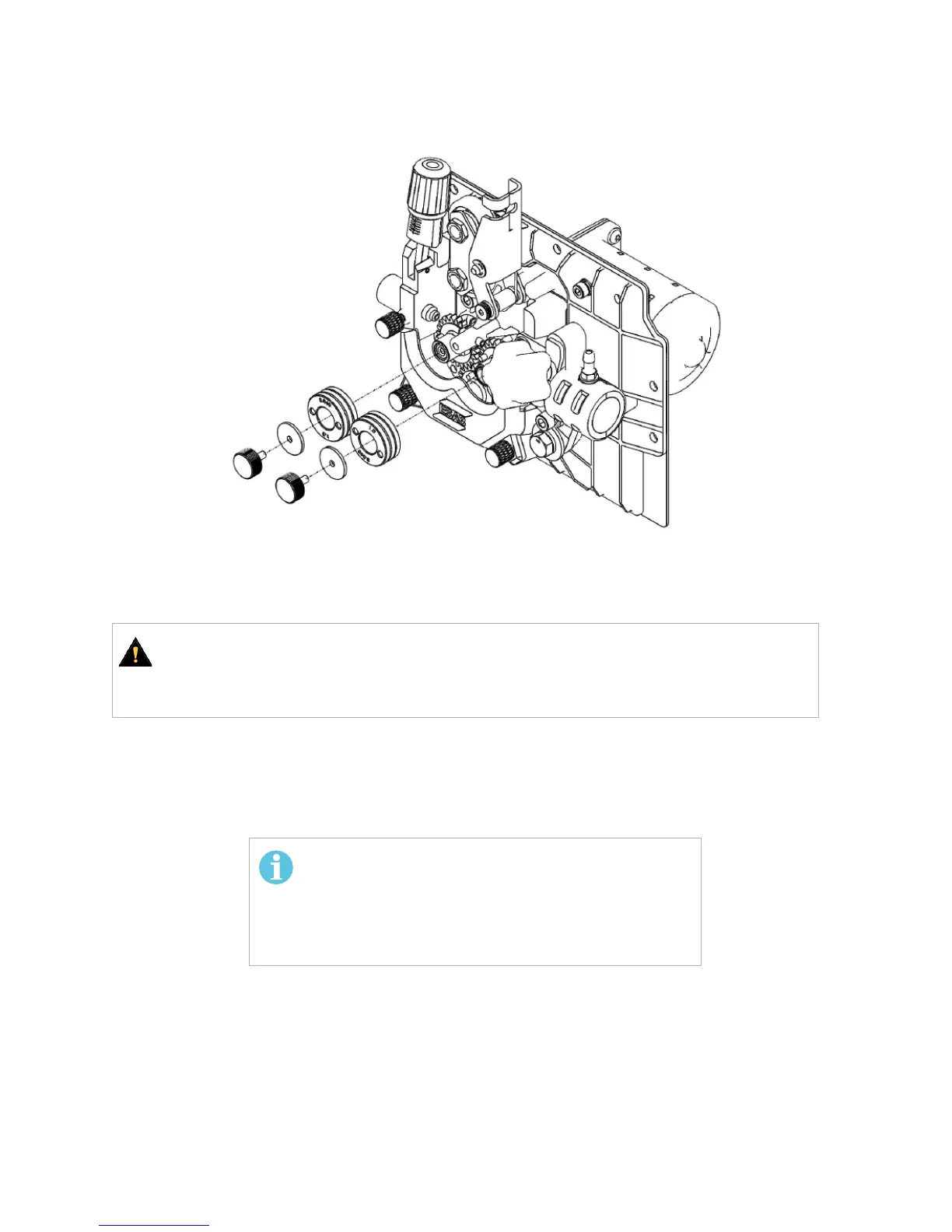

Figure 6-28. Feed Roller Removal and Installation
6.11.2 INSTALLING WIRE-FEED ROLLERS
1. Install the two new Drive Rollers (both the same part number and in the same and
correct grove orientation). Verify that the correct size groove is oriented on the
INSIDE (see Figure 6-29).
CAUTION
When installing the Wire-Feed Rollers avoid (and do not force) installing a roller if either wire
guide’s position interferes. Slide the offending wire guide slightly to provide clearance for the
roller. The wire-guides are adjusted AFTER the rollers are installed.
The wire-feed rollers will either be replaced (so they
correspond with the size and type of the new wire being
installed or reused if the same size and type of wire is
being replaced.
