CONTROL PANEL
7-8

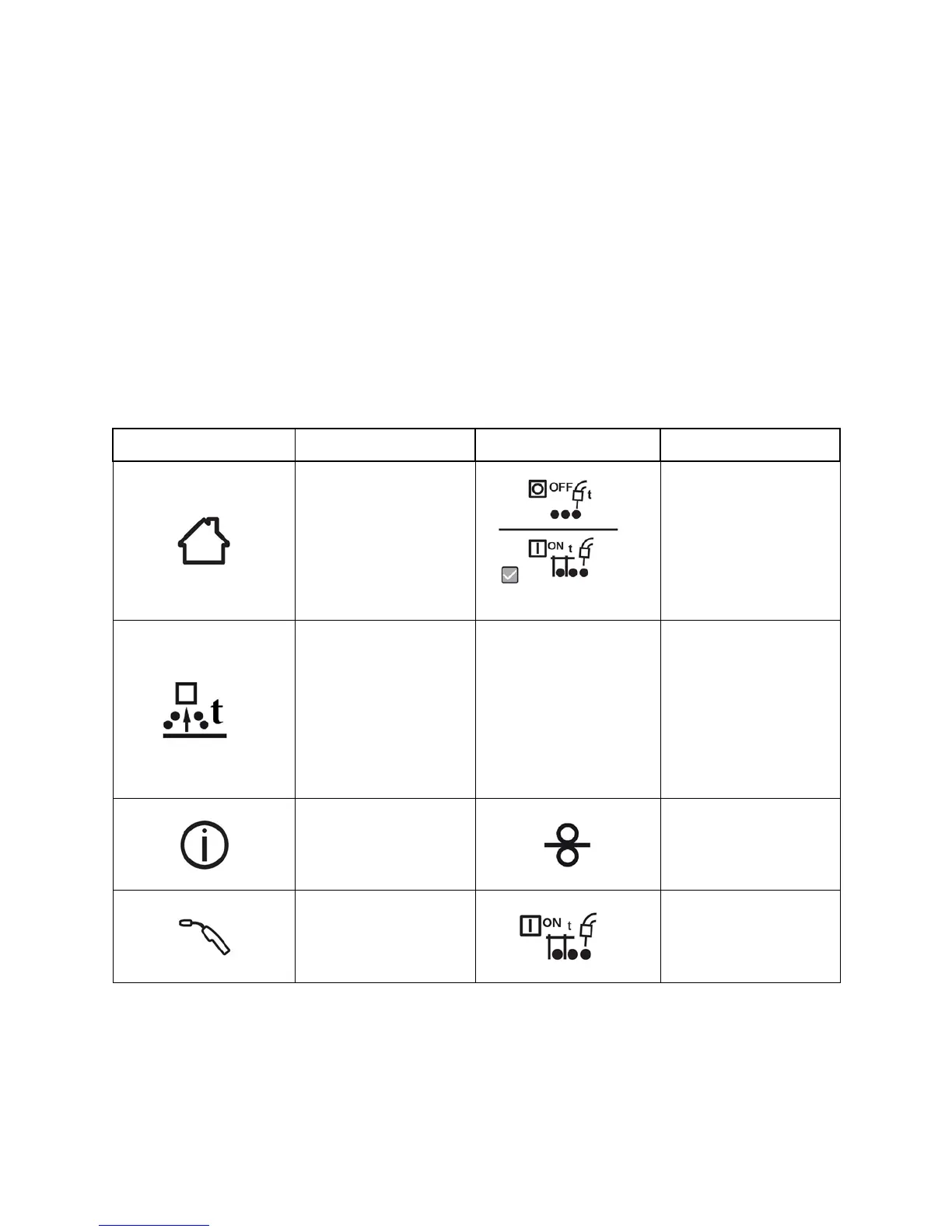

7.15 Icon reference guide
NOTE:
SCT – Short Circuit Termination is a method of automatic burn back at
the end of the weld to electrically cut the wire by pulsing high current in
a controlled process. The result is a nice clean wire end with no balling
or sticking to the weld pool or tip. This allows exceptional restarting of
subsequent welds. This feature is primarily for Mild and Stainless steel
short-arc welding. For spray and flux core welding, traditional burn
back is recommended. When burn back time is set to zero, SCT
automatically is enabled. A non-zero burn back setting will disable SCT
Spot time on/off
selection
(use navigation knob
and push to select
from display)
Burn back
Adjusting the time
when the voltage
stays on after the
wire feed is stopped
to keep the wire
from freezing in the
weld puddle
Short Circuit
Termination (SCT:
see NOTE above)
ON: burnback set to
zero
OFF: burnback set to
non-zero.
