ESAB EMP 285ic 3ph - Removing Wire

OPERATION
6-16
6.8.1 REMOVING WIRE
1. Disconnect the electrical power source from the unit.
2. Open the wire-bobbin side cover of the EMP unit.

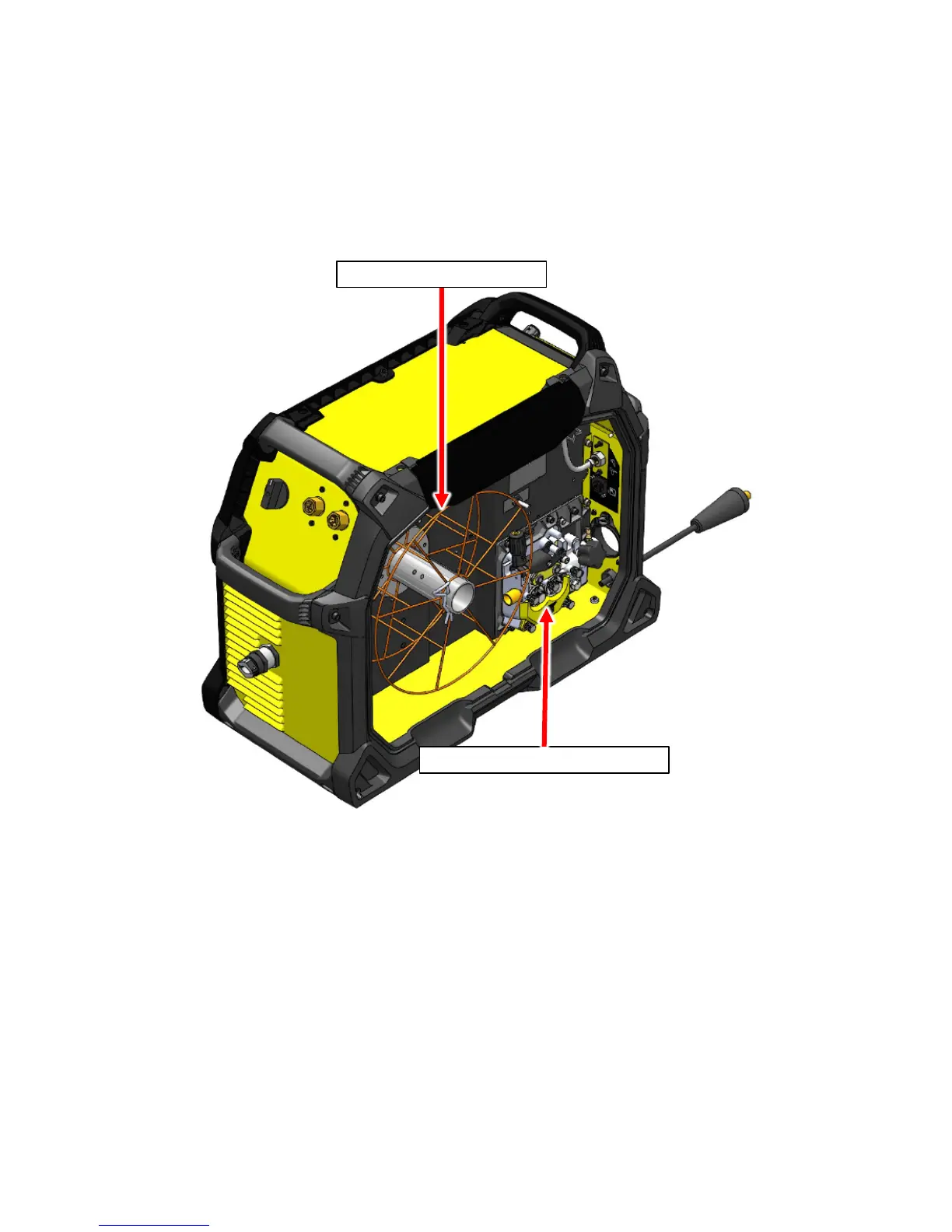

Figure 6-20. Wire-Bobbin Side Exposed View
3. On the Wire-Feed Assembly release the tensioning arm by pulling it up out of its
detent and rotating it toward you (see (1) in Figure 6-21).
QUAD WIRE-FEED ASSEMBLY
WIRE BOBBIN
