ESAB EMP 285ic 3ph - INSTALLATION

INSTALLATION
5-1
SECTION 5 INSTALLATION
The installation must be carried out by a professional.
5.1 LOCATION
Position the power source so that its cooling air inlets and outlets are not obstructed.

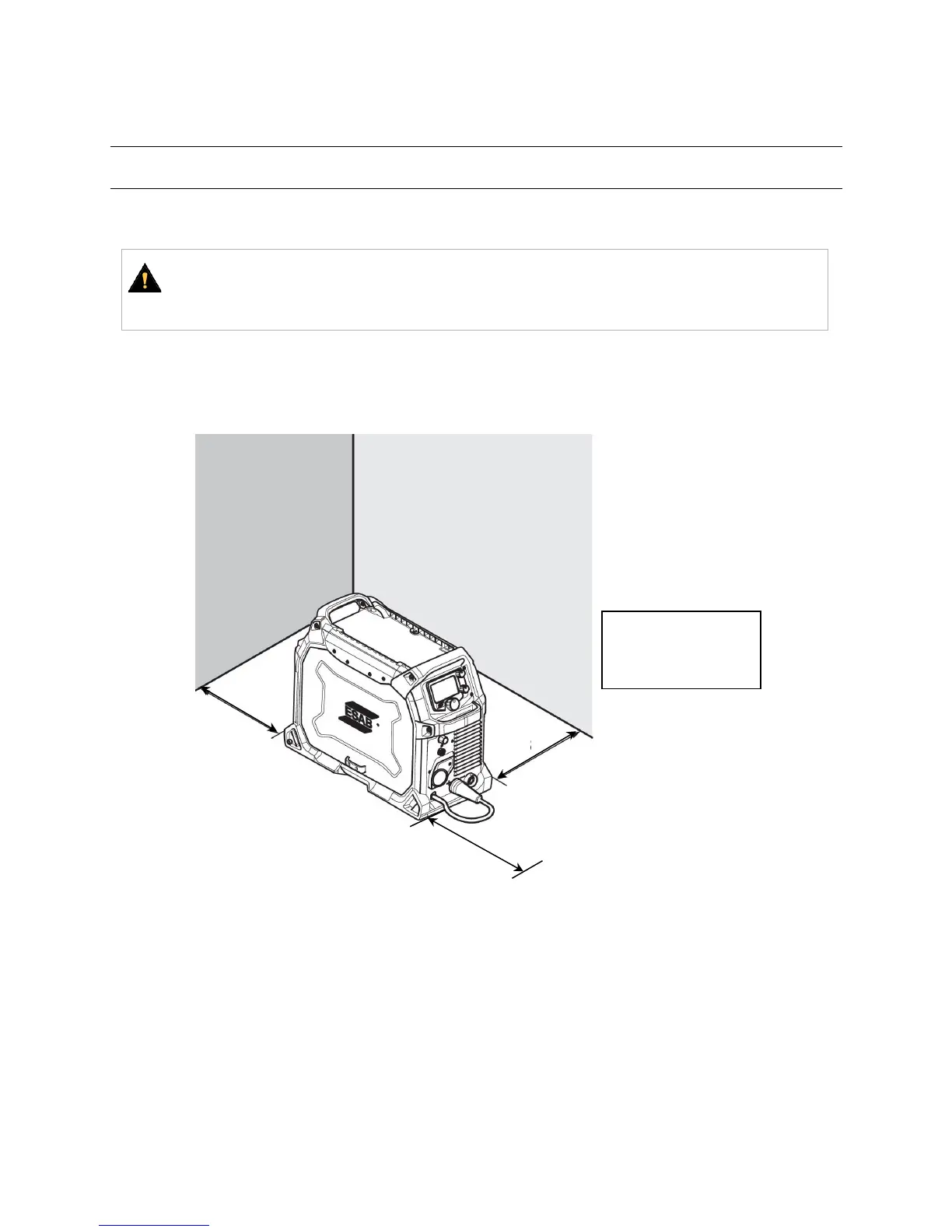

Figure 5-1. Minimum Safe Clearances
CAUTION
This product is intended for industrial use. In a domestic environment this product may cause
radio interference. It is the user’s responsibility to take adequate precautions.
C
B
A
IF PERMANENT
INSTALLATION: LEAVE
ENOUGH ROOM TO OPEN
DOOR AND ACCESS BOBBIN
SIDE.
A. 6 in. (152 mm)
B. 4 in. (100 mm)
C. 6 in. (152 mm)
