ESAB EMP 285ic 3ph - Wear Parts

SPARE PARTS
10-3
10.2 WEAR PARTS
Certain mechanical parts on the wire-feed assembly are subject to more frequent use hence
may wear more frequently. These are exhibited here.

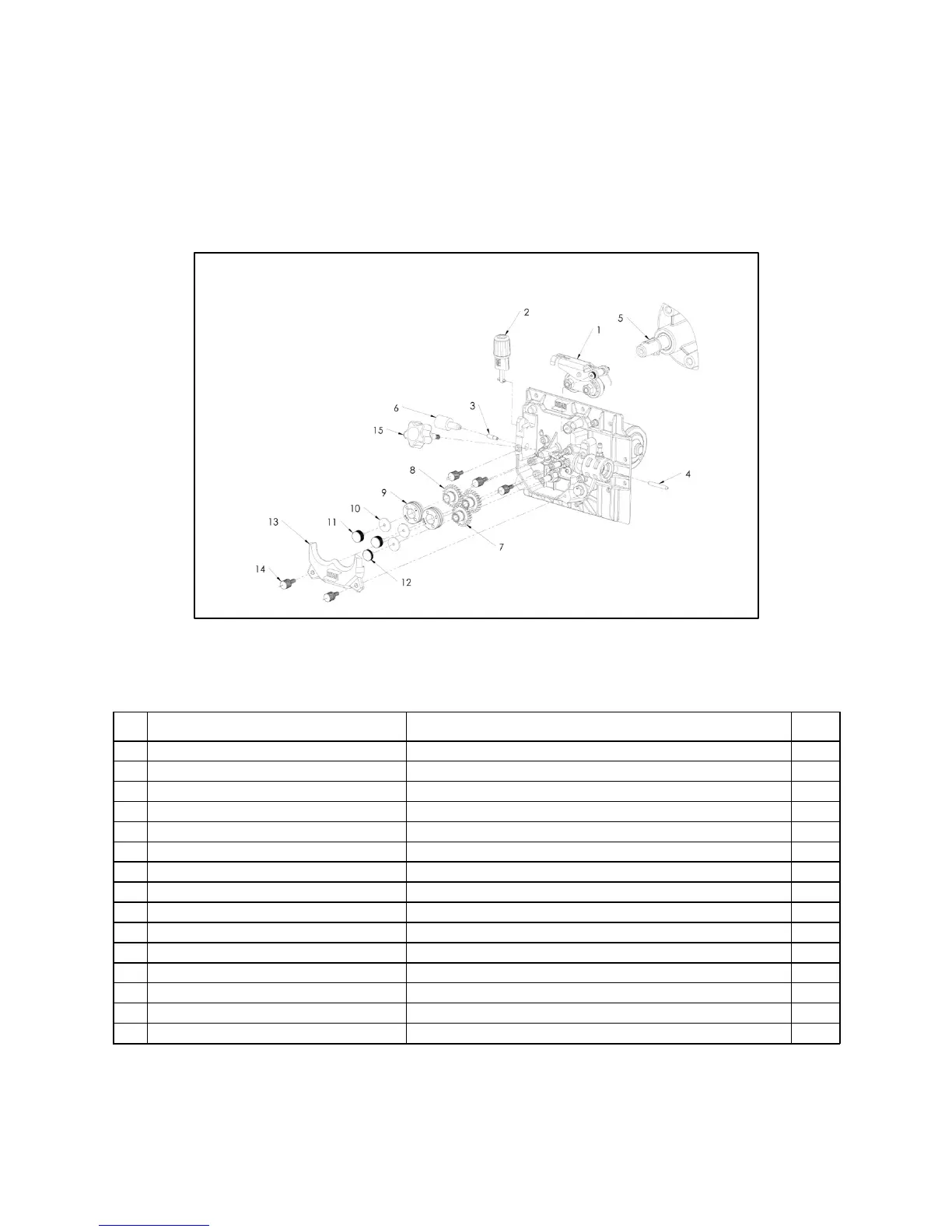

Figure 10-1. Wire-Feed Assembly, Wear-Parts
Table 10-2. Reference for Figure 10-2 Wire-Feed Assembly, Wear-Parts
#
PART #
DESCRIPTION
Qty
1
0558102591
PRESSURE ROLLER ASSEMBLY
1
2
0558102592
TENSION ADJUSTMENT ASSEMBLY
1
3
0558102608
CENTER WIRE-GUIDE TUBE
1
4
(See Appendix C)
OUTPUT WIRE-GUIDE TUBE
1
5
0558102609
MOTOR-GEAR SHAFT WOODRUFF KEY
1
6
0558102597
INLET QUAD WF
1
7
0558102605
DRIVEN GEAR ASSEMBLY
2
8
0558102606
DRIVE GEAR ASSEMBLY
1
9
(See Appendix C)
WIRE-FEED ROLLERS
2
10
0558102600
WASHER FLAT M4 LARGE OD
3
11
0558102601
THUMB SCREW M4 X 10 X 8 KNURLED
2
12
0558102602
THUMB SCREW M4 X 10 X 5 KNURLED
1
13
0558102603
QUAD WF COVER
1
14
0558102604
THUMB SCREW M5 X 14 KNURLED
5
15
0558102625
WIRE DRIVE KNOB, BAYONET
1
