CONTROL PANEL
7-1
SECTION 7 CONTROL PANEL
7.1 HOW TO NAVIGATE
7.2 MAIN MENU
NOTE
After power-on has completed the main menu appears
on the control panel.

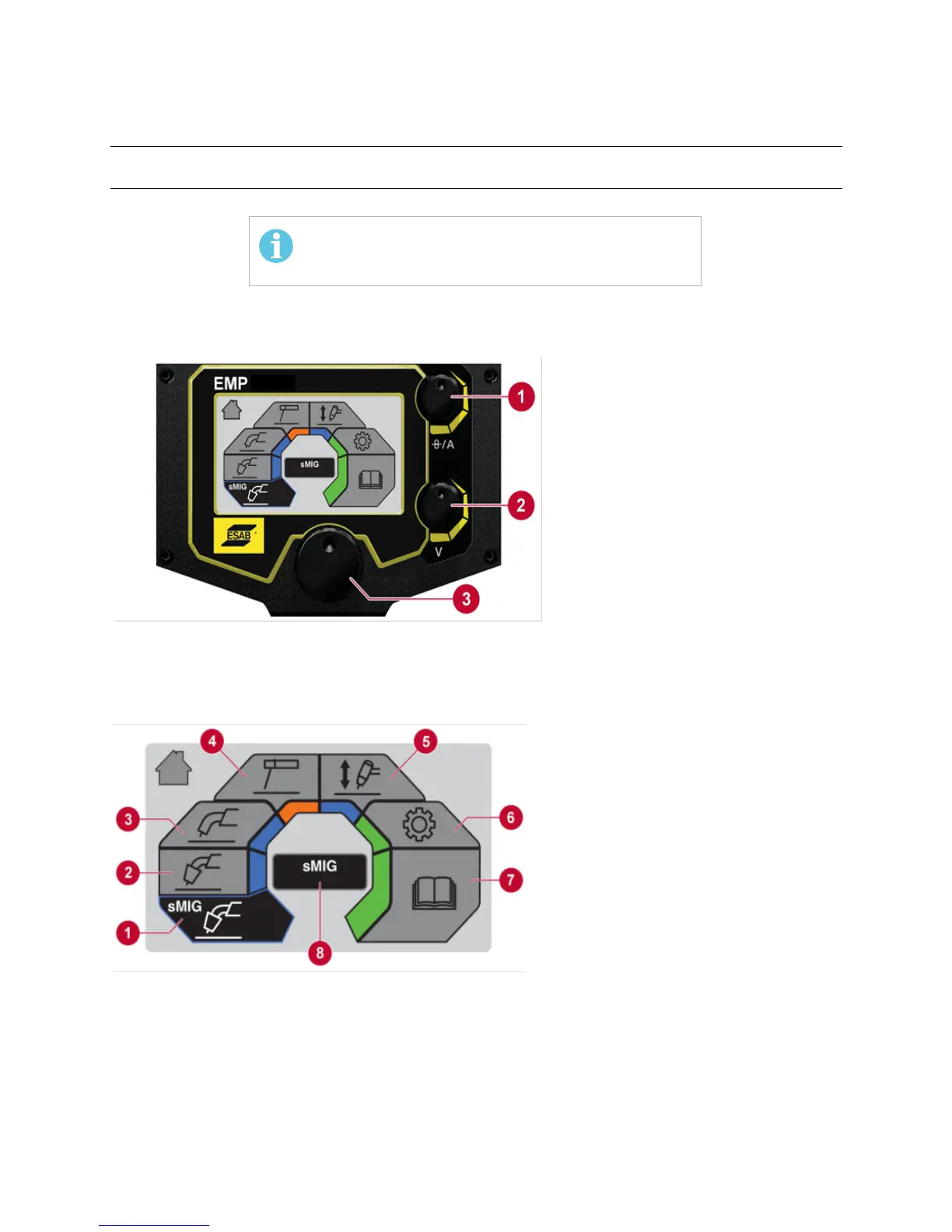

1. (U) UPPER CONTROL KNOB:
a. SET CURRENT OUTPUT
VALUE
b. SET WIRE FEED SPEED
2. (L) LOWER CONTROL KNOB:
a. MIG VOLTAGE SELECTION
b. SMIG VOLTAGE TRIM
c. MMA MODE: ARC ON/OFF
3. (M) MENU NAVIGATION
(PUSH TO SELECT)
(U)
(L)
(M)
1. sMIG MODE
2. MANUAL MIG MODE
3. FLUX-CORED WIRE MODE
4. MMA MODE
5. LIFT-TIG MODE
6. SETTINGS
7. USER MANUAL
8. DIALOGUE BOX
